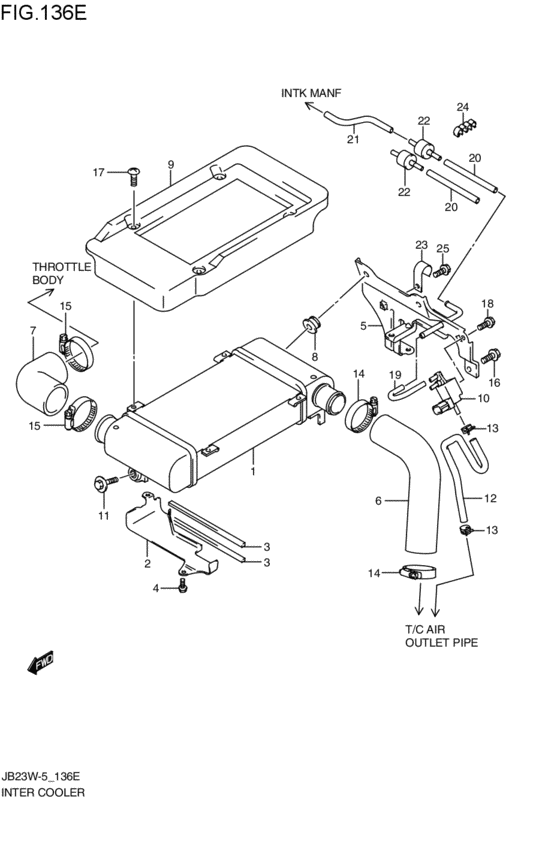

inter-cooler (2004-10-01~2005-10-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XG
- wheel
- STEEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13621-83A01-000
クーラ,インタ
2004-10-01~2005-10-01 |
13621-83A01-000 |
— | ||
|
2
|
2
13625-83A01-000
プレート,インタクーラ
2004-10-01~2005-10-01 |
13625-83A01-000 |
— | ||
|
3
|
3
13626-83A01-000
スポンジ,インタクーラ
2004-10-01~2005-10-01 |
13626-83A01-000 |
— | ||
|
4
|
4
01550-06123-000
Bolt
2004-10-01~2005-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612B-000 BoltBolt, clamp 2004-10-01~2005-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
4
|
4
01550-0612A-000 Bolt2004-10-01~2005-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
13632-83A00-000
ブラケット,インタクーラ,リヤ
2004-10-01~2005-10-01 |
13632-83A00-000 |
— | ||
|
6
|
6
13661-83A00-000
ホース,インタクーラ,インレット
2004-10-01~2005-10-01 |
13661-83A00-000 |
— | ||
|
7
|
7
13662-83A00-000
ホース,インタクーラ,アウトレット
2004-10-01~2005-10-01 |
13662-83A00-000 |
— | ||
|
8
|
8
13723-75F00-000 GROMMET,AIR CLEANER2004-10-01~2005-10-01 |
13723-75F00-000 |
US $1.62 |
||
|
9
|
9
13987-83A01-000
カバー,インタクーラ
2004-10-01~2005-10-01 |
13987-83A01-000 |
— | ||
|
10
|
10
18114-80F00-000 VALVE,ABV CONT2004-10-01~2005-10-01 |
18114-80F00-000 |
US $48 |
||
|
11
|
11
09116-06172-000 BOLT(6X30)Bolt (6x30) 2004-10-01~2005-10-01 |
09116-06172-000 |
from US $1.01 |
||
|
12
|
12
13926-83A00-000
ホース,バキューム
2004-10-01~2005-10-01 |
13926-83A00-000 |
— | ||
|
13
|
13
09401-06405-000 CLIP2004-10-01~2005-10-01 |
09401-06405-000 |
from US $1.12 |
||
|
14
|
14
09402-50511-000 CLAMP2004-10-01~2005-10-01 |
09402-50511-000 |
from US $7.52 |
||
|
15
|
15
09402-57511-000 CLAMP2004-10-01~2005-10-01 |
09402-57511-000 |
from US $6.24 |
||
|
16
|
16
01550-06123-000
Bolt
2004-10-01~2005-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BoltBolt, clamp 2004-10-01~2005-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 Bolt2004-10-01~2005-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
02142-06163-000
Screw
2004-10-01~2005-04-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-0616A-000 SCREW2004-10-01~2005-04-01 |
02142-0616A-000 |
from US $0.76 |
||
|
17
|
17
02142-06203-000
Screw
2005-04-01~2005-10-01 |
02142-06203-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-0620A-000 SCREW2005-04-01~2005-10-01 |
02142-0620A-000 |
from US $0.68 |
||
|
18
|
18
02162-05083-000
Bolt
2004-10-01~2005-10-01 |
02162-05083-000 |
— | ||
| replacement | |||||
|
18
|
18
02162-0508A-000 SCREW2004-10-01~2005-10-01 |
02162-0508A-000 |
from US $2.82 |
||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
L:601>100; 2004-10-01~2005-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)L:601>100; 2004-10-01~2005-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
L:601>100; 2004-10-01~2005-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601)L:601>100; 2004-10-01~2005-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
L:601>140; 2004-10-01~2005-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601)L:601>140; 2004-10-01~2005-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
95569-78040-000 VALVE,CHECKValve, check 2004-10-01~2005-10-01 |
95569-78040-000 |
from US $15.36 |
||
|
23
|
23
18415-65H50-000 Сlamp2004-10-01~2005-10-01 |
18415-65H50-000 |
US $2.10 |
||
|
24
|
24
09408-00035-000 CLIPClamp 2004-10-01~2005-10-01 |
09408-00035-000 |
from US $1.10 |
||
|
25
|
25
01550-06123-000
Bolt
2004-10-01~2005-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BoltBolt, clamp 2004-10-01~2005-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 Bolt2004-10-01~2005-10-01 |
01550-0612A-000 |
from US $0.76 |
||
