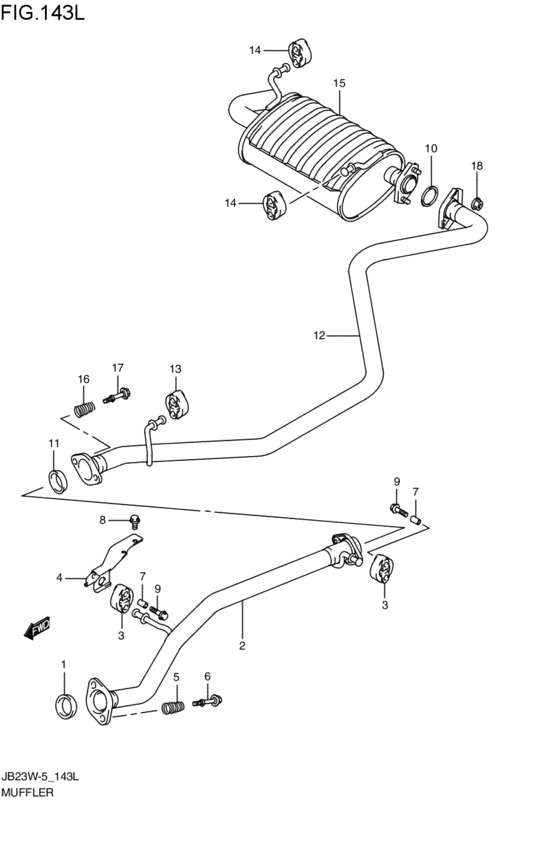

muffler (2004-10-01~2005-10-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XG
- wheel
- STEEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14183-76A00-000 RING,SEAL EXH PIPE2004-10-01~2005-10-01 |
14183-76A00-000 |
from US $12.62 |
||
|
2
|
2
14250-81AB1-000
パイプ,エキゾースト,NO.2
2004-10-01~2005-10-01 |
14250-81AB1-000 |
— | ||
| replacement | |||||
|
2
|
2
14250-81AB2-000
パイプ,エキゾーストNO.2
2004-10-01~2005-10-01 |
14250-81AB2-000 |
— | ||
|
3
|
3
14281-60G01-000 MOUNTING,MUF2004-10-01~2005-10-01 |
14281-60G01-000 |
from US $5.96 |
||
|
4
|
4
14284-84A01-000 BRACKET,EXH PIPE2004-10-01~2005-10-01 |
14284-84A01-000 |
US $9.86 |
||
|
5
|
5
14492-67D00-000 SPRING,EXH PIPE2004-10-01~2005-10-01 |
14492-67D00-000 |
from US $6.21 |
||
|
6
|
6
09119-10041-000 BOLT(10X65)2005-01-01~2005-10-01 |
09119-10041-000 |
from US $5.18 |
||
|
6
|
6
09119-10073-000 BOLT(10X65)2004-10-01~2005-01-01 |
09119-10073-000 |
from US $5.18 |
||
|
7
|
7
09180-08057-000
Spacer
2004-10-01~2005-10-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
7
|
7
09180-08227-000 SPACER(8.2X12.5X23.5)2004-10-01~2005-10-01 |
09180-08227-000 |
from US $1.04 |
||
|
8
|
8
01550-08163-000
Bolt, holder
2004-10-01~2005-10-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0816B-000 Bolt2004-10-01~2005-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
8
|
8
01550-0816A-000 BoltBolt, rear 2004-10-01~2005-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
01550-08353-000
Bolt, rear
2004-10-01~2005-10-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0835B-000 Bolt2004-10-01~2005-10-01 |
01550-0835B-000 |
from US $1.28 |
||
|
9
|
9
01550-0835A-000 Bolt2004-10-01~2005-10-01 |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
14182-60B00-000
GASKET,EXH PIPE
2004-10-01~2005-10-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
10
|
10
14182-60B01-000 Gasket,exh Pipe2004-10-01~2005-10-01 |
14182-60B01-000 |
from US $3.34 |
||
|
11
|
11
14183-76A00-000 RING,SEAL EXH PIPE2004-10-01~2005-10-01 |
14183-76A00-000 |
from US $12.62 |
||
|
12
|
12
14260-81A00-000
MUFFLER
2004-10-01~2005-10-01 |
14260-81A00-000 |
— | ||
| replacement | |||||
|
12
|
12
14260-81A01-000 PIPE,EXH CENTER2004-10-01~2005-10-01 |
14260-81A01-000 |
from US $167.44 |
||
|
13
|
13
14281-60G01-000 MOUNTING,MUF2004-10-01~2005-10-01 |
14281-60G01-000 |
from US $5.96 |
||
|
14
|
14
14281-60G10-000
Mounting,muffler
2004-10-01~2005-10-01 |
14281-60G10-000 |
— | ||
| replacement | |||||
|
14
|
14
14281-60G11-000 MOUNTING,MUFFLER(HS60)2004-10-01~2005-10-01 |
14281-60G11-000 |
from US $4.59 |
||
|
15
|
15
14300-76JA0-000
マフラ
2004-10-01~2005-10-01 |
14300-76JA0-000 |
— | ||
| replacement | |||||
|
15
|
15
14300-76JA3-000
New Genuine Part
2004-10-01~2005-10-01 |
14300-76JA3-000 |
— | ||
|
16
|
16
14492-67D00-000 SPRING,EXH PIPE2004-10-01~2005-10-01 |
14492-67D00-000 |
from US $6.21 |
||
|
17
|
17
09119-10041-000 BOLT(10X65)2004-10-01~2005-10-01 |
09119-10041-000 |
from US $5.18 |
||
|
18
|
18
09159-10049-000 Nut2004-10-01~2005-10-01 |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
18
|
18
09159-10102-000 NUT2004-10-01~2005-10-01 |
09159-10102-000 |
from US $1.28 |
||
