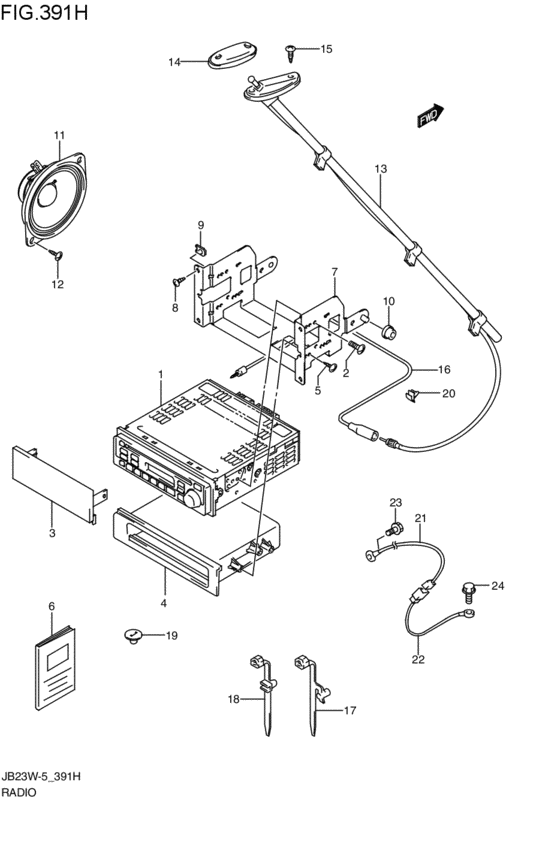

radio (2004-10-01~2005-10-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XG
- wheel
- STEEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
39161-74G00-000 COVER,RADIO HOLEXG; 2004-10-01~2005-10-01 |
39161-74G00-000 |
US $8.65 |
||
|
4
|
4
39182-70E51-000 POCKET,TUNER2004-10-01~2005-10-01 |
39182-70E51-000 |
from US $13.93 |
||
|
5
|
5
03242-05123-000
Screw, inner cover
2004-10-01~2005-10-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0512A-000 SCREW2004-10-01~2005-10-01 |
03241-0512A-000 |
from US $0.68 |
||
|
7
|
7
39321-76J00-000 BRACKET,TUNER2004-10-01~2005-10-01 |
39321-76J00-000 |
US $11.04 |
||
|
8
|
8
03142-05123-000
Screw
2004-10-01~2005-10-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0512A-000 SCREWScrew, belt cooling duct 2004-10-01~2005-10-01 |
03141-0512A-000 |
from US $0.76 |
||
|
9
|
9
09148-05045-000 NUT2004-10-01~2005-10-01 |
09148-05045-000 |
from US $0.79 |
||
|
10
|
10
34955-54G10-000 BUSH,RADIO BRKT2004-10-01~2005-10-01 |
34955-54G10-000 |
from US $0.88 |
||
|
14
|
14
39262-81A20-000 COVER,ANTENNA HOLEXG; 2004-10-01~2005-10-01 |
39262-81A20-000 |
US $14.14 |
||
|
15
|
15
09129-04003-000 SCREW(4X12)2004-10-01~2005-10-01 |
09129-04003-000 |
US $1.60 |
||
|
19
|
19
09148-05042-000 CLIPXG; 2004-10-01~2005-10-01 |
09148-05042-000 |
US $1.12 |
||
|
20
|
20
09403-05311-000 CLAMP2004-10-01~2005-10-01 |
09403-05311-000 |
US $14.40 |
||
|
21
|
21
39312-65D00-000 WIRE,NOISE SUPPR2004-10-01~2005-10-01 |
39312-65D00-000 |
US $3.90 |
||
|
22
|
22
39312-60B11-000
WIRENOISE SUPPRNO1
2004-10-01~2005-10-01 |
39312-60B11-000 |
— | ||
| replacement | |||||
|
22
|
22
39312-60G00-000 WIRE,NOISE SUPPR2004-10-01~2005-10-01 |
39312-60G00-000 |
from US $3.44 |
||
|
23
|
23
09115-06001-000 Bolt, lhBolt (6x16) 2004-10-01~2005-10-01 |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
23
|
23
09115-06005-000 BOLT(6X16)2004-10-01~2005-10-01 |
09115-06005-000 |
from US $0.86 |
||
|
24
|
24
01550-06123-000
Bolt
2004-10-01~2005-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BoltBolt, clamp 2004-10-01~2005-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 Bolt2004-10-01~2005-10-01 |
01550-0612A-000 |
from US $0.76 |
||
