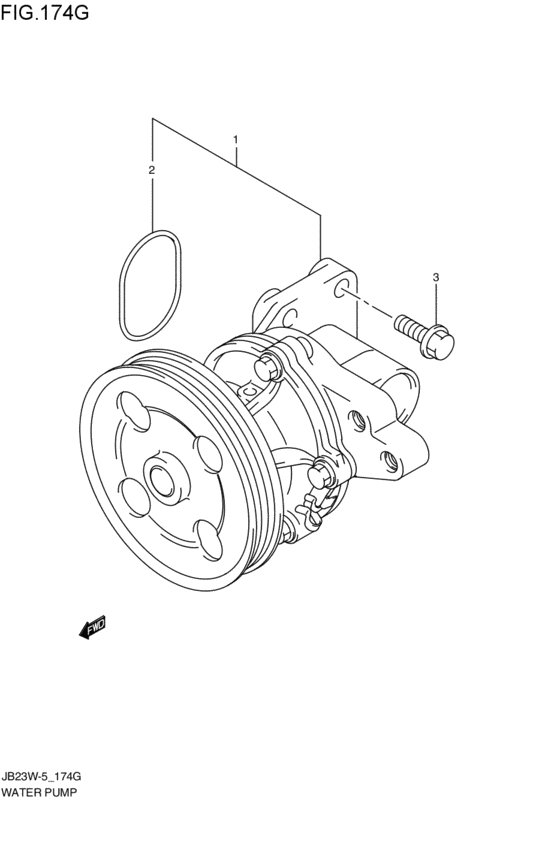

water pump (2004-10-01~2005-10-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XG
- wheel
- STEEL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-76840-000
ポンプセット,ウォータ
2004-10-01~2005-07-01 |
17400-76840-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-76845-000 PUMP SET,WATER2004-10-01~2005-07-01 |
17400-76845-000 |
US $140.58 |
||
|
1
|
1
17400-76841-000
ポンプセット,ウォータ
2005-07-01~2005-10-01 |
17400-76841-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-76845-000 PUMP SET,WATER2005-07-01~2005-10-01 |
17400-76845-000 |
US $140.58 |
||
|
2
|
2
17611-73G01-000
O ring,water pump
2004-10-01~2005-10-01 |
17611-73G01-000 |
— | ||
| replacement | |||||
|
2
|
2
17611-73G03-000 O-RING,WATER PUMP2004-10-01~2005-10-01 |
17611-73G03-000 |
from US $4.95 |
||
|
3
|
3
01550-08303-000
Bolt
2004-10-01~2005-10-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830B-000 Bolt2004-10-01~2005-10-01 |
01550-0830B-000 |
from US $1.06 |
||
|
3
|
3
01550-0830A-000 BoltBolt, mount oil seal cover 2004-10-01~2005-10-01 |
01550-0830A-000 |
from US $1.06 |
||
