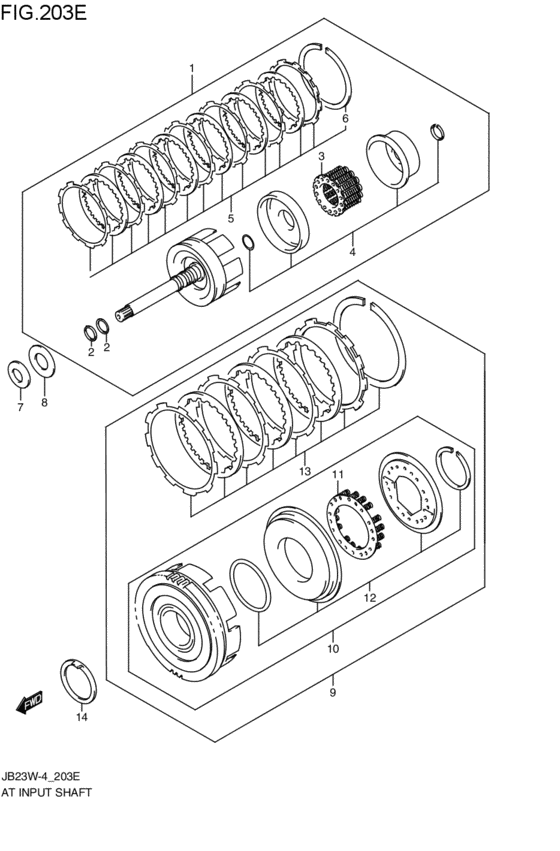

at - input shaft (AT; 2001-12-01~2004-09-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XGF
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-81A71-000
クラッチアッシ,リヤ
AT; 2001-12-01~2004-09-01 |
24100-81A71-000 |
— | ||
| replacement | |||||
|
1
|
1
24100-81A72-000 CLUTCH ASSY,RRAT; 2001-12-01~2004-09-01 |
24100-81A72-000 |
US $665.28 |
||
|
2
|
2
24115-75F10-000 RING,INPUT SHAFT SEALAT; 2001-12-01~2004-09-01 |
24115-75F10-000 |
from US $5.60 |
||
|
3
|
3
26660-81A10-000 SEAT ASSY,REAR CLUTCH RTNAT; 2001-12-01~2004-09-01 |
26660-81A10-000 |
from US $10.06 |
||
|
4
|
4
26621-81AT0-000 PISTON SET,REAR CLUTCHAT; 2001-12-01~2004-09-01 |
26621-81AT0-000 |
US $73.42 |
||
|
5
|
5
26611-81AU1-000 DISC SET,RR CLUTCHAT; 2001-12-01~2004-09-01 |
26611-81AU1-000 |
US $283.36 |
||
|
6
|
6
24161-75F10-000 RING,FR RING GR SNAPAT; 2001-12-01~2004-09-01 |
24161-75F10-000 |
US $5.12 |
||
|
7
|
7
24114-75F10-000 BEARING,INPUT SHAFT THRUSTAT; 2001-12-01~2004-09-01 |
24114-75F10-000 |
from US $22.68 |
||
|
8
|
8
24971-75F10-000 RACE,FR PLNTY RING GEAR NO.1AT; 2001-12-01~2004-09-01 |
24971-75F10-000 |
from US $2.61 |
||
|
8
|
8
24972-75F10-000 RACE,FR PLNTY RING GEAR NO.2AT; 2001-12-01~2004-09-01 |
24972-75F10-000 |
from US $3.51 |
||
|
8
|
8
24973-75F10-000 RACE,FR PLNTY RING GEAR NO.3AT; 2001-12-01~2004-09-01 |
24973-75F10-000 |
from US $3.51 |
||
|
9
|
9
26630-81A10-000 CLUTCH ASSY,FRAT; 2001-12-01~2004-09-01 |
26630-81A10-000 |
from US $315.09 |
||
|
10
|
10
26631-81AT0-000
ドラムセット,フロントクラッチ
AT; 2001-12-01~2004-09-01 |
26631-81AT0-000 |
— | ||
| replacement | |||||
|
10
|
10
26631-81AT1-000 DRUM SET,FR CLUTCHAT; 2001-12-01~2004-09-01 |
26631-81AT1-000 |
US $206.08 |
||
|
11
|
11
26641-75F10-000 SPRING ASSY,FRONT CLUTCH RTNAT; 2001-12-01~2004-09-01 |
26641-75F10-000 |
from US $13.61 |
||
|
12
|
12
26642-75FT0-000 PISTON SET,FRONT CLUTCHAT; 2001-12-01~2004-09-01 |
26642-75FT0-000 |
from US $75.71 |
||
|
13
|
13
26633-81AT0-000 DISC SET,FR CLUTCHAT; 2001-12-01~2004-09-01 |
26633-81AT0-000 |
from US $169.02 |
||
|
14
|
14
26637-75F10-000 WASHER,FR CLUTCH DRUMAT; 2001-12-01~2004-09-01 |
26637-75F10-000 |
from US $1.73 |
||
