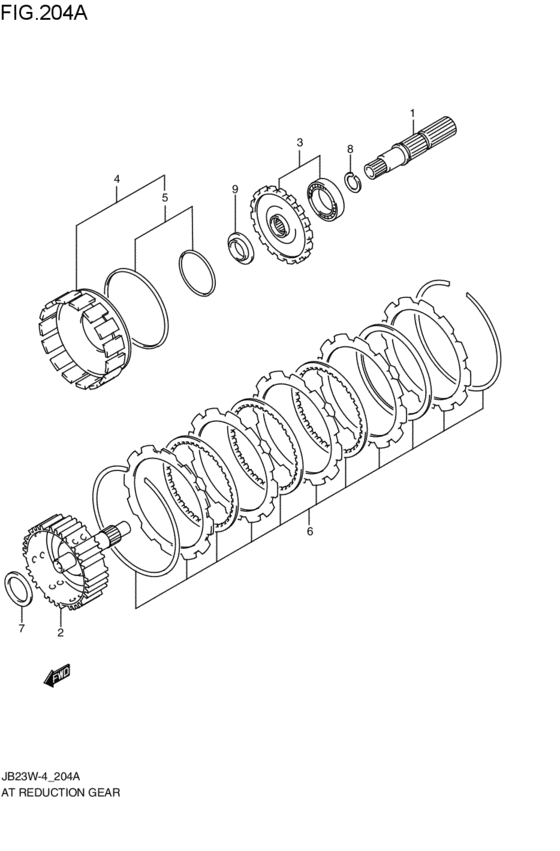

at - reduction gear (AT; 2001-12-01~2004-09-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XGF
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24120-63H30-000
シャフトアッシ,アウトプツト
AT; 2001-12-01~2004-09-01 |
24120-63H30-000 |
— | ||
| replacement | |||||
|
1
|
1
24120-63H31-000
SHAFT,OUTPUT
AT; 2001-12-01~2004-09-01 |
24120-63H31-000 |
— | ||
|
2
|
2
24145-81A10-000 SHAFT ASSY,INTERMEDIATEAT; 2001-12-01~2004-09-01 |
24145-81A10-000 |
from US $156.74 |
||
|
3
|
3
24180-81A10-000
GEAR ASSY,PARKING LOCK
AT; 2001-12-01~2004-09-01 |
24180-81A10-000 |
— | ||
|
4
|
4
26841-81AT1-000 PISTON SET,REV BKAT; 2001-12-01~2004-09-01 |
26841-81AT1-000 |
from US $75.83 |
||
|
5
|
5
26843-81AT0-000 O-RING SET,REV BK PISTONAT; 2001-12-01~2004-09-01 |
26843-81AT0-000 |
from US $7.27 |
||
|
6
|
6
26811-64HT0-000 DISC SET,REV BKAT; 2001-12-01~2004-09-01 |
26811-64HT0-000 |
from US $244.62 |
||
|
7
|
7
24147-81A10-000 BEARING,INTERMEDIATEAT; 2001-12-01~2004-09-01 |
24147-81A10-000 |
US $15.84 |
||
|
8
|
8
24124-81C00-000 RING,PARKING LOCK SNAPAT; 2001-12-01~2004-09-01 |
24124-81C00-000 |
from US $1.62 |
||
|
9
|
9
24943-75F10-000 BEARING,RR PLNTY THRUSTAT; 2001-12-01~2004-09-01 |
24943-75F10-000 |
US $22.19 |
||
