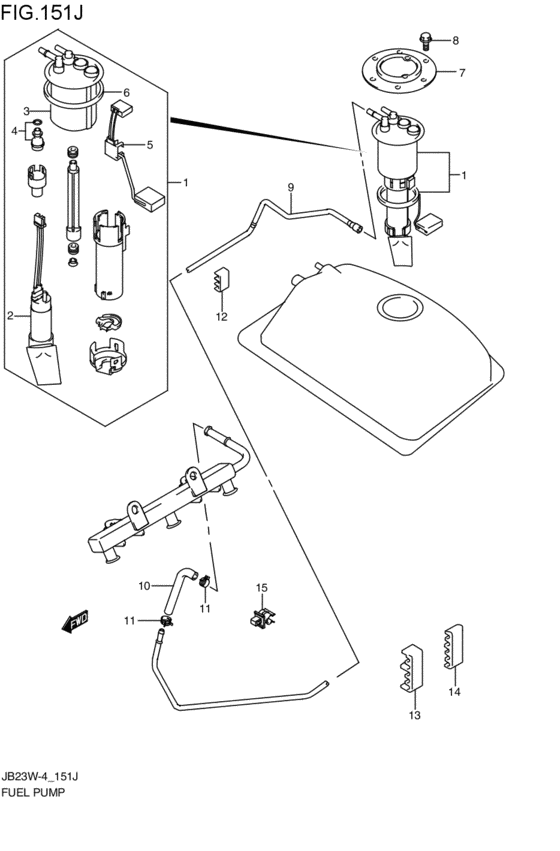

Fuel Pump (2001-12-01~2004-09-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XGF
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-81821-000
ポンプセット,フューエル
2001-12-01~2004-08-01 |
15100-81821-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-81822-000
Fuel Pump Assy
2001-12-01~2004-08-01 |
15100-81822-000 |
— | ||
|
1
|
1
15100-81822-000
Fuel Pump Assy
2004-09-01~2004-09-01 |
15100-81822-000 |
— | ||
|
2
|
2
15110-81A00-000 PUMP ASSY,FUEL2001-12-01~2004-09-01 |
15110-81A00-000 |
from US $399.35 |
||
|
3
|
3
15310-81AA0-000
フィルタアッシ,フューエル
2001-12-01~2004-08-01 |
15310-81AA0-000 |
— | ||
| replacement | |||||
|
3
|
3
15310-81AA1-000 FILTER ASSY,FUEL2001-12-01~2004-08-01 |
15310-81AA1-000 |
US $263.12 |
||
|
3
|
3
15310-81AA1-000 FILTER ASSY,FUEL2004-09-01~2004-09-01 |
15310-81AA1-000 |
US $263.12 |
||
|
4
|
4
15610-76G50-000 REGULATOR ASSY,FUEL2001-12-01~2004-09-01 |
15610-76G50-000 |
from US $51.37 |
||
|
5
|
5
34810-81A00-000 GAUGE ASSY,FUEL LEVEL2001-12-01~2004-09-01 |
34810-81A00-000 |
from US $78.41 |
||
|
6
|
6
15111-50G01-000 GASKET,FUEL PUMP2001-12-01~2004-09-01 |
15111-50G01-000 |
US $4.82 |
||
|
7
|
7
15121-50G00-000 PLATE,FUEL PUMP2001-12-01~2004-09-01 |
15121-50G00-000 |
from US $6.26 |
||
|
8
|
8
02162-06103-000
Bolt
2001-12-01~2004-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREW2001-12-01~2004-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15820-81A02-000 PIPE,FUEL FEED2001-12-01~2004-09-01 |
15820-81A02-000 |
from US $48.87 |
||
|
10
|
10
15824-83A00-000
ホース,フューエル(パイプツーエンジン)
パイプ ツー エンジン; 2001-12-01~2004-09-01 |
15824-83A00-000 |
— | ||
|
11
|
11
09401-13419-000 CLIP2001-12-01~2004-09-01 |
09401-13419-000 |
from US $1.76 |
||
|
12
|
12
15893-60A11-000 CLAMP,FUEL PIPE2001-12-01~2004-09-01 |
15893-60A11-000 |
from US $1.15 |
||
|
13
|
13
15895-56B11-000 CLAMP,FUEL PIPE2001-12-01~2004-09-01 |
15895-56B11-000 |
from US $2.16 |
||
|
14
|
14
15895-60A11-000 CLAMP,FUEL PIPE2001-12-01~2004-09-01 |
15895-60A11-000 |
from US $1.87 |
||
|
15
|
15
09403-13307-000 CLAMP2001-12-01~2004-09-01 |
09403-13307-000 |
from US $1.01 |
||
