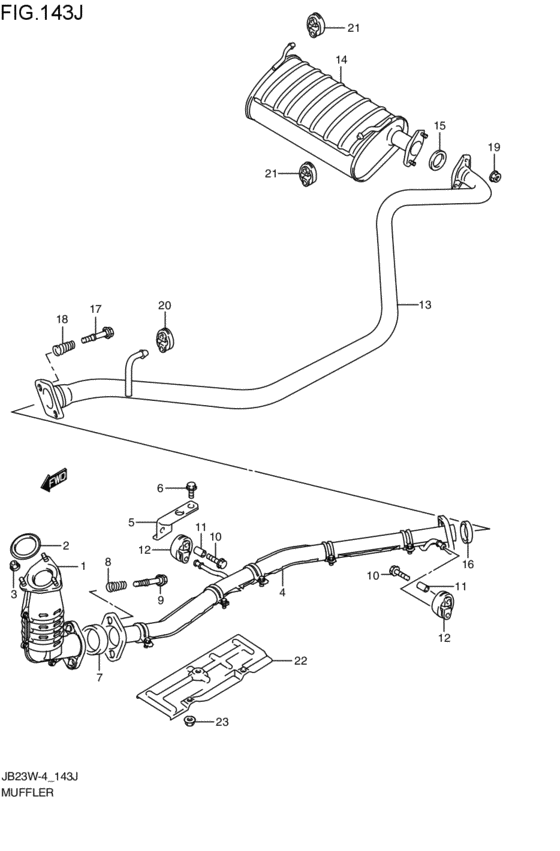

muffler (2001-12-01~2004-09-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XGF
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-83A01-000
パイプ,エキゾースト,N0.1
2001-12-01~2004-09-01 |
14190-83A01-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-83A0V-000
パイプ,エキゾースト,N0.1
2001-12-01~2004-09-01 |
14190-83A0V-000 |
— | ||
|
2
|
2
14184-65D00-000 GASKET,EXH PIPE2001-12-01~2004-09-01 |
14184-65D00-000 |
from US $10.17 |
||
|
3
|
3
09159-10049-000 Nut2001-12-01~2004-09-01 |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
3
|
3
09159-10102-000 NUT2001-12-01~2004-09-01 |
09159-10102-000 |
from US $1.28 |
||
|
4
|
4
14250-81AB1-000
パイプ,エキゾースト,NO.2
2001-12-01~2004-09-01 |
14250-81AB1-000 |
— | ||
| replacement | |||||
|
4
|
4
14250-81AB2-000
パイプ,エキゾーストNO.2
2001-12-01~2004-09-01 |
14250-81AB2-000 |
— | ||
|
5
|
5
14284-81A10-000
BRACKET,EXH PIPE
2001-12-01~2004-09-01 |
14284-81A10-000 |
— | ||
|
6
|
6
02162-06123-000
Bolt (6x12)
2001-12-01~2004-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02162-0612B-000 SCREWBolt 2001-12-01~2004-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
6
|
6
02162-0612A-000 SCREWBolt, bracket 2001-12-01~2004-09-01 |
02162-0612A-000 |
from US $0.79 |
||
|
7
|
7
14183-76A00-000 RING,SEAL EXH PIPE2001-12-01~2004-09-01 |
14183-76A00-000 |
from US $12.62 |
||
|
8
|
8
14492-67D00-000 SPRING,EXH PIPE2001-12-01~2004-09-01 |
14492-67D00-000 |
from US $6.21 |
||
|
9
|
9
09119-10041-000 BOLT(10X65)2001-12-01~2004-09-01 |
09119-10041-000 |
from US $5.18 |
||
|
10
|
10
01550-08353-000
Bolt, rear
2001-12-01~2004-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0835B-000 Bolt2001-12-01~2004-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
10
|
10
01550-0835A-000 Bolt2001-12-01~2004-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
09180-08057-000
Spacer
2001-12-01~2004-09-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
11
|
11
09180-08227-000 SPACER(8.2X12.5X23.5)2001-12-01~2004-09-01 |
09180-08227-000 |
from US $1.04 |
||
|
12
|
12
14281-60G01-000 MOUNTING,MUF2001-12-01~2004-09-01 |
14281-60G01-000 |
from US $5.96 |
||
|
13
|
13
14260-81A00-000
MUFFLER
2001-12-01~2004-09-01 |
14260-81A00-000 |
— | ||
| replacement | |||||
|
13
|
13
14260-81A01-000 PIPE,EXH CENTER2001-12-01~2004-09-01 |
14260-81A01-000 |
from US $167.44 |
||
|
14
|
14
14300-81AA1-000
マフラ
2001-12-01~2004-09-01 |
14300-81AA1-000 |
— | ||
| replacement | |||||
|
14
|
14
14300-81AAV-000 マフラ2001-12-01~2004-09-01 |
14300-81AAV-000 |
US $398.94 |
||
|
15
|
15
14182-60B00-000
GASKET,EXH PIPE
2001-12-01~2004-09-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
15
|
15
14182-60B01-000 Gasket,exh Pipe2001-12-01~2004-09-01 |
14182-60B01-000 |
from US $3.34 |
||
|
16
|
16
14183-76A00-000 RING,SEAL EXH PIPE2001-12-01~2004-09-01 |
14183-76A00-000 |
from US $12.62 |
||
|
17
|
17
09119-10041-000 BOLT(10X65)2001-12-01~2004-09-01 |
09119-10041-000 |
from US $5.18 |
||
|
18
|
18
14492-67D00-000 SPRING,EXH PIPE2001-12-01~2004-09-01 |
14492-67D00-000 |
from US $6.21 |
||
|
19
|
19
09159-10049-000 Nut2001-12-01~2004-09-01 |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
19
|
19
09159-10102-000 NUT2001-12-01~2004-09-01 |
09159-10102-000 |
from US $1.28 |
||
|
20
|
20
14281-60G01-000 MOUNTING,MUF2001-12-01~2004-09-01 |
14281-60G01-000 |
from US $5.96 |
||
|
21
|
21
14281-60G10-000
Mounting,muffler
2001-12-01~2004-09-01 |
14281-60G10-000 |
— | ||
| replacement | |||||
|
21
|
21
14281-60G11-000 MOUNTING,MUFFLER(HS60)2001-12-01~2004-09-01 |
14281-60G11-000 |
from US $4.59 |
||
|
22
|
22
14231-81A01-000 PANEL,HEAT PROTECTOR2001-12-01~2004-09-01 |
14231-81A01-000 |
from US $8.26 |
||
|
23
|
23
08316-10063-000
Nut
2001-12-01~2004-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUT2001-12-01~2004-09-01 |
08316-1006B-000 |
from US $0.76 |
||
