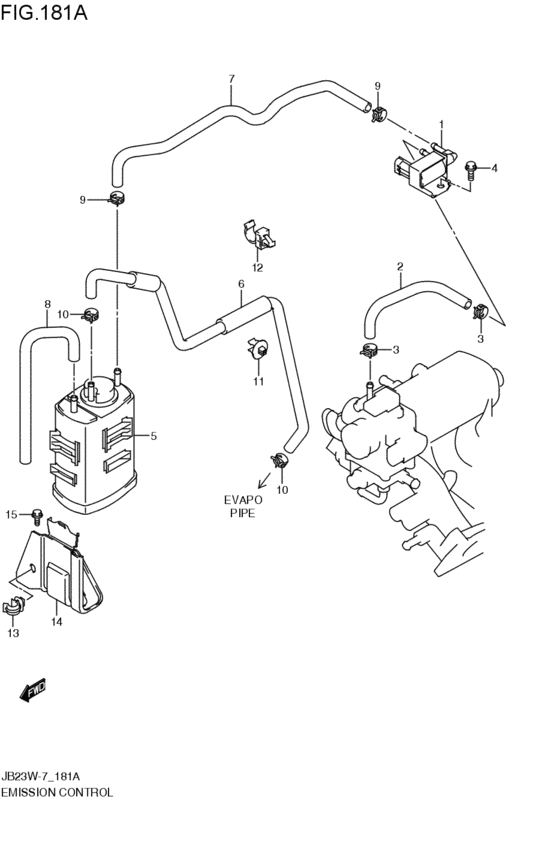

emission control (2008-03-01~) Diagram Suzuki JIMNY
- Year
- 2008 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGA
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-82K00-000 VALVE,CANISTER PURGE2008-03-01~ |
18117-82K00-000 |
from US $76.18 |
||
|
2
|
2
18566-83A10-000
ホース,パージ
2008-03-01~ |
18566-83A10-000 |
— | ||
|
3
|
3
09401-11419-000 CLIP2008-03-01~ |
09401-11419-000 |
from US $1.42 |
||
|
4
|
4
01550-0612A-000 Bolt2008-03-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
18560-83J00-000 CANISTER2008-03-01~ |
18560-83J00-000 |
from US $75.25 |
||
|
6
|
6
18562-61L00-000
ホース,キャニスタインレット
2008-03-01~ |
18562-61L00-000 |
— | ||
|
7
|
7
18563-61L00-000
ホース,パージ(キャニスタツーVSV)
2008-03-01~ |
18563-61L00-000 |
— | ||
|
8
|
8
18561-61L00-000
ホース,キャニスタサクション
2008-03-01~ |
18561-61L00-000 |
— | ||
|
9
|
9
09401-11419-000 CLIP2008-03-01~ |
09401-11419-000 |
from US $1.42 |
||
|
10
|
10
09401-11419-000 CLIP2008-03-01~ |
09401-11419-000 |
from US $1.42 |
||
|
11
|
11
09403-11311-000 CLAMP2008-03-01~ |
09403-11311-000 |
from US $0.70 |
||
|
12
|
12
09403-11320-000 CLAMP2008-03-01~ |
09403-11320-000 |
from US $1.52 |
||
|
13
|
13
09403-11320-000 CLAMP2008-03-01~ |
09403-11320-000 |
from US $1.52 |
||
|
14
|
14
18570-61L00-000
ブラケット,キャニスタ
2008-03-01~ |
18570-61L00-000 |
— | ||
|
15
|
15
01550-0812A-000 Bolt2008-03-01~ |
01550-0812A-000 |
from US $0.91 |
