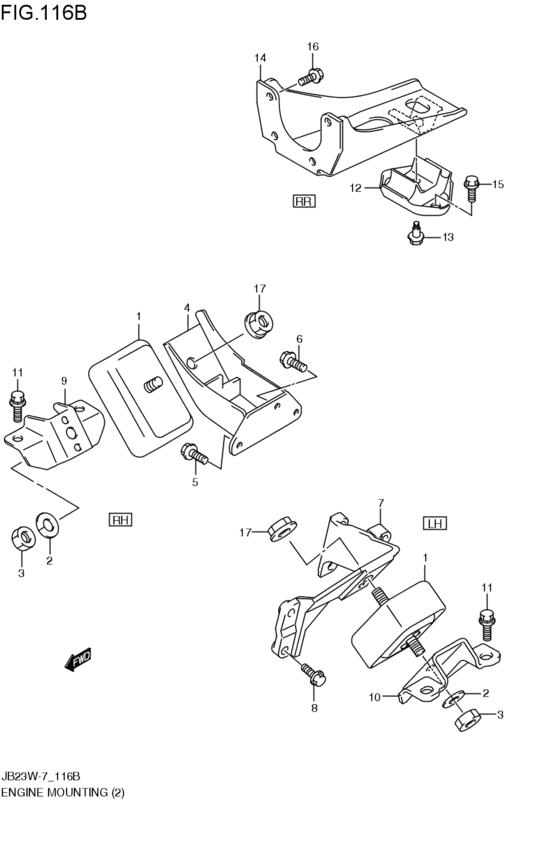

engine mounting (JB23W-602874カラ; 2008-08-01~) Diagram Suzuki JIMNY
- Year
- 2008 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGA
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-81AA0-000 MOUNTING,ENG FR2008-08-01~ |
11610-81AA0-000 |
from US $89.08 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK2008-08-01~ |
08321-0110A-000 |
from US $0.96 |
||
|
3
|
3
08310-0010A-000 NUT2008-08-01~ |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11640-81AA1-000 BRACKET,ENG FR MTG,R2008-08-01~ |
11640-81AA1-000 |
US $96 |
||
|
5
|
5
01550-0820A-000 BoltBolt, funnel bracket 2008-08-01~ |
01550-0820A-000 |
from US $1.12 |
||
|
6
|
6
01550-1025A-000 BoltBolt, drive gear 2008-08-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
7
|
7
11651-83CA0-000 BRACKET,ENG FR MTG,L2008-08-01~ |
11651-83CA0-000 |
US $172.80 |
||
|
8
|
8
01550-0825A-000 Bolt2008-08-01~ |
01550-0825A-000 |
from US $0.47 |
||
|
9
|
9
11661-81AA0-000
ブラケット,フロントマウンチングフレームサイド,ライト
2008-08-01~ |
11661-81AA0-000 |
— | ||
|
10
|
10
11671-81AA0-000
ブラケット,フロントマウンチングフレームサイド,レフト
2008-08-01~ |
11671-81AA0-000 |
— | ||
|
11
|
11
09112-10013-000 BOLT(10X30)2008-08-01~ |
09112-10013-000 |
US $19.90 |
||
|
12
|
12
11710-76J00-000 MOUNTING,ENG RR2008-08-01~ |
11710-76J00-000 |
US $81.60 |
||
|
13
|
13
09135-08007-000 BOLT(8X16)2008-08-01~ |
09135-08007-000 |
from US $4 |
||
|
14
|
14
11740-76JA0-000 BRACKET,ENG RR MTG2008-08-01~ |
11740-76JA0-000 |
US $51.52 |
||
|
15
|
15
01551-0816C-000 Bolt2008-08-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
16
|
16
01550-0820A-000 BoltBolt, funnel bracket 2008-08-01~ |
01550-0820A-000 |
from US $1.12 |
||
|
17
|
17
08316-1010A-000 NUTNut, kick starter 2008-08-01~ |
08316-1010A-000 |
from US $0.76 |
