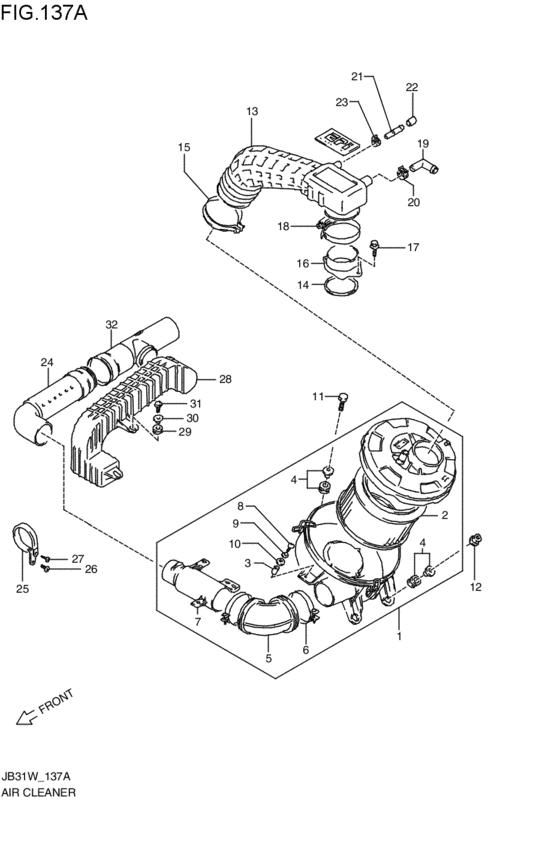

air cleaner (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-80C01-000 CLEANER ASSY,AIR1993-05-01~1995-09-01 |
13700-80C01-000 |
US $196.88 |
||
|
2
|
2
13780-83000-000 ELEMENT,AIR CLEANER1993-05-01~1995-09-01 |
13780-83000-000 |
from US $38.40 |
||
| replacement | |||||
|
2
|
2
99000-990YJ-002
Filter, air cle
1993-05-01~1995-09-01 |
99000-990YJ-002 |
— | ||
|
3
|
3
13712-83000-000
SPACER
1993-05-01~1995-09-01 |
13712-83000-000 |
— | ||
|
4
|
4
13813-61AT0-000 GROMMET SET,AIR CLEANER1993-05-01~1995-09-01 |
13813-61AT0-000 |
US $6.56 |
||
|
5
|
5
13731-83001-000 JOINT,WARM AIR VALVE1993-05-01~1995-09-01 |
13731-83001-000 |
from US $10.46 |
||
|
6
|
6
09402-70306-000
Clamp
1993-05-01~1995-09-01 |
09402-70306-000 |
— | ||
| replacement | |||||
|
6
|
6
09402-70306-XC0 CLAMP1993-05-01~1995-09-01 |
09402-70306-XC0 |
from US $8.87 |
||
|
7
|
7
13740-80C01-000
VALVE,WARM AIR
1993-05-01~1995-09-01 |
13740-80C01-000 |
— | ||
|
8
|
8
02112-06164-000
Screw
1993-05-01~1995-09-01 |
02112-06164-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-0616B-000 SCREW1993-05-01~1995-09-01 |
02112-0616B-000 |
from US $0.96 |
||
|
8
|
8
02112-0616A-000 SCREW1993-05-01~1995-09-01 |
02112-0616A-000 |
from US $0.76 |
||
|
9
|
9
08321-01063-000
Washer, lock
1993-05-01~1995-09-01 |
08321-01063-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0106A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0106A-000 |
from US $0.76 |
||
|
10
|
10
08322-01063-000
Washer
1993-05-01~1995-09-01 |
08322-01063-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-0106B-000 WASHER1993-05-01~1995-09-01 |
08322-0106B-000 |
from US $0.76 |
||
|
11
|
11
01550-06253-000
Bolt (6x25)
1993-05-01~1995-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0625B-000 BoltBolt, head cover 1993-05-01~1995-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
11
|
11
01550-0625A-000 BoltBolt 1993-05-01~1995-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
08316-10063-000
Nut
1993-05-01~1995-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUT1993-05-01~1995-09-01 |
08316-1006B-000 |
from US $0.80 |
||
|
13
|
13
13831-80C10-000 CASE,AIR INTAKE1993-05-01~1995-09-01 |
13831-80C10-000 |
US $152 |
||
|
14
|
14
13879-81050-000
GASKET,CARB UPR
1993-05-01~1995-09-01 |
13879-81050-000 |
— | ||
|
15
|
15
09402-82202-000
Clamp
1993-05-01~1995-09-01 |
09402-82202-000 |
— | ||
| replacement | |||||
|
15
|
15
09402-82208-000 CLAMP1993-05-01~1995-09-01 |
09402-82208-000 |
from US $6.14 |
||
|
16
|
16
13851-80C00-000
JOINT,AIR INTAKE CASE
1993-05-01~1995-09-01 |
13851-80C00-000 |
— | ||
|
17
|
17
01550-06123-000
Bolt
1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BoltBolt, clamp 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 Bolt1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
09402-82511-000 CLAMP1993-05-01~1995-09-01 |
09402-82511-000 |
from US $5.90 |
||
|
19
|
19
09367-14004-000 Pipe1993-05-01~1995-09-01 |
09367-14004-000 |
from US $3.62 |
||
|
20
|
20
09401-18402-000 CLAMP1993-05-01~1995-09-01 |
09401-18402-000 |
from US $1.10 |
||
| replacement | |||||
|
20
|
20
09401-18404-000 CLIP1993-05-01~1995-09-01 |
09401-18404-000 |
from US $1.37 |
||
|
21
|
21
09364-08006-000 UNION1993-05-01~1995-09-01 |
09364-08006-000 |
from US $3.76 |
||
|
22
|
22
09251-07003-000 CAP(OD:11.5)1993-05-01~1995-09-01 |
09251-07003-000 |
from US $0.72 |
||
|
23
|
23
09401-12405-000 CLIP1993-05-01~1995-09-01 |
09401-12405-000 |
from US $1.67 |
||
|
24
|
24
13870-83000-000 HOSE,COOL AIR1993-05-01~1995-09-01 |
13870-83000-000 |
from US $28.55 |
||
|
25
|
25
13896-83000-000 CLAMP,COOL AIR HOSE1993-05-01~1995-09-01 |
13896-83000-000 |
from US $1.04 |
||
|
26
|
26
02142-06103-000
Screw
1993-05-01~1995-09-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1993-05-01~1995-09-01 |
02142-0610B-000 |
from US $0.76 |
||
|
26
|
26
02142-0610A-000 SCREW1993-05-01~1995-09-01 |
02142-0610A-000 |
from US $0.96 |
||
|
27
|
27
03141-05123-000
Screw 5 x 12
1993-05-01~1995-09-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
27
|
27
03141-0512A-000 SCREWScrew, belt cooling duct 1993-05-01~1995-09-01 |
03141-0512A-000 |
from US $0.76 |
||
|
28
|
28
13761-80C00-000
Resonator
1993-05-01~1995-09-01 |
13761-80C00-000 |
— | ||
|
29
|
29
09320-08021-000
CUSHION
1993-05-01~1995-09-01 |
09320-08021-000 |
— | ||
| replacement | |||||
|
29
|
29
09320-08510-000 Cushion(8.5X20X8)1993-05-01~1995-09-01 |
09320-08510-000 |
from US $1.82 |
||
|
30
|
30
09169-06065-000 WASHERSpacer 1993-05-01~1995-09-01 |
09169-06065-000 |
from US $1.76 |
||
|
31
|
31
02142-06203-000
Screw
1993-05-01~1995-09-01 |
02142-06203-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-0620A-000 SCREW1993-05-01~1995-09-01 |
02142-0620A-000 |
from US $0.68 |
||
|
32
|
32
13762-80C00-000
Pipe,air inlet
1993-05-01~1995-09-01 |
13762-80C00-000 |
— | ||
