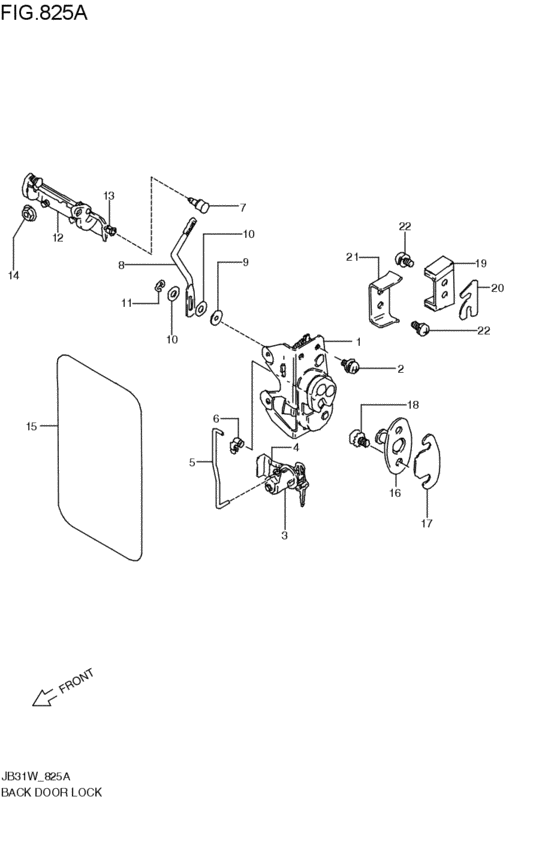

back door lock (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82530-80101-000 LOCK ASSY,BACK DR1993-05-01~1995-09-01 |
82530-80101-000 |
US $47.99 |
||
|
2
|
2
02112-76123-000
Screw
1993-05-01~1995-09-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-7612B-000 SCREW1993-05-01~1995-09-01 |
02112-7612B-000 |
from US $1.12 |
||
|
3
|
3
82200-80851-000 CYLINDER,DR LOCK1993-05-01~1995-09-01 |
82200-80851-000 |
from US $29.59 |
||
|
4
|
4
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK1993-05-01~1995-09-01 |
89345-60B00-000 |
from US $1.71 |
||
|
5
|
5
82581-80100-000
ROD,KEY CYLINDER CONTROL
1993-05-01~1995-09-01 |
82581-80100-000 |
— | ||
|
6
|
6
09209-05016-000 PIN1993-05-01~1995-09-01 |
09209-05016-000 |
from US $1.15 |
||
|
7
|
7
77716-79000-000 JOINT,ROD1993-05-01~1995-09-01 |
77716-79000-000 |
US $3.52 |
||
|
8
|
8
83231-80100-000 ROD,LOCK OUTSIDE HANDLE1993-05-01~1995-09-01 |
83231-80100-000 |
from US $2.61 |
||
|
9
|
9
09161-04008-000 WASHER(4X12X2)1993-05-01~1995-09-01 |
09161-04008-000 |
from US $0.36 |
||
|
10
|
10
09161-06008-000 WASHER(6.5X13X1)1993-05-01~1995-09-01 |
09161-06008-000 |
from US $1.10 |
||
|
11
|
11
08332-11055-000
E-ring
1993-05-01~1995-09-01 |
08332-11055-000 |
— | ||
| replacement | |||||
|
11
|
11
08332-1105A-000 E RING1993-05-01~1995-09-01 |
08332-1105A-000 |
from US $0.91 |
||
|
12
|
12
82810-83000-000 HANDLE,DOOR OUTSIDE,R1993-05-01~1995-09-01 |
82810-83000-000 |
from US $36.25 |
||
|
13
|
13
82891-80100-000 SNAP,JOINT1993-05-01~1995-09-01 |
82891-80100-000 |
from US $0.70 |
||
|
14
|
14
08316-20063-000
Nut
1993-05-01~1995-09-01 |
08316-20063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-2006A-000 NUT1993-05-01~1995-09-01 |
08316-2006A-000 |
from US $0.76 |
||
|
15
|
15
83911-60X50-000
カバー,ドアシーリング,600X1200
1993-05-01~1995-09-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
15
|
15
83911-60X52-000 COVER,DR SEALING1993-05-01~1995-09-01 |
83911-60X52-000 |
US $6.06 |
||
|
16
|
16
82660-80100-000
STRICKER BACK DOOR LATCH
1993-05-01~1995-09-01 |
82660-80100-000 |
— | ||
| replacement | |||||
|
16
|
16
82660-80101-000 STRIKER,BACK DOOR LATCH1993-05-01~1995-09-01 |
82660-80101-000 |
from US $8.15 |
||
|
17
|
17
78199-79000-000 SPACER1993-05-01~1995-09-01 |
78199-79000-000 |
from US $1.60 |
||
|
18
|
18
09137-08011-000 SCREW(8X18)1993-05-01~1995-09-01 |
09137-08011-000 |
from US $1.40 |
||
|
19
|
19
78251-68201-000 MALE,BACK DR ST0P1993-05-01~1995-09-01 |
78251-68201-000 |
from US $6.55 |
||
|
20
|
20
77891-63100-000 SPACER1993-05-01~1995-09-01 |
77891-63100-000 |
US $5.60 |
||
|
21
|
21
78261-68201-000 MALE,BACK DR ST0P1993-05-01~1995-09-01 |
78261-68201-000 |
from US $4.23 |
||
|
22
|
22
02112-36163-000
Screw
1993-05-01~1995-09-01 |
02112-36163-000 |
— | ||
| replacements | |||||
|
22
|
22
02112-3616B-000 SCREW1993-05-01~1995-09-01 |
02112-3616B-000 |
from US $0.80 |
||
|
22
|
22
02112-3616A-000 SCREW1993-05-01~1995-09-01 |
02112-3616A-000 |
from US $3.11 |
||
