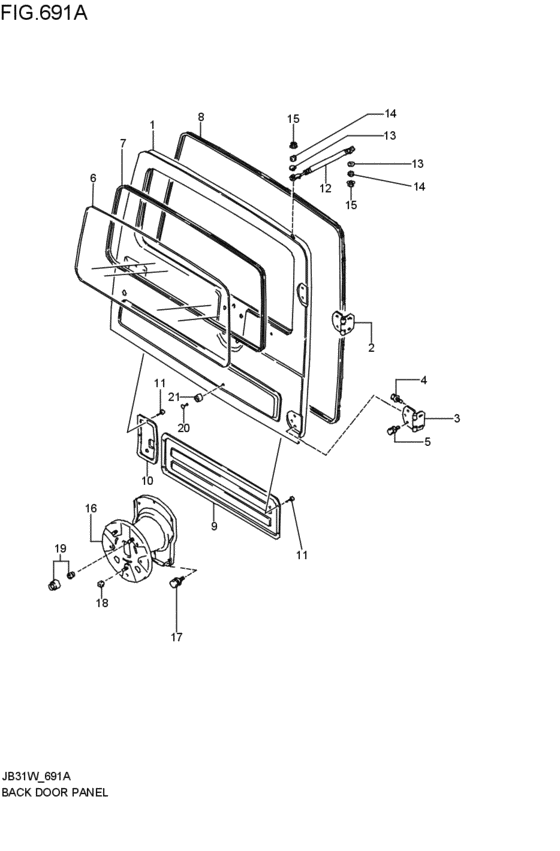

back door panel (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-84C50-000 PANEL ASSY,BACK DOORSTD,SA; 1993-05-01~1995-09-01 |
69100-84C50-000 |
US $1,427.60 |
||
|
2
|
2
69510-80111-000 HINGE,BACK DOOR UPR1993-05-01~1995-09-01 |
69510-80111-000 |
from US $26.03 |
||
|
3
|
3
69520-80111-000 HINGE,BACK DOOR LWR1993-05-01~1995-09-01 |
69520-80111-000 |
from US $21.92 |
||
|
4
|
4
09118-08060-000 BOLT(8X22)1993-05-01~1995-09-01 |
09118-08060-000 |
US $1.28 |
||
|
5
|
5
09125-08015-000
スクリュ,8X20
1993-05-01~1995-09-01 |
09125-08015-000 |
— | ||
| replacement | |||||
|
5
|
5
09125-08015-XC0 SCREW(8X20)1993-05-01~1995-09-01 |
09125-08015-XC0 |
from US $0.97 |
||
|
6
|
6
84571-82CC0-000
ガラス,バックドアウィンド(ブルー)
ASAHI ブルー; STD,SA; 1993-05-01~1995-09-01 |
84571-82CC0-000 |
— | ||
| replacement | |||||
|
6
|
6
84571-82CB0-000
Glass,back door window
ASAHI ブルー; STD,SA; 1993-05-01~1995-09-01 |
84571-82CB0-000 |
— | ||
|
7
|
7
84623-80100-000 WEATHERSTRIP,BACK WINDOW1993-05-01~1995-09-01 |
84623-80100-000 |
from US $62.06 |
||
|
8
|
8
84681-80100-000
WEATHER STRIP BACK DOOR
STD,SA; 1993-05-01~1995-09-01 |
84681-80100-000 |
— | ||
| replacement | |||||
|
8
|
8
84681-82CA0-000 WEATHERSTRIP,BACK DR OPNGSTD,SA; 1993-05-01~1995-09-01 |
84681-82CA0-000 |
from US $79.70 |
||
|
9
|
9
83771-80100-000 LID,BACK DR SVCE HOLE1993-05-01~1995-09-01 |
83771-80100-000 |
from US $6.46 |
||
|
10
|
10
83772-80100-000 LID,BACK DR LATCH SVCE HOLE1993-05-01~1995-09-01 |
83772-80100-000 |
from US $2.72 |
||
|
11
|
11
03141-05123-000
Screw 5 x 12
1993-05-01~1995-09-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0512A-000 SCREWScrew, belt cooling duct 1993-05-01~1995-09-01 |
03141-0512A-000 |
from US $0.76 |
||
|
12
|
12
81860-80101-000 UNIT,DR BALANCER1993-05-01~1995-09-01 |
81860-80101-000 |
from US $88.56 |
||
|
13
|
13
09160-06107-000
Washer,6x16x1.2
1993-05-01~1994-09-01 |
09160-06107-000 |
— | ||
| replacements | |||||
|
13
|
13
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) 1993-05-01~1994-09-01 |
09160-06052-000 |
from US $1.44 |
||
|
13
|
13
09160-06079-000 WASHER(6.5X16X1.2)1993-05-01~1994-09-01 |
09160-06079-000 |
from US $1.12 |
||
|
14
|
14
08310-00063-000
Nut
1993-05-01~1994-09-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
14
|
14
08310-0006B-000 NUTNut gear shift link rod 1993-05-01~1994-09-01 |
08310-0006B-000 |
from US $0.76 |
||
|
14
|
14
08310-0006A-000 NUT1993-05-01~1994-09-01 |
08310-0006A-000 |
from US $0.76 |
||
|
15
|
15
09159-06076-000 NUT1994-09-01~1995-09-01 |
09159-06076-000 |
from US $0.99 |
||
|
16
|
16
83960-83501-000
CARRIER,SPARE TIRE
1993-05-01~1995-09-01 |
83960-83501-000 |
— | ||
|
17
|
17
01580-10253-000
ボルト
1993-05-01~1995-09-01 |
01580-10253-000 |
— | ||
| replacement | |||||
|
17
|
17
01580-1025A-000 Bolt1993-05-01~1995-09-01 |
01580-1025A-000 |
US $19.50 |
||
|
18
|
18
09159-12024-000 NUT1993-05-01~1995-09-01 |
09159-12024-000 |
from US $2.56 |
||
|
19
|
19
83901-70AA0-000
KEY ASSY,SPARE TIRE NUT LOCK
1993-05-01~1995-09-01 |
83901-70AA0-000 |
— | ||
|
20
|
20
02112-06163-000
Screw
1993-05-01~1995-09-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
20
|
20
02112-0616B-000 SCREW1993-05-01~1995-09-01 |
02112-0616B-000 |
from US $0.96 |
||
|
20
|
20
02112-0616A-000 SCREW1993-05-01~1995-09-01 |
02112-0616A-000 |
from US $0.76 |
||
|
21
|
21
09320-06006-000 CUSHION1993-05-01~1995-09-01 |
09320-06006-000 |
from US $0.97 |
||
