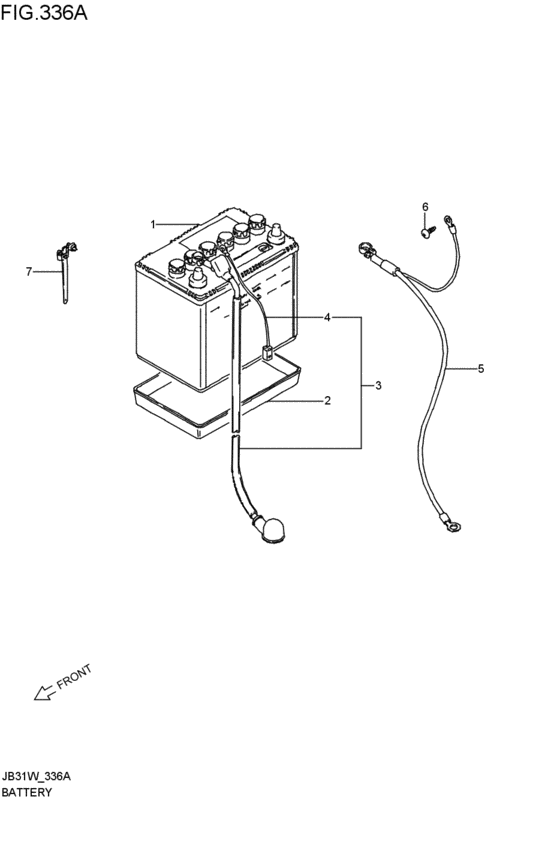

battery (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-82120-000
Battery assy
FB; 1993-05-01~1995-09-01 |
33610-82120-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-821V1-000
BATTERY ASSY,55B24R (Cannot supply)
FB; 1993-05-01~1995-09-01 |
33610-821V1-000 |
— | ||
|
2
|
2
33660-73010-000
Tray, battery
1993-05-01~1995-09-01 |
33660-73010-000 |
— | ||
| replacement | |||||
|
2
|
2
33660-71L10-000 TRAY,BATTERY1993-05-01~1995-09-01 |
33660-71L10-000 |
from US $7.90 |
||
|
3
|
3
33800-70A00-000 CABLE ASSY,STARTING MOTOR1993-05-01~1995-09-01 |
33800-70A00-000 |
from US $22.59 |
||
|
4
|
4
36740-80000-000 FUSIBLE LINK1993-05-01~1995-09-01 |
36740-80000-000 |
from US $5.90 |
||
|
5
|
5
33850-70B10-000 CABLE,BTRY GND1993-05-01~1995-09-01 |
33850-70B10-000 |
from US $13.12 |
||
|
6
|
6
09129-06002-000 SCREW(6X12)1993-05-01~1995-09-01 |
09129-06002-000 |
from US $0.16 |
||
|
7
|
7
09407-12404-000 CLAMP(L:140)1993-05-01~1995-09-01 |
09407-12404-000 |
from US $1.33 |
||
