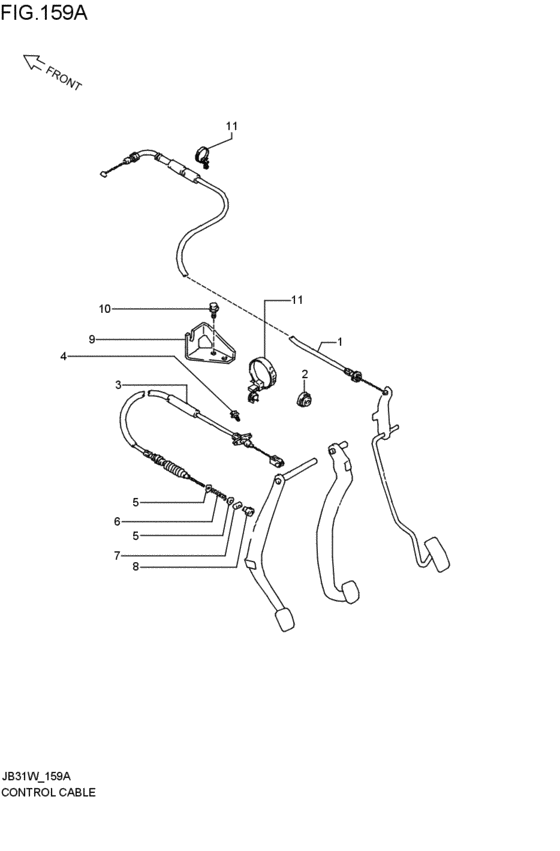

control cable (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-80C10-000
ケーブルアッシ,アクセル
CHKK; 1993-05-01~1995-09-01 |
15910-80C10-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-80C1V-000 CABLE,ACCELCHKK; 1993-05-01~1995-09-01 |
15910-80C1V-000 |
US $48.21 |
||
|
2
|
2
15939-83000-000 PLUG,CHOKE CABLE1993-05-01~1995-09-01 |
15939-83000-000 |
US $1.52 |
||
|
3
|
3
23710-83013-000 CABLE ASSY,CLUTCH5MT; 1993-05-01~1995-09-01 |
23710-83013-000 |
US $133.60 |
||
|
4
|
4
01550-06163-000
Bolt
5MT; 1993-05-01~1995-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 Bolt5MT; 1993-05-01~1995-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 Bolt5MT; 1993-05-01~1995-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
08322-01063-000
Washer
5MT; 1993-05-01~1995-09-01 |
08322-01063-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-0106B-000 WASHER5MT; 1993-05-01~1995-09-01 |
08322-0106B-000 |
from US $0.76 |
||
|
6
|
6
09440-08026-000 SPRING5MT; 1993-05-01~1995-09-01 |
09440-08026-000 |
from US $1.22 |
||
|
7
|
7
09209-13018-000 PIN(13X18)5MT; 1993-05-01~1995-09-01 |
09209-13018-000 |
from US $1.82 |
||
|
8
|
8
09150-06014-000
Nut
5MT; 1993-05-01~1995-09-01 |
09150-06014-000 |
— | ||
| replacement | |||||
|
8
|
8
09150-06010-000 NUT5MT; 1993-05-01~1995-09-01 |
09150-06010-000 |
from US $1.82 |
||
|
9
|
9
23911-83002-000
ブラケット,クラッチケーブル
5MT; 1993-05-01~1995-09-01 |
23911-83002-000 |
— | ||
| replacement | |||||
|
9
|
9
23911-83003-000 BRACKET,CLUTCH CABLE5MT; 1993-05-01~1995-09-01 |
23911-83003-000 |
US $13.51 |
||
|
10
|
10
01550-10203-000
Bolt
5MT; 1993-05-01~1995-09-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1020A-000 BoltBolt, bal sprocket 5MT; 1993-05-01~1995-09-01 |
01550-1020A-000 |
from US $0.96 |
||
|
11
|
11
09403-12310-000 CLAMP5MT; 1993-05-01~1995-09-01 |
09403-12310-000 |
US $35.30 |
||
