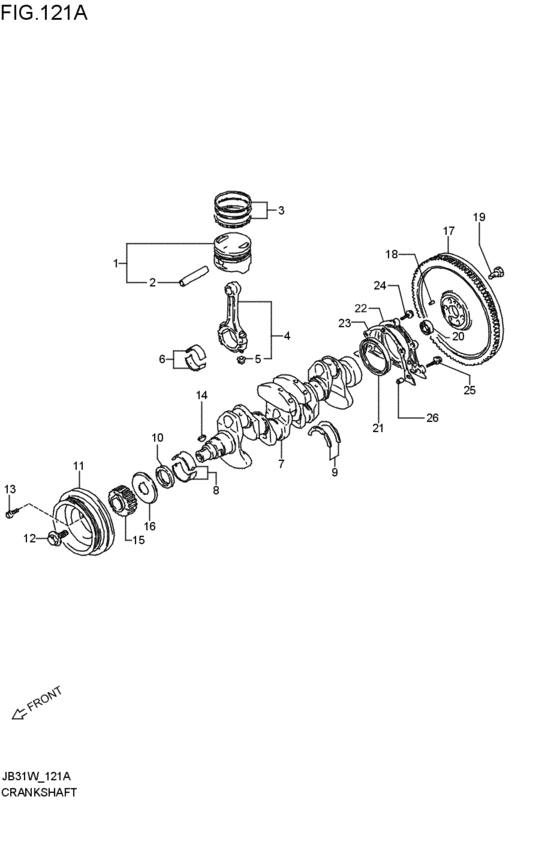

crankshaft (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-61840-0A0
ピストンセット,STD,マーク 1
STD,マーク1; 1993-05-01~1995-09-01 |
12100-61840-0A0 |
— | ||
| replacement | |||||
|
1
|
1
12101-63850-0A0 PISTON SET,STD MARK 1STD,マーク1; 1993-05-01~1995-09-01 |
12101-63850-0A0 |
US $74.34 |
||
|
1
|
1
12100-61840-0B0
ピストンセット,STD,マーク 2
STD,マーク2; 1993-05-01~1995-09-01 |
12100-61840-0B0 |
— | ||
| replacement | |||||
|
1
|
1
12101-63850-0B0 PISTON SET,STD MARK 2STD,マーク2; 1993-05-01~1995-09-01 |
12101-63850-0B0 |
US $74.34 |
||
|
2
|
2
12151-82000-000 PIN,PISTONPin, piston 1993-05-01~1995-09-01 |
12151-82000-000 |
from US $5.04 |
||
|
3
|
3
12140-82X50-000 RING SET,PISTONRing set, piston 1993-05-01~1995-09-01 |
12140-82X50-000 |
from US $32.20 |
||
|
4
|
4
12160-86002-000
Connrod assy
1993-05-01~1995-09-01 |
12160-86002-000 |
— | ||
| replacement | |||||
|
4
|
4
12160-86021-000 CONNROD ASSY1993-05-01~1995-09-01 |
12160-86021-000 |
US $217.60 |
||
|
5
|
5
09159-08033-000 NUT1993-05-01~1995-09-01 |
09159-08033-000 |
from US $0.97 |
||
|
6
|
6
12100-82810-000 BEARING SET,CONNRODBearing set, big end 1993-05-01~1995-09-01 |
12100-82810-000 |
from US $18.86 |
||
|
6
|
6
12100-82810-025 BEARING SET,CONNROD US:0.251993-05-01~1995-09-01 |
12100-82810-025 |
from US $17.82 |
||
|
7
|
7
12221-63B00-000
CRANK SHAFT ASSY
1993-05-01~1995-09-01 |
12221-63B00-000 |
— | ||
| replacement | |||||
|
7
|
7
12221-83E00-000 CRANKSHAFT1993-05-01~1995-09-01 |
12221-83E00-000 |
from US $508.52 |
||
|
8
|
8
12300-82810-0AA BEARING SET,CRANKSHAFT USカラー:レッド/グリーン; 1993-05-01~1995-09-01 |
12300-82810-0AA |
from US $18.34 |
||
|
8
|
8
12300-82810-0BA BEARING SET,CRANKSHAFT USカラー:レッド/ブラック; 1993-05-01~1995-09-01 |
12300-82810-0BA |
from US $22.55 |
||
|
8
|
8
12300-82810-0CA BEARING SET,CRANKSHAFT USカラー:レッド; 1993-05-01~1995-09-01 |
12300-82810-0CA |
US $24.66 |
||
|
8
|
8
12300-82810-0DA BEARING SET,CRANKSHAFT USカラー:レッド/イエロ; 1993-05-01~1995-09-01 |
12300-82810-0DA |
US $24.66 |
||
|
8
|
8
12300-82810-0EA BEARING SET,CRANKSHAFT USカラー:レッド/ブルー; 1993-05-01~1995-09-01 |
12300-82810-0EA |
US $24.66 |
||
|
8
|
8
12340-82000-0A0 BEARING SET,CRANKSHAFT STD (Green)カラー:グリーン; 1993-05-01~1995-09-01 |
12340-82000-0A0 |
from US $13.73 |
||
|
8
|
8
12340-82000-0B0 BEARING SET,CRANKSHAFT STD (Black)カラー:ブラック; 1993-05-01~1995-09-01 |
12340-82000-0B0 |
from US $11.59 |
||
|
8
|
8
12340-82000-0C0 BEARING SET,CRANKSHAFT STD (None)カラー:ナシ; 1993-05-01~1995-09-01 |
12340-82000-0C0 |
from US $14.29 |
||
|
8
|
8
12340-82000-0D0 BEARING SET,CRANKSHAFT STD (Yellow)カラー:イエロ; 1993-05-01~1995-09-01 |
12340-82000-0D0 |
from US $13.82 |
||
|
8
|
8
12340-82000-0E0 BEARING SET,CRANKSHAFT STD (Blue)カラー:ブルー; 1993-05-01~1995-09-01 |
12340-82000-0E0 |
from US $10.44 |
||
|
9
|
9
12300-82820-000
Bearing set, crank thrust (STD)
1993-05-01~1995-09-01 |
12300-82820-000 |
— | ||
| replacement | |||||
|
9
|
9
12300-60840-000 BEARING SET,CRANK THRUST (STD)1993-05-01~1995-09-01 |
12300-60840-000 |
from US $10.10 |
||
|
9
|
9
12300-82820-012
Bearing set, crank thrust (OS:0.125)
1993-05-01~1995-09-01 |
12300-82820-012 |
— | ||
| replacement | |||||
|
9
|
9
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)1993-05-01~1995-09-01 |
12300-60840-012 |
from US $12.24 |
||
|
10
|
10
09283-32040-000
オイルシール,32X47X6
1993-05-01~1995-09-01 |
09283-32040-000 |
— | ||
| replacement | |||||
|
10
|
10
09283-32042-000 SEAL,OIL(32X47X6)1993-05-01~1995-09-01 |
09283-32042-000 |
from US $8.51 |
||
|
11
|
11
12611-80C01-000
PULLEY,CRANKSHAFT
1993-05-01~1995-09-01 |
12611-80C01-000 |
— | ||
|
12
|
12
12619-60B00-000 BOLT,CRANK PULLEY1993-05-01~1995-09-01 |
12619-60B00-000 |
from US $5.13 |
||
|
13
|
13
09103-06185-000 BOLT(6X20)Bolt (6x20) 1993-05-01~1995-09-01 |
09103-06185-000 |
from US $1.28 |
||
|
14
|
14
08341-31059-000 KEYKey 1993-05-01~1995-09-01 |
08341-31059-000 |
from US $1.53 |
||
|
15
|
15
12631-86500-000
PULLEY CRANK TIMING
1993-05-01~1995-09-01 |
12631-86500-000 |
— | ||
| replacement | |||||
|
15
|
15
12631-86510-000 PULLEY,CRANK TIMING BELT1993-05-01~1995-09-01 |
12631-86510-000 |
from US $38.09 |
||
|
16
|
16
12635-78401-000 GUIDE,TIMING BELT1993-05-01~1995-09-01 |
12635-78401-000 |
from US $5.28 |
||
|
17
|
17
12620-83000-000 FLYWHEELNT:100; 5MT; 1993-05-01~1995-09-01 |
12620-83000-000 |
US $220.07 |
||
|
18
|
18
04221-06129-000 PIN5MT; 1993-05-01~1993-07-01 |
04221-06129-000 |
from US $0.96 |
||
|
19
|
19
09103-10275-000 BOLT(10X25)Bolt, front 5MT; 1993-05-01~1995-09-01 |
09103-10275-000 |
from US $1.76 |
||
|
20
|
20
12623-60A00-000 BEARING,INPUT SHAFTBearing, input shaft 5MT; 1993-05-01~1995-09-01 |
12623-60A00-000 |
from US $22.07 |
||
|
21
|
21
09283-68002-000 SEAL,OIL(68X86X8)1993-05-01~1995-09-01 |
09283-68002-000 |
from US $25.83 |
||
|
22
|
22
11341-82000-000
Housing, oil seal
1993-05-01~1995-09-01 |
11341-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
11341-82001-000 HOUSING,OIL SEAL1993-05-01~1995-09-01 |
11341-82001-000 |
US $18.34 |
||
|
23
|
23
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing 1993-05-01~1995-09-01 |
11349-60A01-000 |
from US $6.62 |
||
|
24
|
24
01550-06203-000
Bolt
1993-05-01~1995-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-0620B-000 BoltBolt, inspection cap 1993-05-01~1995-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
25
|
25
01550-06253-000
Bolt (6x25)
1993-05-01~1995-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0625B-000 BoltBolt, head cover 1993-05-01~1995-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
25
|
25
01550-0625A-000 BoltBolt 1993-05-01~1995-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
26
|
26
04211-09109-000 PINKnock pin 1993-05-01~1995-09-01 |
04211-09109-000 |
from US $0.86 |
||
