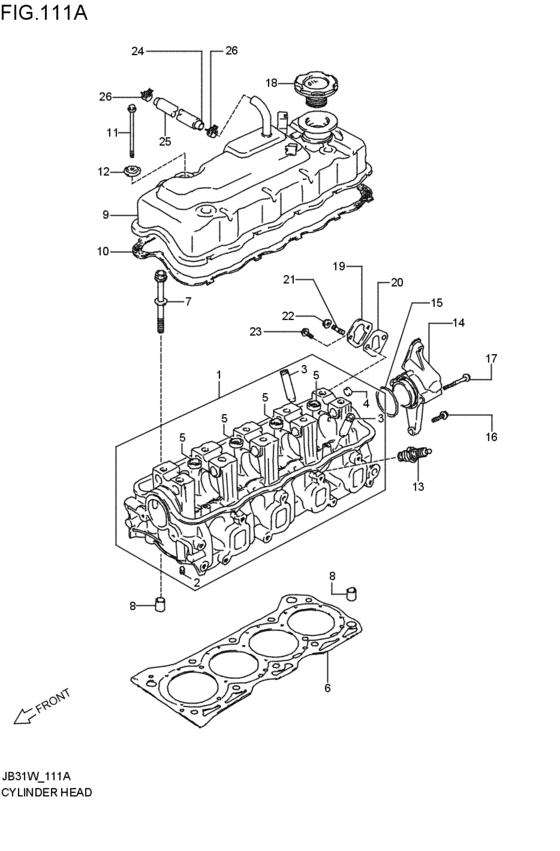

Cylinder head (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-82602-000 Head,cylinder1993-05-01~1995-09-01 |
11110-82602-000 |
US $546.98 |
||
|
2
|
2
11112-73001-000
PLUG OIL VENTURI
1993-05-01~1995-09-01 |
11112-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI1993-05-01~1995-09-01 |
11112-73010-000 |
from US $1.60 |
||
|
3
|
3
11115-82000-001 GUIDE,VALVEGuide, valve 1993-05-01~1995-09-01 |
11115-82000-001 |
from US $12.80 |
||
|
4
|
4
09241-12002-000 PLUG1993-05-01~1995-09-01 |
09241-12002-000 |
from US $1.26 |
||
|
5
|
5
09241-20006-000 PLUGPlug, crank pin oil 1993-05-01~1995-09-01 |
09241-20006-000 |
from US $1.60 |
||
|
6
|
6
11141-86502-000 GASKET,CYL HEADGasket, cylinder head 1993-05-01~1995-09-01 |
11141-86502-000 |
from US $56.30 |
||
|
7
|
7
11119-82000-000 BOLT,CYLINDER HEADBolt, cylinder head 1993-05-01~1995-09-01 |
11119-82000-000 |
from US $2.90 |
||
|
8
|
8
04211-13189-000 PIN1993-05-01~1995-09-01 |
04211-13189-000 |
from US $1.22 |
||
|
9
|
9
11170-61X50-000 Cover,cylinder head1993-05-01~1995-09-01 |
11170-61X50-000 |
US $164.86 |
||
|
10
|
10
11189-82600-000 GASKET,CYL HEAD COVER1993-05-01~1995-09-01 |
11189-82600-000 |
from US $16.97 |
||
|
11
|
11
01550-06803-000
Bolt
1993-05-01~1995-09-01 |
01550-06803-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0680B-000 Bolt1993-05-01~1995-09-01 |
01550-0680B-000 |
from US $1.22 |
||
|
12
|
12
11180-82010-000 WASHER,CYL HEAD COVER SEAL1993-05-01~1995-09-01 |
11180-82010-000 |
from US $4.07 |
||
|
13
|
13
09482-00155-000 PLUG,SPARK(NGK BPR5ES)NGK; 1993-05-01~1995-09-01 |
09482-00155-000 |
from US $2.78 |
||
|
13
|
13
09482-00409-000 PLUG,SPARK(W20EPR-U)DENSO; 1993-05-01~1995-09-01 |
09482-00409-000 |
US $8.65 |
||
|
13
|
13
09482-00506-000
スパークプラグ,WR8DC (BOSCH)
BOSCH; 1993-05-01~1995-09-01 |
09482-00506-000 |
— | ||
| replacement | |||||
|
13
|
13
09482-00299-000 PLUG,SPARK(BPR6ES)Plug, spark (bpr6es) BOSCH; 1993-05-01~1995-09-01 |
09482-00299-000 |
from US $5.37 |
||
|
14
|
14
11161-83000-000 CASE,DISTRIBUTOR1993-05-01~1995-09-01 |
11161-83000-000 |
from US $25.16 |
||
|
15
|
15
09280-56004-000 O RING(D:1.9,ID:55.5)1993-05-01~1995-09-01 |
09280-56004-000 |
from US $1.48 |
||
|
16
|
16
01550-06253-000
Bolt (6x25)
1993-05-01~1995-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0625B-000 BoltBolt, head cover 1993-05-01~1995-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
16
|
16
01550-0625A-000 BoltBolt 1993-05-01~1995-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
01550-06503-000
Bolt
1993-05-01~1995-09-01 |
01550-06503-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0650B-000 Bolt1993-05-01~1995-09-01 |
01550-0650B-000 |
US $15.50 |
||
|
17
|
17
01550-0650A-000 BoltBolt (6x50) 1993-05-01~1995-09-01 |
01550-0650A-000 |
from US $0.96 |
||
|
18
|
18
16920-60A02-000 Cap,oil filler1993-05-01~1995-09-01 |
16920-60A02-000 |
from US $17.35 |
||
|
19
|
19
15317-77901-000
Plate,fuel pump
1993-05-01~1995-09-01 |
15317-77901-000 |
— | ||
| replacement | |||||
|
19
|
19
15317-7790V-000 PLATE,FUEL PUMP1993-05-01~1995-09-01 |
15317-7790V-000 |
US $5.81 |
||
|
20
|
20
15319-63B00-000 GASKET,FUEL PUMP1993-05-01~1995-09-01 |
15319-63B00-000 |
from US $1.62 |
||
|
21
|
21
01421-08163-000
Bolt, stud
1993-05-01~1994-04-01 |
01421-08163-000 |
— | ||
| replacement | |||||
|
21
|
21
01421-0816A-000 BOLT,STUD1993-05-01~1994-04-01 |
01421-0816A-000 |
from US $1.28 |
||
|
22
|
22
08316-10083-000
Nut
1993-05-01~1994-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1008B-000 NUT1993-05-01~1994-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
23
|
23
01550-08163-000
Bolt, holder
1994-04-01~1995-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0816B-000 Bolt1994-04-01~1995-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
23
|
23
01550-0816A-000 BoltBolt, rear 1994-04-01~1995-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
24
|
24
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>170; 1993-05-01~1995-09-01 |
09355-13207-600 |
from US $12.46 |
||
|
25
|
25
11194-80C00-000
PROTECTOR,BREATHER HOSE
1993-05-01~1995-09-01 |
11194-80C00-000 |
— | ||
|
26
|
26
09401-18402-000 CLAMP1993-05-01~1995-09-01 |
09401-18402-000 |
from US $1.10 |
||
| replacement | |||||
|
26
|
26
09401-18404-000 CLIP1993-05-01~1995-09-01 |
09401-18404-000 |
from US $1.26 |
||
