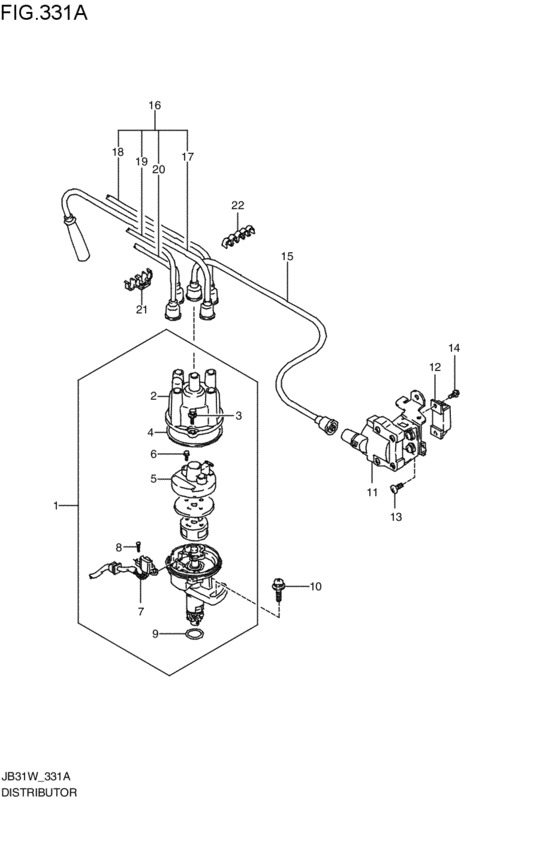

distributor (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80C10-000
DISTRIBUTOR ASSY
1993-05-01~1995-09-01 |
33100-80C10-000 |
— | ||
|
2
|
2
33321-80C10-000
CAP,DISTRIBUTOR
1993-05-01~1995-09-01 |
33321-80C10-000 |
— | ||
|
3
|
3
01580-05203-000
BOLT
1993-05-01~1995-09-01 |
01580-05203-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-0520B-000 Bolt1993-05-01~1995-09-01 |
01580-0520B-000 |
from US $1.19 |
||
|
4
|
4
33324-80C10-000 GASKET,CAP1993-05-01~1995-09-01 |
33324-80C10-000 |
US $6.23 |
||
|
5
|
5
33310-80C10-000
ROTOR ASSY,DISTRIBUTOR
1993-05-01~1995-09-01 |
33310-80C10-000 |
— | ||
|
6
|
6
33152-80C10-000 SCREW1993-05-01~1995-09-01 |
33152-80C10-000 |
US $1.44 |
||
|
7
|
7
33140-80C10-000 SENSOR ASSY,CRANK POSITION1993-05-01~1995-09-01 |
33140-80C10-000 |
from US $277.70 |
||
|
8
|
8
02112-34163-000
Screw
1993-05-01~1995-09-01 |
02112-34163-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3416B-000 SCREW1993-05-01~1995-09-01 |
02112-3416B-000 |
from US $3.47 |
||
|
9
|
9
33278-85310-000 O-RING1993-05-01~1995-09-01 |
33278-85310-000 |
from US $2.74 |
||
|
10
|
10
09138-08003-000 SCREW(8X30)1993-05-01~1995-09-01 |
09138-08003-000 |
from US $1.49 |
||
|
11
|
11
33410-80C10-000 COIL ASSY,IGNITION1993-05-01~1995-09-01 |
33410-80C10-000 |
US $186.26 |
||
|
12
|
12
33370-60G10-000 IGNITER ASSY1993-05-01~1995-09-01 |
33370-60G10-000 |
from US $434.97 |
||
|
13
|
13
02142-06103-000
Screw
1993-05-01~1995-09-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1993-05-01~1995-09-01 |
02142-0610B-000 |
from US $0.76 |
||
|
13
|
13
02142-0610A-000 SCREW1993-05-01~1995-09-01 |
02142-0610A-000 |
from US $0.96 |
||
|
14
|
14
02112-35103-000
Screw 5x10
1993-05-01~1995-09-01 |
02112-35103-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-3510B-000 SCREW1993-05-01~1995-09-01 |
02112-3510B-000 |
from US $0.76 |
||
|
15
|
15
33710-83020-000 CORD,HT NO.11993-05-01~1995-09-01 |
33710-83020-000 |
from US $11.04 |
||
|
16
|
16
33705-83020-000
CORD SET HIGH TENSION
1993-05-01~1995-09-01 |
33705-83020-000 |
— | ||
| replacement | |||||
|
16
|
16
33705-80C00-000 CORD SET,HIGH TENSION1993-05-01~1995-09-01 |
33705-80C00-000 |
US $75.20 |
||
|
17
|
17
33730-60C30-000
CORD,HT NO.2
1993-05-01~1995-09-01 |
33730-60C30-000 |
— | ||
|
18
|
18
33740-60C30-000
CORD,HT NO.3
1993-05-01~1995-09-01 |
33740-60C30-000 |
— | ||
|
19
|
19
33750-83020-000
コード,ハイテンション,NO.4
1993-05-01~1995-09-01 |
33750-83020-000 |
— | ||
| replacement | |||||
|
19
|
19
33750-80C00-000 CORD,HT NO.41993-05-01~1995-09-01 |
33750-80C00-000 |
US $19.01 |
||
|
20
|
20
33760-85220-000 CORD,HT NO.51993-05-01~1995-09-01 |
33760-85220-000 |
from US $11.34 |
||
|
21
|
21
33884-86510-000 CLAMP1993-05-01~1995-09-01 |
33884-86510-000 |
from US $0.97 |
||
|
22
|
22
09408-00116-000 CLIP1993-05-01~1995-09-01 |
09408-00116-000 |
US $44.90 |
||
