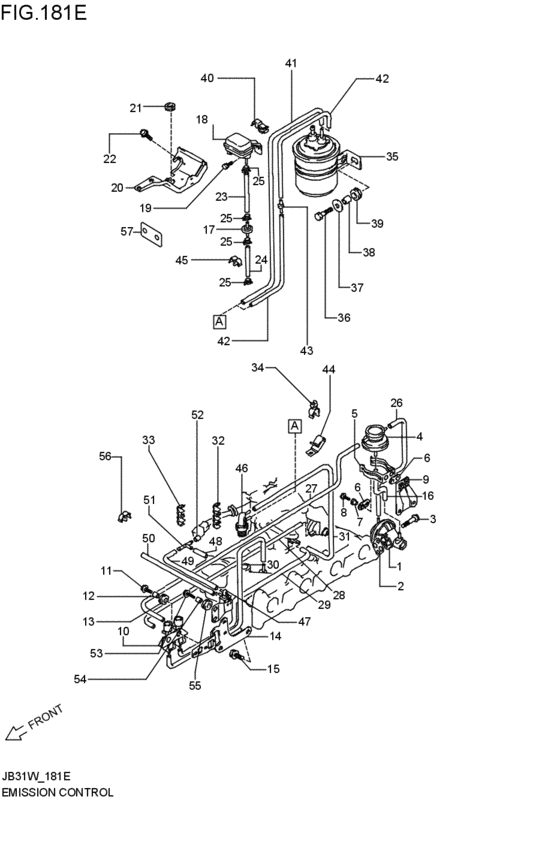

emission control (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-80C00-000 VALVE,EGR1993-05-01~1995-09-01 |
18111-80C00-000 |
US $173.70 |
||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVE1993-05-01~1995-09-01 |
18529-60A00-000 |
from US $0.90 |
||
|
3
|
3
01550-06453-000
Bolt
1993-05-01~1995-09-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0645A-000 Bolt1993-05-01~1995-09-01 |
01550-0645A-000 |
from US $0.96 |
||
|
4
|
4
18112-60B00-000 MODULATOR ASSY,EGR1993-05-01~1995-09-01 |
18112-60B00-000 |
US $99.57 |
||
|
5
|
5
13814-82000-000 CLAMP,MODULATOR1993-05-01~1995-09-01 |
13814-82000-000 |
US $6.40 |
||
|
6
|
6
13817-82000-000 CUSHION,MODULATOR CLAMP1993-05-01~1995-09-01 |
13817-82000-000 |
US $2.87 |
||
|
7
|
7
13815-82000-000 WASHER,MODULATOR CLAMP1993-05-01~1995-09-01 |
13815-82000-000 |
US $2.72 |
||
|
8
|
8
02142-06163-000
Screw
1993-05-01~1995-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0616A-000 SCREW1993-05-01~1995-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
9
|
9
18412-80C01-000
ブラケット,モジュレータ
1993-05-01~1995-09-01 |
18412-80C01-000 |
— | ||
|
10
|
10
18117-61A00-000
VALVE,VACUUM SWITCHING
1993-05-01~1995-09-01 |
18117-61A00-000 |
— | ||
|
11
|
11
09136-06086-000
スクリュ,6X14
1993-05-01~1995-09-01 |
09136-06086-000 |
— | ||
| replacement | |||||
|
11
|
11
09136-06133-000 BOLT(6X16)Screw 1993-05-01~1995-09-01 |
09136-06133-000 |
from US $0.77 |
||
|
12
|
12
09180-06106-000 SPACER(6.8X10X7)1993-05-01~1995-09-01 |
09180-06106-000 |
from US $0.92 |
||
|
13
|
13
09308-10004-000 GROMMET1993-05-01~1995-09-01 |
09308-10004-000 |
from US $0.90 |
||
|
14
|
14
18417-80C01-000
BRACKET,VSV
1993-05-01~1995-09-01 |
18417-80C01-000 |
— | ||
|
15
|
15
01550-10163-000
Bolt
1993-05-01~1995-09-01 |
01550-10163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-1016B-000 BoltPlug, oil gallery 1993-05-01~1995-09-01 |
01550-1016B-000 |
from US $1.12 |
||
|
15
|
15
01550-1016A-000 BoltPlug, oil gallery 1993-05-01~1995-09-01 |
01550-1016A-000 |
from US $4.96 |
||
|
16
|
16
18471-80C00-000
Hose,egr to modulator
1993-05-01~1995-09-01 |
18471-80C00-000 |
— | ||
|
17
|
17
27965-85400-000 FILTER,VSVFilter assy, vsv 1993-05-01~1995-09-01 |
27965-85400-000 |
from US $10.40 |
||
|
18
|
18
18590-80C30-000 SENSOR,PRESSURE1993-05-01~1995-09-01 |
18590-80C30-000 |
US $246.56 |
||
|
19
|
19
02142-05083-000
Screw
1993-05-01~1995-09-01 |
02142-05083-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-0508A-000 SCREWScrew, cap 1993-05-01~1995-09-01 |
02142-0508A-000 |
from US $0.76 |
||
|
20
|
20
18417-83C20-000
Bracket,vsv
1993-05-01~1995-09-01 |
18417-83C20-000 |
— | ||
|
21
|
21
09308-16003-000
GROMMET
1993-05-01~1995-09-01 |
09308-16003-000 |
— | ||
|
22
|
22
01550-06203-000
Bolt
1993-05-01~1995-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0620B-000 BoltBolt, inspection cap 1993-05-01~1995-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
09355-35754-600
ホース,3.5X7.5X600
L:600>50; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
23
|
23
09355-35754-601
HOSE(3.5X7.5X601)
L:600>50; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
23
|
23
09355-35006-601 Hose(3.5X7.5X601)L:600>50; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
24
|
24
09355-35754-600
ホース,3.5X7.5X600
L:600>230; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
24
|
24
09355-35754-601
HOSE(3.5X7.5X601)
L:600>230; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
24
|
24
09355-35006-601 Hose(3.5X7.5X601)L:600>230; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
25
|
25
09401-06405-000 CLIP1993-05-01~1995-09-01 |
09401-06405-000 |
from US $1.12 |
||
|
26
|
26
09355-35754-600
ホース,3.5X7.5X600
L:600>150; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
26
|
26
09355-35754-601
HOSE(3.5X7.5X601)
L:600>150; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
26
|
26
09355-35006-601 Hose(3.5X7.5X601)L:600>150; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
27
|
27
09355-35754-600
ホース,3.5X7.5X600
L:600>400; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
L:600>400; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601)L:600>400; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
28
|
28
09355-35754-600
ホース,3.5X7.5X600
L:600>280; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
28
|
28
09355-35754-601
HOSE(3.5X7.5X601)
L:600>280; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
28
|
28
09355-35006-601 Hose(3.5X7.5X601)L:600>280; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
29
|
29
09355-35754-600
ホース,3.5X7.5X600
L:600>250; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
29
|
29
09355-35754-601
HOSE(3.5X7.5X601)
L:600>250; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
29
|
29
09355-35006-601 Hose(3.5X7.5X601)L:600>250; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
30
|
30
09355-35754-600
ホース,3.5X7.5X600
L:600>180; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
30
|
30
09355-35754-601
HOSE(3.5X7.5X601)
L:600>180; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
30
|
30
09355-35006-601 Hose(3.5X7.5X601)L:600>180; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
31
|
31
09355-35754-600
ホース,3.5X7.5X600
L:600>130; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
31
|
31
09355-35754-601
HOSE(3.5X7.5X601)
L:600>130; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
31
|
31
09355-35006-601 Hose(3.5X7.5X601)L:600>130; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
32
|
32
09408-00116-000 CLIP1993-05-01~1995-09-01 |
09408-00116-000 |
US $44.90 |
||
|
33
|
33
09408-00035-000 CLIPClamp 1993-05-01~1995-09-01 |
09408-00035-000 |
from US $1.10 |
||
|
34
|
34
09408-00060-000 CLAMP1993-05-01~1995-09-01 |
09408-00060-000 |
from US $0.38 |
||
|
35
|
35
18560-80C00-000
CANISTER
1993-05-01~1995-09-01 |
18560-80C00-000 |
— | ||
|
36
|
36
01500-08203-000
Bolt
1993-05-01~1995-09-01 |
01500-08203-000 |
— | ||
| replacement | |||||
|
36
|
36
01500-0820A-000 Bolt1993-05-01~1995-09-01 |
01500-0820A-000 |
from US $0.80 |
||
|
37
|
37
09160-08133-000
Washer
1993-05-01~1995-09-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
37
|
37
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) 1993-05-01~1995-09-01 |
09160-08151-000 |
from US $0.91 |
||
|
38
|
38
09180-08185-000 SPACER(8.5X12X6)1993-05-01~1995-09-01 |
09180-08185-000 |
US $23.20 |
||
|
39
|
39
09320-12011-000
CUSHION
1993-05-01~1995-09-01 |
09320-12011-000 |
— | ||
| replacement | |||||
|
39
|
39
09320-12090-000 Cushion(11.8X25X7.5)1993-05-01~1995-09-01 |
09320-12090-000 |
from US $1.67 |
||
|
40
|
40
09408-00111-000 CLAMP1993-05-01~1995-09-01 |
09408-00111-000 |
US $2.08 |
||
|
41
|
41
09355-35754-00B
HOSE(3.5X7.5X2000)
L:2000>1050; 1993-05-01~1995-09-01 |
09355-35754-00B |
— | ||
| replacement | |||||
|
41
|
41
09355-35006-00B Hose(3.5X7.5X2000)L:2000>1050; 1993-05-01~1995-09-01 |
09355-35006-00B |
US $28.80 |
||
|
42
|
42
09355-35754-600
ホース,3.5X7.5X600
L:600>280; 1993-05-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
42
|
42
09355-35754-601
HOSE(3.5X7.5X601)
L:600>280; 1993-05-01~1995-09-01 |
09355-35754-601 |
— | ||
|
42
|
42
09355-35006-601 Hose(3.5X7.5X601)L:600>280; 1993-05-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
43
|
43
09367-04008-000 2 WAY1993-05-01~1995-09-01 |
09367-04008-000 |
US $32 |
||
|
44
|
44
09403-09315-000 CLAMP1993-05-01~1995-09-01 |
09403-09315-000 |
US $19.10 |
||
|
45
|
45
09408-00033-000 CLAMPClamp 1993-05-01~1995-09-01 |
09408-00033-000 |
from US $1.60 |
||
|
46
|
46
18122-80C00-000
バルブ,BVS
1993-05-01~1995-09-01 |
18122-80C00-000 |
— | ||
| replacement | |||||
|
46
|
46
18122-80C01-000 VALVE,BVS1993-05-01~1995-09-01 |
18122-80C01-000 |
US $44.90 |
||
|
47
|
47
18117-80C00-000 VALVE,ISC1993-05-01~1995-09-01 |
18117-80C00-000 |
US $220.40 |
||
|
48
|
48
09354-70133-600 Hose (7x13x600)L:600>50; 1993-05-01~1995-09-01 |
09354-70133-600 |
US $14.63 |
||
| replacements | |||||
|
48
|
48
44421-12FR0-000 HOSEL:600>50; 1993-05-01~1995-09-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
48
|
48
09401-11415-000 CLIPL:600>50; 1993-05-01~1995-09-01 |
09401-11415-000 |
from US $1.06 |
||
|
48
|
48
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>50; 1993-05-01~1995-09-01 |
09355-70125-600 |
from US $6.54 |
||
|
48
|
48
09401-11407-000
CLIP
L:600>50; 1993-05-01~1995-09-01 |
09401-11407-000 |
— | ||
|
49
|
49
09359-54111-600 HOSE(5.4X11.4X600)Hose, canister & carb L:600>300; 1993-05-01~1995-09-01 |
09359-54111-600 |
from US $22.40 |
||
|
50
|
50
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>340; 1993-05-01~1995-09-01 |
09355-54115-600 |
from US $7.20 |
||
|
51
|
51
18342-80C10-000
HOSE,ISC 3WAY
1993-05-01~1995-09-01 |
18342-80C10-000 |
— | ||
|
52
|
52
09251-07003-000 CAP(OD:11.5)1993-05-01~1995-09-01 |
09251-07003-000 |
from US $0.72 |
||
|
53
|
53
09136-06086-000
スクリュ,6X14
1993-05-01~1995-09-01 |
09136-06086-000 |
— | ||
| replacement | |||||
|
53
|
53
09136-06133-000 BOLT(6X16)Screw 1993-05-01~1995-09-01 |
09136-06133-000 |
from US $0.77 |
||
|
54
|
54
09180-06106-000 SPACER(6.8X10X7)1993-05-01~1995-09-01 |
09180-06106-000 |
from US $0.92 |
||
|
55
|
55
09308-10004-000 GROMMET1993-05-01~1995-09-01 |
09308-10004-000 |
from US $0.90 |
||
|
56
|
56
09408-00100-000 CLIP1993-05-01~1995-09-01 |
09408-00100-000 |
US $19.50 |
||
|
57
|
57
18493-83C00-000
フィルム,クラッチケーブルホール
1993-05-01~1995-09-01 |
18493-83C00-000 |
— | ||
