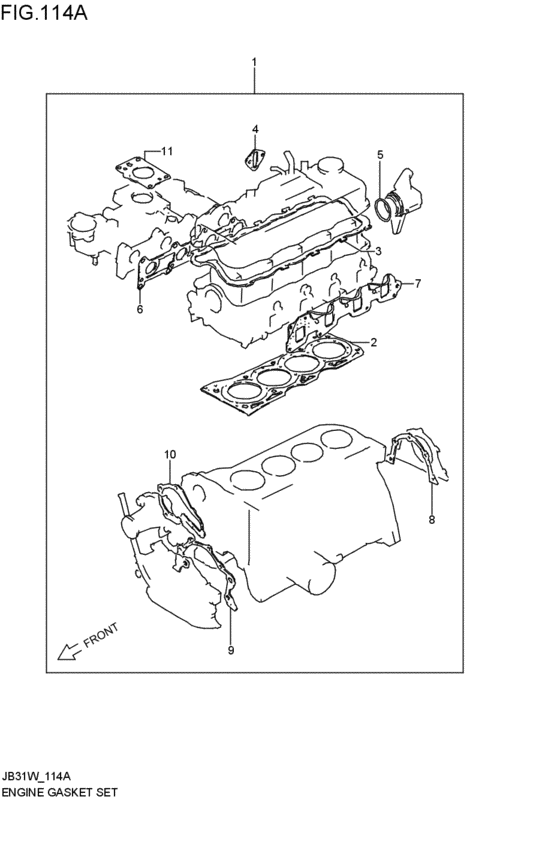

engine gasket set (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-83870-000
GASKET SET ENGINE
1993-05-01~1995-09-01 |
11400-83870-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-83873-000
GASKET SET,ENGINE
1993-05-01~1995-09-01 |
11400-83873-000 |
— | ||
|
2
|
2
11141-86502-000 GASKET,CYL HEADGasket, cylinder head 1993-05-01~1995-09-01 |
11141-86502-000 |
from US $56.30 |
||
|
3
|
3
11189-82600-000 GASKET,CYL HEAD COVER1993-05-01~1995-09-01 |
11189-82600-000 |
from US $16.97 |
||
|
4
|
4
15319-63B00-000 GASKET,FUEL PUMP1993-05-01~1995-09-01 |
15319-63B00-000 |
from US $1.62 |
||
|
5
|
5
09280-56004-000 O RING(D:1.9,ID:55.5)1993-05-01~1995-09-01 |
09280-56004-000 |
from US $1.48 |
||
|
6
|
6
13119-63B00-000
GASKET INTAKE MANIFOLD
1993-05-01~1995-09-01 |
13119-63B00-000 |
— | ||
| replacement | |||||
|
6
|
6
13119-63B11-000 GASKET,INTK MANF1993-05-01~1995-09-01 |
13119-63B11-000 |
from US $10.62 |
||
|
7
|
7
14140-83010-000 GASKET,EXH MANF1993-05-01~1995-09-01 |
14140-83010-000 |
from US $28.26 |
||
|
8
|
8
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing 1993-05-01~1995-09-01 |
11349-60A01-000 |
from US $6.62 |
||
|
9
|
9
16119-82011-000
ガスケット,オイルポンプ
1993-05-01~1995-09-01 |
16119-82011-000 |
— | ||
| replacement | |||||
|
9
|
9
16119-82012-000 GASKET,OIL PUMP1993-05-01~1995-09-01 |
16119-82012-000 |
US $23.20 |
||
|
10
|
10
17431-60A00-000 GASKET,WATER PUMP1993-05-01~1995-09-01 |
17431-60A00-000 |
from US $5.12 |
||
|
11
|
11
13421-61A00-000 GASKET,THROTTLE BODY1993-05-01~1995-09-01 |
13421-61A00-000 |
US $12.32 |
||
