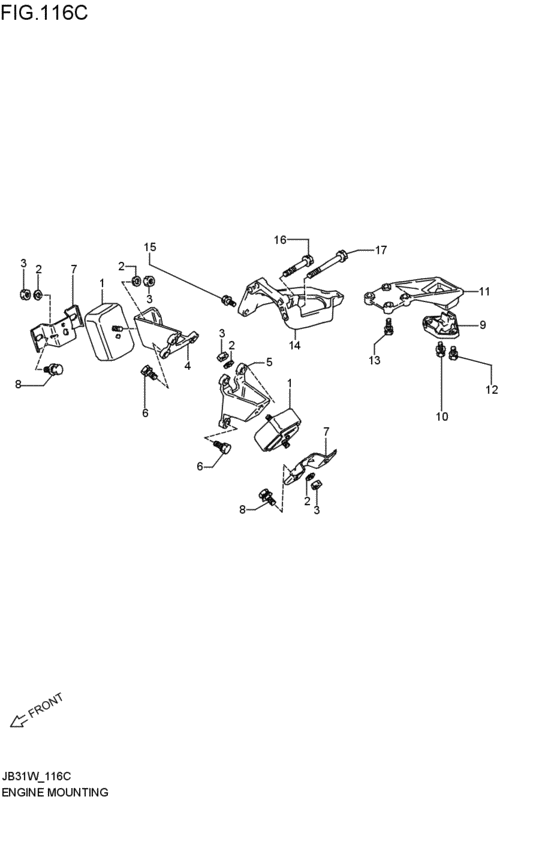

engine mounting (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-82C00-000 MOUNTING,ENG FR1993-05-01~1995-09-01 |
11610-82C00-000 |
from US $48.22 |
||
|
2
|
2
08321-01103-000
Washer
1993-05-01~1995-09-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1993-05-01~1995-09-01 |
08321-0110B-000 |
from US $0.96 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0110A-000 |
from US $0.96 |
||
|
3
|
3
08310-00103-000
Nut
1993-05-01~1995-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT1993-05-01~1995-09-01 |
08310-0010B-000 |
from US $0.83 |
||
|
3
|
3
08310-0010A-000 NUT1993-05-01~1995-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-83001-000
BRACKET,ENG FR MTG,R
1993-05-01~1995-09-01 |
11641-83001-000 |
— | ||
|
5
|
5
11651-83000-000
BRACKET,ENG FR MTG,L
1993-05-01~1995-09-01 |
11651-83000-000 |
— | ||
|
6
|
6
01570-10303-000
Bolt
1993-05-01~1995-09-01 |
01570-10303-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-1030A-000 Bolt1993-05-01~1995-09-01 |
01570-1030A-000 |
from US $1.12 |
||
|
7
|
7
11661-83000-000 BRACKET,ENG FR MTG FRAME SIDE1993-05-01~1995-09-01 |
11661-83000-000 |
from US $2.43 |
||
|
8
|
8
09118-10052-000 BOLT(10X30)1993-05-01~1995-09-01 |
09118-10052-000 |
from US $1.44 |
||
|
9
|
9
11710-80010-000
MOUNTING ENG REAR
1993-05-01~1995-09-01 |
11710-80010-000 |
— | ||
| replacement | |||||
|
9
|
9
11710-80011-000 MOUNTING,ENG RR1993-05-01~1995-09-01 |
11710-80011-000 |
from US $34.58 |
||
|
10
|
10
01580-08203-000
Bolt, rear
1993-05-01~1995-09-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0820A-000 Bolt1993-05-01~1995-09-01 |
01580-0820A-000 |
from US $0.91 |
||
|
11
|
11
11741-80010-000 BRACKET,ENG RR MTG5MT; 1993-05-01~1995-09-01 |
11741-80010-000 |
from US $24.35 |
||
|
12
|
12
01570-08163-000
Bolt
1993-05-01~1995-09-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
12
|
12
01570-0816A-000 Bolt1993-05-01~1995-09-01 |
01570-0816A-000 |
from US $1.12 |
||
|
13
|
13
01570-08303-000
Bolt, rear
5MT; 1993-05-01~1995-09-01 |
01570-08303-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-0830A-000 Bolt5MT; 1993-05-01~1995-09-01 |
01570-0830A-000 |
US $1.12 |
||
