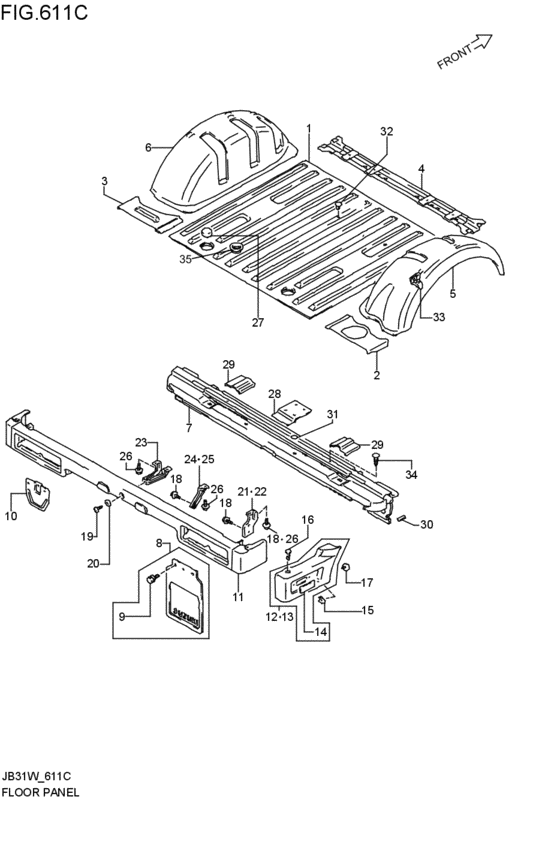

floor panel (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62111-83090-000
パネル,リヤフロア
1993-05-01~1995-09-01 |
62111-83090-000 |
— | ||
| replacements | |||||
|
1
|
1
62111-83091-000
PANEL,REAR FLOOR
1993-05-01~1995-09-01 |
62111-83091-000 |
— | ||
|
1
|
1
65971-77E10-000 CAP,OD:301993-05-01~1995-09-01 |
65971-77E10-000 |
from US $2.23 |
||
|
1
|
1
62111-83091-000
PANEL,REAR FLOOR
1995-09-01~1995-09-01 |
62111-83091-000 |
— | ||
|
2
|
2
62112-80000-000 PANEL,RR FLOOR SIDE RH1993-05-01~1995-09-01 |
62112-80000-000 |
US $29.60 |
||
|
3
|
3
62113-80000-000 PANEL,RR FLOOR SIDE LH1993-05-01~1995-09-01 |
62113-80000-000 |
US $29.60 |
||
|
4
|
4
62120-83301-000 REINFORCEMENT,RR FL1993-05-01~1995-09-01 |
62120-83301-000 |
US $113.60 |
||
|
5
|
5
62211-70A00-000 PANEL,RR WHEEL HSG,R1993-05-01~1995-09-01 |
62211-70A00-000 |
US $112.80 |
||
|
6
|
6
62311-70A00-000 PANEL,RR WHEEL HSG,L1993-05-01~1995-09-01 |
62311-70A00-000 |
US $112.80 |
||
|
7
|
7
62500-70A20-000 MEMBER ASSY,RR FL TAILSTD,SA; 1993-05-01~1995-09-01 |
62500-70A20-000 |
US $922.24 |
||
|
8
|
8
57600-80813-000
MUD FLAP SET
1993-05-01~1995-09-01 |
57600-80813-000 |
— | ||
| replacement | |||||
|
8
|
8
57600-80814-000 FLAP SET,RR1993-05-01~1995-09-01 |
57600-80814-000 |
from US $40.97 |
||
|
9
|
9
09116-06098-000
Bolt
1993-05-01~1995-09-01 |
09116-06098-000 |
— | ||
| replacement | |||||
|
9
|
9
09116-06098-XC0 BOLT(6X14)1993-05-01~1995-09-01 |
09116-06098-XC0 |
from US $3.37 |
||
|
10
|
10
72272-80000-000 EXTENSION,MUD FLAP BRKT,L1993-05-01~1995-09-01 |
72272-80000-000 |
from US $7.22 |
||
|
11
|
11
71810-82C00-000 BUMPER,RRプライマリー,キジショク; 1993-05-01~1995-09-01 |
71810-82C00-000 |
from US $166.86 |
||
|
12
|
12
71830-70A20-000 PROTECTOR,RR CORNER,R1993-05-01~1995-09-01 |
71830-70A20-000 |
from US $39.62 |
||
|
13
|
13
71840-70A20-000 PROTECTOR,RR CORNER,L1993-05-01~1995-09-01 |
71840-70A20-000 |
from US $45.32 |
||
|
14
|
14
71833-70A10-000 CAP,BUMPER CORNER PROTECTOR1993-05-01~1995-09-01 |
71833-70A10-000 |
from US $2.81 |
||
|
15
|
15
09148-05013-000 NUT1993-05-01~1995-09-01 |
09148-05013-000 |
from US $0.36 |
||
|
16
|
16
09409-07311-000 CLIP1993-05-01~1995-09-01 |
09409-07311-000 |
from US $0.97 |
||
|
17
|
17
09136-05036-000 SCREW(5X16)1993-05-01~1995-09-01 |
09136-05036-000 |
US $11.40 |
||
|
18
|
18
01550-06123-000
Bolt
1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612B-000 BoltBolt, clamp 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 Bolt1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
09125-06022-000 SCREW(6X16)Screw (6x16) 1993-05-01~1995-09-01 |
09125-06022-000 |
from US $1.24 |
||
|
20
|
20
09161-06008-000 WASHER(6.5X13X1)1993-05-01~1995-09-01 |
09161-06008-000 |
from US $1.10 |
||
|
21
|
21
71821-80300-000
BRACKET BUMPER SIDE
1993-05-01~1995-09-01 |
71821-80300-000 |
— | ||
| replacement | |||||
|
21
|
21
71821-80301-000 BRACKET,RR BUMPER SIDE,R1993-05-01~1995-09-01 |
71821-80301-000 |
from US $3.71 |
||
|
22
|
22
71822-80300-000
ブラケット,リヤバンパサイド,レフト
1993-05-01~1995-09-01 |
71822-80300-000 |
— | ||
| replacement | |||||
|
22
|
22
71822-80301-000 BRACKET,RR BUMPER SIDE,L1993-05-01~1995-09-01 |
71822-80301-000 |
US $12.80 |
||
|
23
|
23
71823-83301-000 BRACKET,RR BUMPER1993-05-01~1995-09-01 |
71823-83301-000 |
US $3.89 |
||
|
24
|
24
71824-83300-000 BRACKET,RR BUMPER MIDDLE,R1993-05-01~1995-09-01 |
71824-83300-000 |
from US $3.26 |
||
|
25
|
25
71825-83300-000 BRACKET,RR BUMPER MIDDLE,L1993-05-01~1995-09-01 |
71825-83300-000 |
from US $3.26 |
||
|
26
|
26
01550-06123-000
Bolt
1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0612B-000 BoltBolt, clamp 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
26
|
26
01550-0612A-000 Bolt1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
27
|
27
09250-40004-000 CAP(OD:48.5)1993-05-01~1995-09-01 |
09250-40004-000 |
US $1.60 |
||
|
28
|
28
62115-80070-000
REINFORCEMENT,RR SEAT STRIKER
1993-05-01~1995-09-01 |
62115-80070-000 |
— | ||
|
29
|
29
62114-83001-000 REINFORCEMENT,RR SEAT CUSHION1993-05-01~1995-09-01 |
62114-83001-000 |
US $11.20 |
||
|
30
|
30
72876-80000-000
SEAL,TAIL MEMBER CORNER
1993-05-01~1995-09-01 |
72876-80000-000 |
— | ||
|
31
|
31
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 1993-05-01~1995-09-01 |
84761-50X50-000 |
from US $6.72 |
||
|
32
|
32
09250-06010-000 CAP(OD:11)1993-05-01~1995-09-01 |
09250-06010-000 |
US $1.28 |
||
|
33
|
33
62212-80080-000 BRACKET,INLET PIPE PROTECTOR1993-05-01~1995-09-01 |
62212-80080-000 |
US $8.98 |
||
|
34
|
34
09409-05309-5ES CLIP(BLACK)ブラック; 1993-05-01~1995-09-01 |
09409-05309-5ES |
from US $1.15 |
||
|
35
|
35
65971-77E00-000
Cap, rear floor drain
1995-09-01~1995-09-01 |
65971-77E00-000 |
— | ||
| replacement | |||||
|
35
|
35
65971-77E10-000 CAP,OD:301995-09-01~1995-09-01 |
65971-77E10-000 |
from US $2.23 |
||
