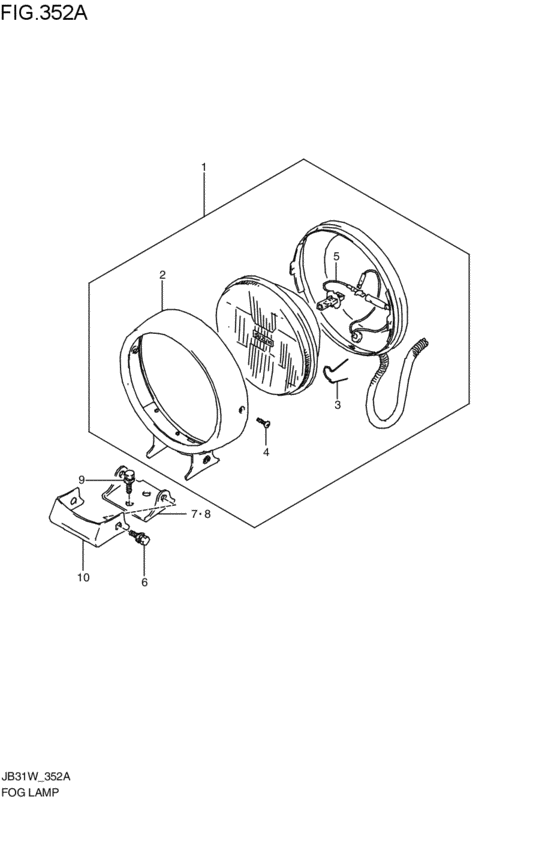

fog light (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-80C00-000
Lamp assy,fog
1993-05-01~1995-09-01 |
35500-80C00-000 |
— | ||
|
2
|
2
35541-60A10-000
リム,フォグランプ
1993-05-01~1995-09-01 |
35541-60A10-000 |
— | ||
|
3
|
3
35545-60A10-000
スプリング,サポート
1993-05-01~1995-09-01 |
35545-60A10-000 |
— | ||
|
4
|
4
35546-60A10-000
スクリュ
1993-05-01~1995-09-01 |
35546-60A10-000 |
— | ||
|
5
|
5
09471-12106-000 BULB(12V55W,H3)1993-05-01~1995-09-01 |
09471-12106-000 |
from US $14.56 |
||
| replacement | |||||
|
5
|
5
09471-12106-CDN
Bulb,h3 64151
1993-05-01~1995-09-01 |
09471-12106-CDN |
— | ||
|
6
|
6
01550-08203-000
Bolt
1993-05-01~1995-09-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0820B-000 Bolt1993-05-01~1995-09-01 |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
01550-0820A-000 BoltBolt, funnel bracket 1993-05-01~1995-09-01 |
01550-0820A-000 |
from US $1.12 |
||
|
7
|
7
35525-57B01-000
ブラケット,フォグランプ,ライト
1993-05-01~1995-09-01 |
35525-57B01-000 |
— | ||
|
8
|
8
35565-57B01-000
ブラケット,フォグランプ,レフト
1993-05-01~1995-09-01 |
35565-57B01-000 |
— | ||
|
9
|
9
01580-08203-000
Bolt, rear
1993-05-01~1995-09-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0820A-000 Bolt1993-05-01~1995-09-01 |
01580-0820A-000 |
from US $0.91 |
||
|
10
|
10
35544-60A20-000
カバー,フォグランプブラケット
1993-05-01~1995-09-01 |
35544-60A20-000 |
— | ||
