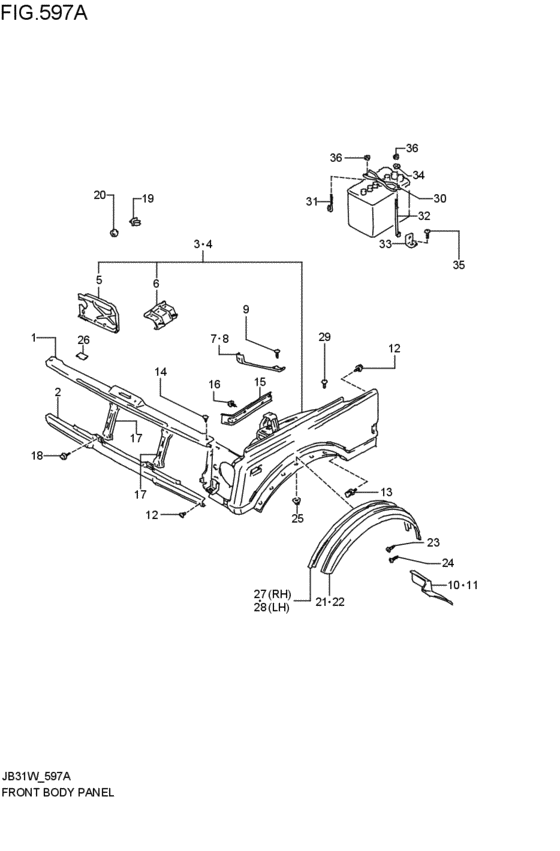

front body panel (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58100-70A02-000 MEMBER,FR UPR1993-05-01~1995-09-01 |
58100-70A02-000 |
from US $116.55 |
||
|
2
|
2
58200-83002-000 MEMBER,FR LWR1993-05-01~1995-09-01 |
58200-83002-000 |
from US $50.92 |
||
|
3
|
3
58600-52C80-000
パネルアッシ,フロントフェンダ,ライト
1993-05-01~1995-09-01 |
58600-52C80-000 |
— | ||
| replacement | |||||
|
3
|
3
58600-52CV2-000 PANEL ASSY,FR FENDER,R1993-05-01~1995-09-01 |
58600-52CV2-000 |
US $822.40 |
||
|
4
|
4
58800-52C80-000
パネルアッシ,フロントフェンダ,レフト
1993-05-01~1995-09-01 |
58800-52C80-000 |
— | ||
| replacement | |||||
|
4
|
4
58800-52CV2-000 PANEL ASSY,FR FENDER,L1993-05-01~1995-09-01 |
58800-52CV2-000 |
US $822.40 |
||
|
5
|
5
58763-83001-000 BAFFLE,FR FENDER1993-05-01~1995-09-01 |
58763-83001-000 |
from US $5.38 |
||
|
6
|
6
58726-83001-000 BRACKET,AIR CLNR LOWER1993-05-01~1995-09-01 |
58726-83001-000 |
from US $3.51 |
||
|
7
|
7
58723-83001-000 MEMBER,HEADLAMP HSG,R1993-05-01~1995-09-01 |
58723-83001-000 |
from US $7.83 |
||
|
8
|
8
58923-83001-000 MEMBER,HEADLAMP HSG,L1993-05-01~1995-09-01 |
58923-83001-000 |
from US $6.92 |
||
|
9
|
9
09139-06036-000 SCREW(6X20)1993-05-01~1995-09-01 |
09139-06036-000 |
from US $0.96 |
||
|
10
|
10
58771-80001-000 LINER,FR FENDER,R1993-05-01~1995-09-01 |
58771-80001-000 |
from US $1.80 |
||
|
11
|
11
58971-80001-000 LINER,FR FENDER,L1993-05-01~1995-09-01 |
58971-80001-000 |
US $11.36 |
||
|
12
|
12
09139-06036-000 SCREW(6X20)1993-05-01~1995-09-01 |
09139-06036-000 |
from US $0.96 |
||
|
13
|
13
09118-06106-000 BOLT(6X16)1993-05-01~1995-09-01 |
09118-06106-000 |
from US $1.12 |
||
|
14
|
14
09139-06036-000 SCREW(6X20)1993-05-01~1995-09-01 |
09139-06036-000 |
from US $0.96 |
||
|
15
|
15
65980-82C00-000
ブラケット,ウォッシャタンク
1993-05-01~1995-09-01 |
65980-82C00-000 |
— | ||
| replacement | |||||
|
15
|
15
65980-82C01-000
BRACKET,WASHER TANK
1993-05-01~1995-09-01 |
65980-82C01-000 |
— | ||
|
16
|
16
09139-06036-000 SCREW(6X20)1993-05-01~1995-09-01 |
09139-06036-000 |
from US $0.96 |
||
|
17
|
17
72411-82C00-000 MEMBER,FR PANEL1993-05-01~1995-09-01 |
72411-82C00-000 |
from US $17.48 |
||
|
18
|
18
01550-06103-000
Bolt, front
1993-05-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0610B-000 BoltBolt 1993-05-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
18
|
18
01550-0610A-000 Bolt1993-05-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
19
|
19
09403-09309-000 CLAMPClamp, switch housing 1993-05-01~1995-09-01 |
09403-09309-000 |
from US $1.08 |
||
|
20
|
20
09308-14006-000 GROMMET1993-05-01~1995-09-01 |
09308-14006-000 |
from US $2.88 |
||
|
21
|
21
58630-70A00-000 EXTENSION,FR FENDER,R1993-05-01~1995-09-01 |
58630-70A00-000 |
from US $126.09 |
||
|
22
|
22
58830-70A00-000 EXTENSION,FR FENDER,L1993-05-01~1995-09-01 |
58830-70A00-000 |
from US $126.09 |
||
|
23
|
23
09139-06036-000 SCREW(6X20)1993-05-01~1995-09-01 |
09139-06036-000 |
from US $0.96 |
||
|
24
|
24
02142-06163-000
Screw
1993-05-01~1995-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-0616A-000 SCREW1993-05-01~1995-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
25
|
25
08316-10063-000
Nut
1993-05-01~1995-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT1993-05-01~1995-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
72878-57C00-000 PROTECTOR1993-05-01~1995-09-01 |
72878-57C00-000 |
US $1.52 |
||
|
27
|
27
77130-70A00-5WA MOLDING,BODY SIDE(GRAY)BODY:37V,07B,38B,27G,0AA,0DM 0DG,19H,1FH,1FG グレー,RH(フロントフェンダー); 1993-05-01~1995-09-01 |
77130-70A00-5WA |
from US $30.83 |
||
|
28
|
28
77140-70A00-5WA MOLDING,BODY SIDE(GRAY)BODY:37V,07B,38B,27G,0AA,0DM 0DG,19H,1FH,1FG グレ-,LH(フロントフェンダー); 1993-05-01~1995-09-01 |
77140-70A00-5WA |
from US $30.83 |
||
|
29
|
29
02142-06103-000
Screw
1993-05-01~1995-09-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
29
|
29
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1993-05-01~1995-09-01 |
02142-0610B-000 |
from US $0.76 |
||
|
29
|
29
02142-0610A-000 SCREW1993-05-01~1995-09-01 |
02142-0610A-000 |
from US $0.96 |
||
|
30
|
30
72511-78000-000
Band, battery
1993-05-01~1995-09-01 |
72511-78000-000 |
— | ||
| replacement | |||||
|
30
|
30
72511-71L00-000 BAND,BATTERY1993-05-01~1995-09-01 |
72511-71L00-000 |
from US $5.81 |
||
|
31
|
31
72521-80001-000 BOLT,BATTERY1993-05-01~1995-09-01 |
72521-80001-000 |
from US $1.40 |
||
|
32
|
32
63461-80000-000 BOLT,BATTERY1993-05-01~1995-09-01 |
63461-80000-000 |
from US $2.72 |
||
|
33
|
33
72525-80001-000 STAY,BATTERY BOLT1993-05-01~1995-09-01 |
72525-80001-000 |
from US $0.79 |
||
|
34
|
34
09160-05013-000 WASHER(5.2X16X1)Washer 1993-05-01~1995-09-01 |
09160-05013-000 |
from US $0.76 |
||
|
35
|
35
02142-06103-000
Screw
1993-05-01~1995-09-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
35
|
35
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1993-05-01~1995-09-01 |
02142-0610B-000 |
from US $0.76 |
||
|
35
|
35
02142-0610A-000 SCREW1993-05-01~1995-09-01 |
02142-0610A-000 |
from US $0.96 |
||
|
36
|
36
08310-00053-000
Nut
1993-05-01~1995-09-01 |
08310-00053-000 |
— | ||
| replacement | |||||
|
36
|
36
08310-0005A-000 NUT1993-05-01~1995-09-01 |
08310-0005A-000 |
from US $0.96 |
||
