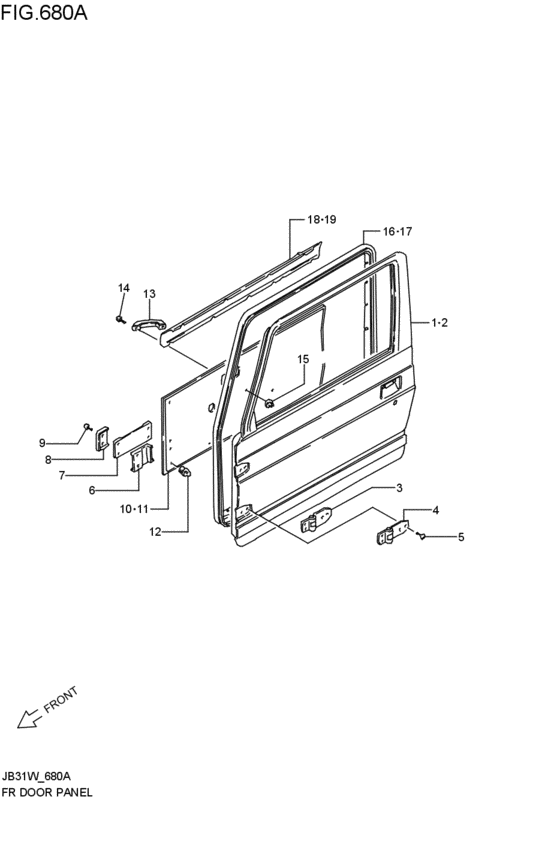

front door panel (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-84C00-000
パネルアッシ,フロントドア,ライト
1993-05-01~1995-05-01 |
68001-84C00-000 |
— | ||
| replacements | |||||
|
1
|
1
03111-0625A-000 SCREW1993-05-01~1995-05-01 |
03111-0625A-000 |
from US $0.80 |
||
|
1
|
1
03241-0612A-000 SCREW1993-05-01~1995-05-01 |
03241-0612A-000 |
US $0.80 |
||
|
1
|
1
09148-06007-000 NUT1993-05-01~1995-05-01 |
09148-06007-000 |
from US $0.91 |
||
|
1
|
1
68001-84C01-000
PANEL ASSY,FRONT DOOR,R
1993-05-01~1995-05-01 |
68001-84C01-000 |
— | ||
|
1
|
1
03241-06123-000
Screw
1993-05-01~1995-05-01 |
03241-06123-000 |
— | ||
|
1
|
1
03111-06253-000
Screw
1993-05-01~1995-05-01 |
03111-06253-000 |
— | ||
|
1
|
1
68001-84C01-000
PANEL ASSY,FRONT DOOR,R
1995-05-01~1995-09-01 |
68001-84C01-000 |
— | ||
|
2
|
2
68002-84C00-000
パネルアッシ,フロントドア,レフト
1993-05-01~1995-05-01 |
68002-84C00-000 |
— | ||
| replacements | |||||
|
2
|
2
03111-0625A-000 SCREW1993-05-01~1995-05-01 |
03111-0625A-000 |
from US $0.80 |
||
|
2
|
2
03241-0612A-000 SCREW1993-05-01~1995-05-01 |
03241-0612A-000 |
US $0.80 |
||
|
2
|
2
09148-06007-000 NUT1993-05-01~1995-05-01 |
09148-06007-000 |
from US $0.91 |
||
|
2
|
2
68002-84C01-000
PANEL ASSY,FRONT DOOR,L
1993-05-01~1995-05-01 |
68002-84C01-000 |
— | ||
|
2
|
2
03241-06123-000
Screw
1993-05-01~1995-05-01 |
03241-06123-000 |
— | ||
|
2
|
2
03111-06253-000
Screw
1993-05-01~1995-05-01 |
03111-06253-000 |
— | ||
|
2
|
2
68002-84C01-000
PANEL ASSY,FRONT DOOR,L
1995-05-01~1995-09-01 |
68002-84C01-000 |
— | ||
|
3
|
3
69310-80110-000 HINGE,FR DOOR UPPER RH1993-05-01~1995-09-01 |
69310-80110-000 |
from US $19.85 |
||
|
4
|
4
69320-80110-000 HINGE,FR DOOR LOWER RH1993-05-01~1995-09-01 |
69320-80110-000 |
from US $21.40 |
||
|
5
|
5
09125-08002-000
スクリュ,8X20
1993-05-01~1995-09-01 |
09125-08002-000 |
— | ||
| replacement | |||||
|
5
|
5
09125-08015-XC0 SCREW(8X20)1993-05-01~1995-09-01 |
09125-08015-XC0 |
from US $0.97 |
||
|
6
|
6
76182-63101-000 PROTECTOR,OPENING TRIM1993-05-01~1995-09-01 |
76182-63101-000 |
US $13.60 |
||
|
7
|
7
81811-80100-000 BAND,DR OPEN STOPPER1993-05-01~1995-09-01 |
81811-80100-000 |
from US $12.31 |
||
|
8
|
8
76182-58002-000 GARNISH,DR OPEN STOPPER1993-05-01~1995-09-01 |
76182-58002-000 |
US $1.82 |
||
|
9
|
9
02122-05203-000
Screw
1993-05-01~1995-09-01 |
02122-05203-000 |
— | ||
| replacement | |||||
|
9
|
9
02122-0520A-000 SCREW1993-05-01~1995-09-01 |
02122-0520A-000 |
from US $0.80 |
||
|
10
|
10
83710-70A00-K59 TRIM,FRONT DOOR,Rブラック/グレー; STD; 1993-05-01~1995-09-01 |
83710-70A00-K59 |
US $81.33 |
||
|
11
|
11
83720-70A00-K59 TRIM,FRONT DOOR,Lブラック/グレー; STD; 1993-05-01~1995-09-01 |
83720-70A00-K59 |
US $81.02 |
||
|
12
|
12
09409-08320-000 CLIP1993-05-01~1995-09-01 |
09409-08320-000 |
from US $1.15 |
||
|
13
|
13
78271-58054-5ES HANDLE,DOOR INSIDE PULLブラック; 1993-05-01~1995-09-01 |
78271-58054-5ES |
from US $6.21 |
||
|
14
|
14
09125-06041-000 SCREW(6X20)1993-05-01~1995-05-01 |
09125-06041-000 |
from US $0.81 |
||
|
14
|
14
03111-06253-000
Screw
1995-05-01~1995-09-01 |
03111-06253-000 |
— | ||
|
15
|
15
09148-06007-000 NUT1995-05-01~1995-09-01 |
09148-06007-000 |
from US $0.91 |
||
|
16
|
16
84641-82CA0-000 WEATHERSTRIP,FR DR OPNG,R1993-05-01~1995-09-01 |
84641-82CA0-000 |
from US $89.08 |
||
|
17
|
17
84651-82CA0-000 WEATHERSTRIP,FR DR OPNG,L1993-05-01~1995-09-01 |
84651-82CA0-000 |
from US $89.08 |
||
|
18
|
18
83791-83011-5ES GARNISH,FR DR TRIM UPR,Rブラック; 1993-05-01~1995-09-01 |
83791-83011-5ES |
US $53.20 |
||
|
19
|
19
83792-83011-5ES GARNISH,FR DR TRIM UPR,Lブラック; 1993-05-01~1995-09-01 |
83792-83011-5ES |
US $53.20 |
||
