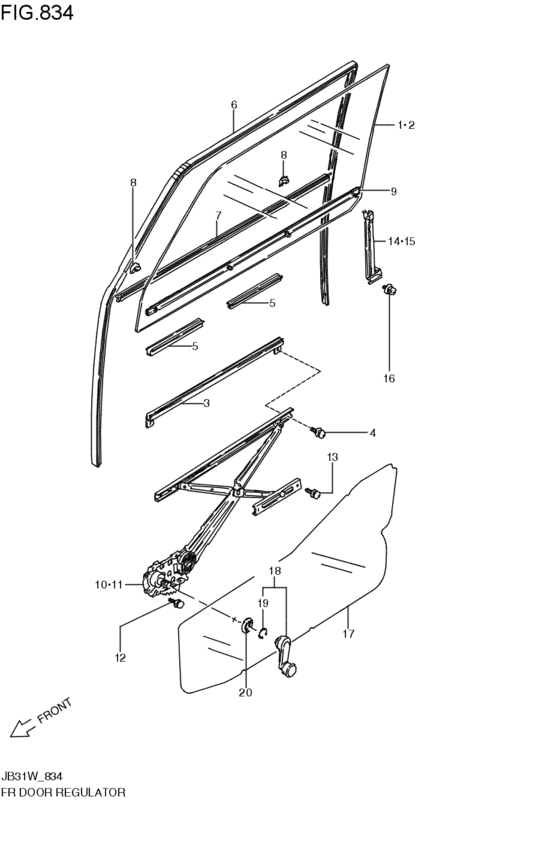

front door regulator (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-80102-000
GLASS FR DOOR RH
ASAHI ブルー; STD,SA; 1993-05-01~1995-09-01 |
84531-80102-000 |
— | ||
| replacement | |||||
|
1
|
1
84531-80150-000 GLASS,FR DR WDO,RASAHI ブルー; STD,SA; 1993-05-01~1995-09-01 |
84531-80150-000 |
US $119.16 |
||
|
2
|
2
84536-80102-000
GLASS FRONT DOOR LH
ASAHI ブルー; STD,SA; 1993-05-01~1995-09-01 |
84536-80102-000 |
— | ||
| replacement | |||||
|
2
|
2
84536-80150-000 GLASS,FR DR WDO,LASAHI ブルー; STD,SA; 1993-05-01~1995-09-01 |
84536-80150-000 |
US $86.72 |
||
|
3
|
3
78710-78000-000 CHANNEL,DR GLASS BOTTOM1993-05-01~1995-09-01 |
78710-78000-000 |
from US $11.52 |
||
|
4
|
4
02112-76123-000
Screw
1993-05-01~1995-09-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-7612B-000 SCREW1993-05-01~1995-09-01 |
02112-7612B-000 |
from US $1.12 |
||
|
5
|
5
78812-78400-000 RUBBER,CHANNELL:270>180; 1993-05-01~1995-09-01 |
78812-78400-000 |
from US $2.12 |
||
|
6
|
6
83661-82CA0-000 RUN,FR DOOR GLASS1993-05-01~1995-09-01 |
83661-82CA0-000 |
from US $46.13 |
||
|
7
|
7
83810-82CA0-000 WEATHERSTRIP,FR DR OUT1993-05-01~1995-09-01 |
83810-82CA0-000 |
from US $34.67 |
||
|
8
|
8
78991-78001-000 CLIP,DR OUT WEATHERSTRIP1993-05-01~1995-09-01 |
78991-78001-000 |
from US $1.04 |
||
|
9
|
9
83850-80100-000 WEATHERSTRIP,FR DR INR1993-05-01~1995-09-01 |
83850-80100-000 |
from US $28.12 |
||
|
10
|
10
78501-78001-000 REGULATOR,DOOR WINDOW,R1993-05-01~1995-09-01 |
78501-78001-000 |
from US $77.22 |
||
|
11
|
11
78502-78001-000 REGULATOR ASSY,DOOR WINDOW,L1993-05-01~1995-09-01 |
78502-78001-000 |
from US $77.22 |
||
|
12
|
12
02112-76123-000
Screw
1993-05-01~1995-09-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-7612B-000 SCREW1993-05-01~1995-09-01 |
02112-7612B-000 |
from US $1.12 |
||
|
13
|
13
02112-76123-000
Screw
1993-05-01~1995-09-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-7612B-000 SCREW1993-05-01~1995-09-01 |
02112-7612B-000 |
from US $1.12 |
||
|
14
|
14
81730-80102-000 SASH,FR DOOR REAR,R1993-05-01~1995-09-01 |
81730-80102-000 |
from US $7.07 |
||
|
15
|
15
81740-80102-000 SASH,FR DOOR REAR,L1993-05-01~1995-09-01 |
81740-80102-000 |
US $30.40 |
||
|
16
|
16
02112-76123-000
Screw
1993-05-01~1995-09-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-7612B-000 SCREW1993-05-01~1995-09-01 |
02112-7612B-000 |
from US $1.12 |
||
|
17
|
17
83911-60X50-000
カバー,ドアシーリング,600X1200
1993-05-01~1995-09-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
17
|
17
83911-60X52-000 COVER,DR SEALING1993-05-01~1995-09-01 |
83911-60X52-000 |
US $6.06 |
||
|
18
|
18
82960-82001-5ES HANDLE,DR WINDOW RGLTRブラック; 1993-05-01~1995-09-01 |
82960-82001-5ES |
from US $12.42 |
||
|
19
|
19
78463-78000-000 SNAP1993-05-01~1995-09-01 |
78463-78000-000 |
from US $1.24 |
||
|
20
|
20
82972-82101-5ES ESCUTCHEON,RGLTR HDLブラック; 1993-05-01~1995-09-01 |
82972-82101-5ES |
from US $2.24 |
||
