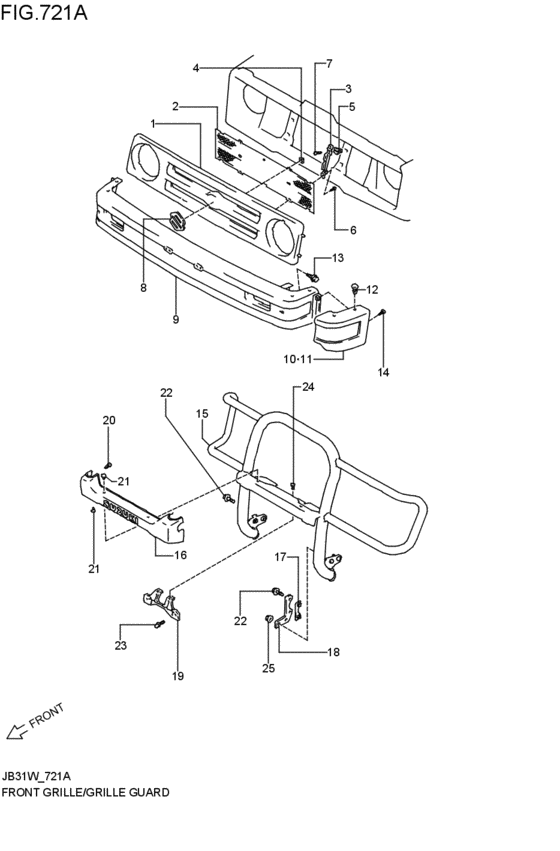

front grill / grill guard (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72111-57C10-000
GRILL FRONT
キジショク; 1993-05-01~1995-09-01 |
72111-57C10-000 |
— | ||
| replacement | |||||
|
1
|
1
72111-57C10-5PK GRILLE,FRキジショク; 1993-05-01~1995-09-01 |
72111-57C10-5PK |
from US $188.80 |
||
|
2
|
2
72115-57C10-000 NET,FR GRILLE1993-05-01~1995-09-01 |
72115-57C10-000 |
from US $45.68 |
||
|
3
|
3
72116-57C10-000 REINFORCEMENT,FR GRILLE1993-05-01~1995-09-01 |
72116-57C10-000 |
from US $5.29 |
||
|
4
|
4
09148-04010-000 NUTEcrou 1993-05-01~1995-09-01 |
09148-04010-000 |
from US $0.54 |
||
|
5
|
5
09148-04033-000 NUT1993-05-01~1993-11-01 |
09148-04033-000 |
from US $0.86 |
||
|
6
|
6
03541-04103-000
Screw
1993-05-01~1995-09-01 |
03541-04103-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0410A-000 SCREW1993-05-01~1995-09-01 |
03541-0410A-000 |
from US $0.80 |
||
|
7
|
7
03541-04163-000
Screw
1993-05-01~1993-11-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0416A-000 SCREWScrew, trunk box lamp 1993-05-01~1993-11-01 |
03541-0416A-000 |
from US $0.76 |
||
|
8
|
8
77811-60A00-0PG
エンブレム,Sマーク(クローム)
クローム "Sマ-ク"; 1993-05-01~1995-09-01 |
77811-60A00-0PG |
— | ||
| replacement | |||||
|
8
|
8
77811-60A01-0PG EMBLEM,S MARKクローム "Sマ-ク"; 1993-05-01~1995-09-01 |
77811-60A01-0PG |
from US $21.22 |
||
|
9
|
9
71710-82C01-000 BAR,FR BUMPERプライマリー キジショク; 1993-05-01~1995-09-01 |
71710-82C01-000 |
from US $171.99 |
||
| replacement | |||||
|
9
|
9
71710-82C11-000
BAR,FR BUMPER
プライマリー キジショク; 1993-05-01~1995-09-01 |
71710-82C11-000 |
— | ||
|
10
|
10
71741-83302-000 PROTECTOR,FR BUMPER CORNER,R1993-05-01~1995-09-01 |
71741-83302-000 |
from US $19.98 |
||
|
11
|
11
71742-83302-000 PROTECTOR,FR BUMPER CORNER,L1993-05-01~1995-09-01 |
71742-83302-000 |
from US $21.53 |
||
|
12
|
12
09409-07311-000 CLIP1993-05-01~1995-09-01 |
09409-07311-000 |
from US $0.97 |
||
|
13
|
13
01550-08123-000
Bolt
1993-05-01~1995-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0812B-000 BoltPlug, drain 1993-05-01~1995-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
13
|
13
01550-0812A-000 Bolt1993-05-01~1995-09-01 |
01550-0812A-000 |
from US $0.91 |
||
|
14
|
14
03141-06123-000
Screw 6x12
1993-05-01~1995-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0612A-000 SCREW1993-05-01~1995-09-01 |
03141-0612A-000 |
US $0.76 |
||
|
15
|
15
71650-82C00-000
GUARD,FR END
キジショク; 1993-05-01~1995-09-01 |
71650-82C00-000 |
— | ||
|
16
|
16
71660-82C00-000
Protector,front guard
1993-05-01~1995-09-01 |
71660-82C00-000 |
— | ||
|
17
|
17
71661-82C00-000
Reinf,front guard stay
1993-05-01~1995-09-01 |
71661-82C00-000 |
— | ||
|
18
|
18
71662-82C00-000
ステー,フロントエンドガード
1993-05-01~1995-09-01 |
71662-82C00-000 |
— | ||
|
19
|
19
71665-82C00-000
ステー,フロントライセンス
1993-05-01~1995-09-01 |
71665-82C00-000 |
— | ||
|
20
|
20
09409-06306-000 CLIPClip 1993-05-01~1995-09-01 |
09409-06306-000 |
from US $0.59 |
||
|
21
|
21
09409-11301-000 CLIP1993-05-01~1995-09-01 |
09409-11301-000 |
US $13.20 |
||
|
22
|
22
01550-10253-000
Bolt
1993-05-01~1995-09-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-1025B-000 BoltBolt, rr swgarm bracket, l 1993-05-01~1995-09-01 |
01550-1025B-000 |
from US $1.28 |
||
|
22
|
22
01550-1025A-000 BoltBolt, drive gear 1993-05-01~1995-09-01 |
01550-1025A-000 |
from US $1.06 |
||
|
23
|
23
01560-06163-000
Bolt
1993-05-01~1995-09-01 |
01560-06163-000 |
— | ||
| replacement | |||||
|
23
|
23
01560-0616A-000 Bolt1993-05-01~1995-09-01 |
01560-0616A-000 |
US $0.96 |
||
|
24
|
24
09125-06068-000
スクリュ,6X16
1993-05-01~1995-09-01 |
09125-06068-000 |
— | ||
| replacement | |||||
|
24
|
24
09125-06068-XC0 SCREW(6X16)1993-05-01~1995-09-01 |
09125-06068-XC0 |
US $1.52 |
||
|
25
|
25
08316-10103-000
Nut
1993-05-01~1995-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1010B-000 NUT1993-05-01~1995-09-01 |
08316-1010B-000 |
from US $0.80 |
||
