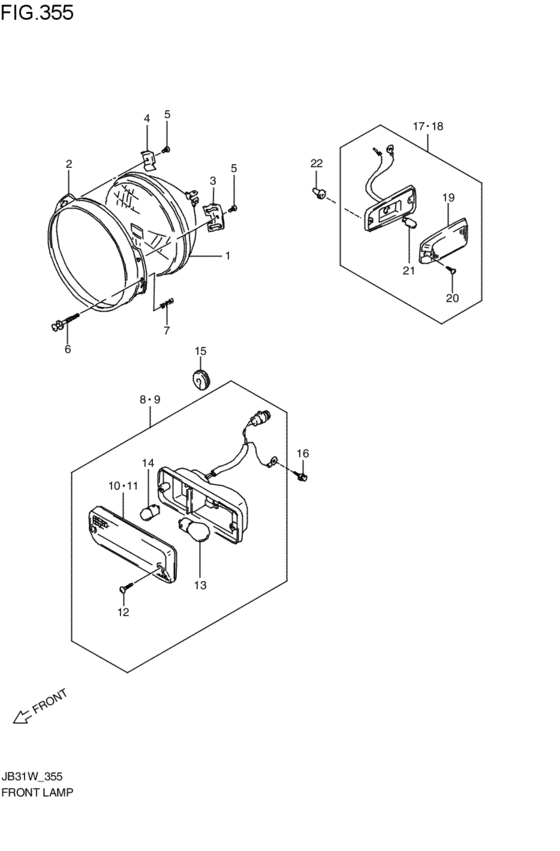

front lamp (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-83021-000 UNIT,LAMP1993-05-01~1995-09-01 |
35121-83021-000 |
US $256 |
||
|
2
|
2
35131-64031-000 RIM,HEADLAMP1993-05-01~1995-09-01 |
35131-64031-000 |
from US $8.35 |
||
|
3
|
3
35132-72600-000 PLATE,NO.21993-05-01~1995-09-01 |
35132-72600-000 |
from US $1.60 |
||
|
4
|
4
35136-51030-000 PLATE,NO.31993-05-01~1995-09-01 |
35136-51030-000 |
from US $1.33 |
||
|
5
|
5
02112-04087-000 SCREW1993-05-01~1995-09-01 |
02112-04087-000 |
from US $0.41 |
||
|
6
|
6
35151-80C00-000
スクリュ,ヘッドランプ
1993-05-01~1995-09-01 |
35151-80C00-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-45001-000 SCREW(5X45)1993-05-01~1995-09-01 |
09122-45001-000 |
US $2.24 |
||
|
7
|
7
35154-80C00-000
スプリング,ヘッドランプ
1993-05-01~1995-09-01 |
35154-80C00-000 |
— | ||
| replacement | |||||
|
7
|
7
35154-80C01-000 SPRING,HEADLAMP1993-05-01~1995-09-01 |
35154-80C01-000 |
US $4.16 |
||
|
8
|
8
35601-80052-000 LAMP ASSY,FR COMB,R1993-05-01~1995-09-01 |
35601-80052-000 |
from US $107.73 |
||
|
9
|
9
35602-80052-000 LAMP ASSY,FR COMB,L1993-05-01~1995-09-01 |
35602-80052-000 |
from US $77.22 |
||
|
10
|
10
35612-78000-000 LENS,R1993-05-01~1995-09-01 |
35612-78000-000 |
from US $4.68 |
||
|
11
|
11
35632-78000-000 LENS,L1993-05-01~1995-09-01 |
35632-78000-000 |
from US $5.96 |
||
|
12
|
12
03112-04303-000
Screw
1993-05-01~1995-09-01 |
03112-04303-000 |
— | ||
| replacement | |||||
|
12
|
12
03112-04309-000 SCREW1993-05-01~1995-09-01 |
03112-04309-000 |
from US $0.76 |
||
|
13
|
13
09471-12045-000 BULB(12V21W)1993-05-01~1995-09-01 |
09471-12045-000 |
from US $3.11 |
||
|
14
|
14
09471-12140-000 BULB(12V5W)1993-05-01~1995-09-01 |
09471-12140-000 |
from US $2.03 |
||
|
15
|
15
09308-08007-000 GROMMET1993-05-01~1995-09-01 |
09308-08007-000 |
US $1.92 |
||
|
16
|
16
09115-06001-000 Bolt, lhBolt (6x16) 1993-05-01~1995-09-01 |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
16
|
16
09115-06005-000 BOLT(6X16)1993-05-01~1995-09-01 |
09115-06005-000 |
from US $0.86 |
||
|
17
|
17
36410-80001-000 LAMP ASSY,SIDE TURN SIG,R1993-05-01~1995-09-01 |
36410-80001-000 |
from US $13.19 |
||
|
18
|
18
36430-80001-000 LAMP ASSY,SIDE TURN SIG,L1993-05-01~1995-09-01 |
36430-80001-000 |
from US $13.19 |
||
|
19
|
19
36412-80000-000 LENS1993-05-01~1995-09-01 |
36412-80000-000 |
from US $3.74 |
||
|
20
|
20
03112-04163-000
Screw
1993-05-01~1995-09-01 |
03112-04163-000 |
— | ||
| replacement | |||||
|
20
|
20
03111-0416A-000 SCREW1993-05-01~1995-09-01 |
03111-0416A-000 |
US $0.80 |
||
|
21
|
21
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1993-05-01~1995-09-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
21
|
21
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1993-05-01~1995-09-01 |
09471-12216-000 |
from US $3.02 |
||
|
22
|
22
09159-04004-000 NUT1993-05-01~1995-09-01 |
09159-04004-000 |
from US $0.29 |
||
