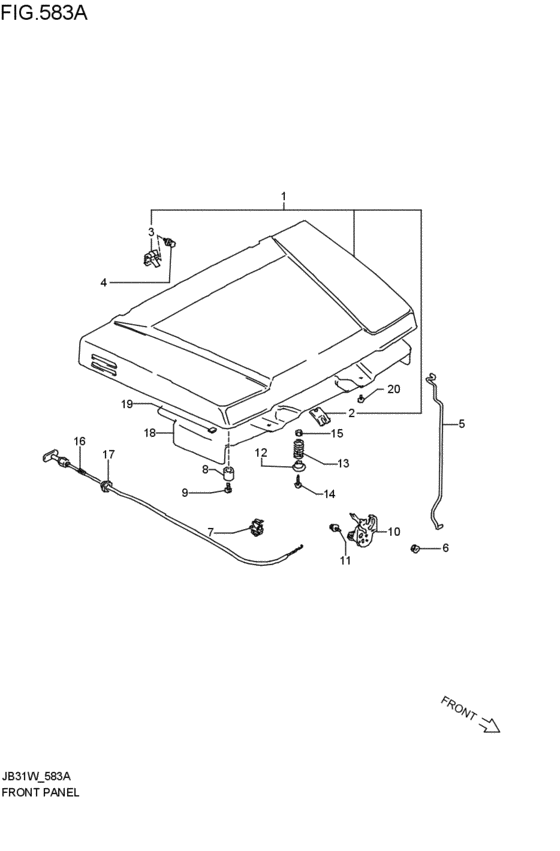

front panel (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-51C01-000
PANEL ASSY,FRONT HOOD
1993-05-01~1995-09-01 |
58300-51C01-000 |
— | ||
|
2
|
2
58370-83000-000 HOOK,FR HOOD LOCK1993-05-01~1995-09-01 |
58370-83000-000 |
US $6.15 |
||
|
3
|
3
58410-80010-000 HINGE,HOOD1993-05-01~1995-09-01 |
58410-80010-000 |
from US $15.50 |
||
|
4
|
4
09118-06106-000 BOLT(6X16)1993-05-01~1995-09-01 |
09118-06106-000 |
US $1.12 |
||
|
5
|
5
72442-83003-000 STAY,FRONT HOOD1993-05-01~1995-09-01 |
72442-83003-000 |
US $32.80 |
||
| replacement | |||||
|
5
|
5
72442-70A0V-000
STAY,FRONT HOOD
1993-05-01~1995-09-01 |
72442-70A0V-000 |
— | ||
|
6
|
6
09308-09017-000 GROMMET1993-05-01~1995-09-01 |
09308-09017-000 |
US $1.76 |
||
|
7
|
7
09403-08313-000 CLAMP1993-05-01~1995-09-01 |
09403-08313-000 |
US $1.92 |
||
|
8
|
8
09320-06011-000 CUSHION1993-05-01~1995-09-01 |
09320-06011-000 |
from US $3.89 |
||
|
9
|
9
02112-06163-000
Screw
1993-05-01~1995-09-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-0616B-000 SCREW1993-05-01~1995-09-01 |
02112-0616B-000 |
from US $0.96 |
||
|
9
|
9
02112-0616A-000 SCREW1993-05-01~1995-09-01 |
02112-0616A-000 |
from US $0.76 |
||
|
10
|
10
82110-80004-000
ラッチ,フード
1993-05-01~1995-09-01 |
82110-80004-000 |
— | ||
| replacement | |||||
|
10
|
10
82110-80005-000 LATCH,HOOD1993-05-01~1995-09-01 |
82110-80005-000 |
US $110.21 |
||
|
11
|
11
09138-06002-000 SCREW(6X10)1993-05-01~1995-09-01 |
09138-06002-000 |
US $15.50 |
||
|
12
|
12
82171-80100-000 SUPPORT,OPEN SPRING1993-05-01~1995-09-01 |
82171-80100-000 |
US $22.40 |
||
|
13
|
13
09440-27007-000 SPRING1993-05-01~1995-09-01 |
09440-27007-000 |
US $3.04 |
||
|
14
|
14
02112-06403-000
Screw
1993-05-01~1995-09-01 |
02112-06403-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0640B-000 SCREW1993-05-01~1995-09-01 |
02112-0640B-000 |
US $0.80 |
||
|
14
|
14
02112-0640A-000 SCREW1993-05-01~1995-09-01 |
02112-0640A-000 |
from US $0.80 |
||
|
15
|
15
08310-00063-000
Nut
1993-05-01~1995-09-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0006B-000 NUTNut gear shift link rod 1993-05-01~1995-09-01 |
08310-0006B-000 |
from US $0.76 |
||
|
15
|
15
08310-0006A-000 NUT1993-05-01~1995-09-01 |
08310-0006A-000 |
from US $0.76 |
||
|
16
|
16
82160-80011-000 CABLE,HOOD LATCH RELEASE1993-05-01~1995-09-01 |
82160-80011-000 |
US $47.20 |
||
|
17
|
17
82191-50E00-000 GROMMET,LATCH RELEASE CABLE1993-05-01~1995-09-01 |
82191-50E00-000 |
US $3.52 |
||
|
18
|
18
75270-50C01-000
SILENCER,FRONT HOOD
1993-05-01~1995-09-01 |
75270-50C01-000 |
— | ||
|
19
|
19
75272-50C00-000 FASTENER,SILENCER FR HOOD NO.11993-05-01~1995-09-01 |
75272-50C00-000 |
US $3.16 |
||
|
20
|
20
09409-06309-5ES CLIP(BLACK)ブラック; 1993-05-01~1995-09-01 |
09409-06309-5ES |
from US $1.60 |
||
