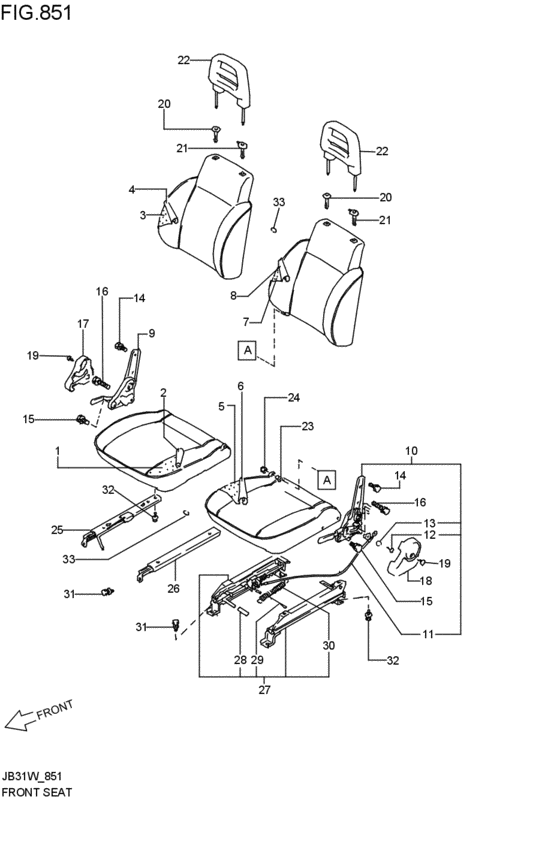

front seat (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-83001-000 CUSHION SUB ASSY,FR SEAT,R1993-05-01~1995-09-01 |
85105-83001-000 |
US $345.04 |
||
|
2
|
2
85180-83101-K58
TRIM,FR SEAT CUSHION,R
グレー/ブラック; STD; 1993-05-01~1995-09-01 |
85180-83101-K58 |
— | ||
| replacement | |||||
|
2
|
2
85180-83102-K58 Trim,fr Cushion,rグレー/ブラック; STD; 1993-05-01~1995-09-01 |
85180-83102-K58 |
US $770.88 |
||
|
3
|
3
85305-83001-000 BACK S/ASSY,FR SEAT,R1993-05-01~1995-09-01 |
85305-83001-000 |
US $248.40 |
||
|
4
|
4
85380-83102-K58
TRIM,FR SEAT BACK,R
グレー/ブラック; STD; 1993-05-01~1995-09-01 |
85380-83102-K58 |
— | ||
| replacement | |||||
|
4
|
4
85380-83103-K58
Trim,fr Seat Back,r
グレー/ブラック; STD; 1993-05-01~1995-09-01 |
85380-83103-K58 |
— | ||
|
5
|
5
85106-83001-000 CUSHION SUB ASSY,FR SEAT,L1993-05-01~1995-09-01 |
85106-83001-000 |
US $345.04 |
||
|
6
|
6
85680-83101-K58
Trim,front seat cushion,l
グレー/ブラック; STD; 1993-05-01~1995-09-01 |
85680-83101-K58 |
— | ||
|
7
|
7
85306-83001-000
BACK S/ASSY,FR SEAT,L
1993-05-01~1995-09-01 |
85306-83001-000 |
— | ||
|
8
|
8
85380-83102-K58
TRIM,FR SEAT BACK,R
グレー/ブラック; STD; 1993-05-01~1995-09-01 |
85380-83102-K58 |
— | ||
| replacement | |||||
|
8
|
8
85380-83103-K58
Trim,fr Seat Back,r
グレー/ブラック; STD; 1993-05-01~1995-09-01 |
85380-83103-K58 |
— | ||
|
9
|
9
85210-80290-5PK RECLINING,FR SEAT,Rブラック; 1993-05-01~1995-09-01 |
85210-80290-5PK |
US $144.62 |
||
|
10
|
10
85710-83001-5PK
RECLINING,FR SEAT,L
ブラック; 1993-05-01~1995-09-01 |
85710-83001-5PK |
— | ||
|
11
|
11
87570-83000-000 WIRE ASSY,WALKIN1993-05-01~1995-09-01 |
87570-83000-000 |
US $14.46 |
||
|
12
|
12
03111-05103-000
スクリュ
1993-05-01~1995-09-01 |
03111-05103-000 |
— | ||
| replacement | |||||
|
12
|
12
03111-0510A-000 SCREW1993-05-01~1995-09-01 |
03111-0510A-000 |
US $7.70 |
||
|
13
|
13
09148-04032-000 NUT1993-05-01~1995-09-01 |
09148-04032-000 |
from US $0.77 |
||
|
14
|
14
01570-08163-000
Bolt
UPPER; 1993-05-01~1995-09-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
14
|
14
01570-0816A-000 BoltUPPER; 1993-05-01~1995-09-01 |
01570-0816A-000 |
from US $1.12 |
||
|
15
|
15
01570-10163-000
ボルト
LOWER; 1993-05-01~1995-09-01 |
01570-10163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-1016A-000 BoltLOWER; 1993-05-01~1995-09-01 |
01570-1016A-000 |
US $17.30 |
||
|
16
|
16
01570-10403-000
Bolt, upper
LOWER; 1993-05-01~1995-09-01 |
01570-10403-000 |
— | ||
| replacement | |||||
|
16
|
16
01570-1040A-000 BoltLOWER; 1993-05-01~1995-09-01 |
01570-1040A-000 |
US $1.06 |
||
|
17
|
17
85221-82001-5PK COVER,RECLINING,Rブラック; 1993-05-01~1995-09-01 |
85221-82001-5PK |
US $8.02 |
||
|
18
|
18
85721-82001-5PK COVER,RECLINING,Lブラック; 1993-05-01~1995-09-01 |
85721-82001-5PK |
US $8.02 |
||
|
19
|
19
03241-05123-000
Screw
1993-05-01~1995-09-01 |
03241-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0512A-000 SCREW1993-05-01~1995-09-01 |
03241-0512A-000 |
from US $0.68 |
||
|
20
|
20
85391-80290-000 GUIDE,HEADRESTRAINT,R1993-05-01~1995-09-01 |
85391-80290-000 |
US $12.32 |
||
|
21
|
21
85890-83000-000 GUIDE,HEADRESTRAINT,L1993-05-01~1995-09-01 |
85890-83000-000 |
US $15.36 |
||
|
22
|
22
86401-70A00-5GU HEADRESTRAINT ASSY,FR SEAT (BLACK)ブラック; 1993-05-01~1995-09-01 |
86401-70A00-5GU |
US $115.92 |
||
|
23
|
23
85291-80290-000 BUSH,SEAT BACK FIXING1993-05-01~1995-09-01 |
85291-80290-000 |
from US $0.41 |
||
|
24
|
24
08313-20083-000
Nut
1993-05-01~1995-09-01 |
08313-20083-000 |
— | ||
| replacements | |||||
|
24
|
24
08313-2008B-000 NUT1993-05-01~1995-09-01 |
08313-2008B-000 |
from US $3.94 |
||
|
24
|
24
08313-2008A-000 NUT1993-05-01~1995-09-01 |
08313-2008A-000 |
from US $0.91 |
||
|
25
|
25
86601-80102-000
レールアッシ,ライト
RH SEAT; 1993-05-01~1995-09-01 |
86601-80102-000 |
— | ||
|
26
|
26
86602-80101-000
レールアッシ,レフト
RH SEAT; 1993-05-01~1995-09-01 |
86602-80101-000 |
— | ||
|
27
|
27
86901-83002-000
WALKIN ASSY,FR SEAT,L
1993-05-01~1995-09-01 |
86901-83002-000 |
— | ||
|
28
|
28
86736-83000-000 KNOB,LOCK HANDLE1993-05-01~1995-09-01 |
86736-83000-000 |
US $1.60 |
||
|
29
|
29
86731-83000-000 ROD,WALKIN TENSION1993-05-01~1995-09-01 |
86731-83000-000 |
US $8.64 |
||
|
30
|
30
86732-83000-000 SPRING,WALKIN1993-05-01~1995-09-01 |
86732-83000-000 |
US $7.95 |
||
|
31
|
31
01580-08203-000
Bolt, rear
1993-05-01~1995-09-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
31
|
31
01580-0820A-000 Bolt1993-05-01~1995-09-01 |
01580-0820A-000 |
from US $0.91 |
||
|
32
|
32
01580-06123-000
Bolt
1993-05-01~1995-09-01 |
01580-06123-000 |
— | ||
| replacements | |||||
|
32
|
32
01580-0612B-000 Bolt1993-05-01~1995-09-01 |
01580-0612B-000 |
US $0.96 |
||
|
32
|
32
01580-0612A-000 Bolt1993-05-01~1995-09-01 |
01580-0612A-000 |
from US $0.91 |
||
|
33
|
33
09387-19001-000 RING1993-05-01~1995-09-01 |
09387-19001-000 |
from US $0.77 |
||
