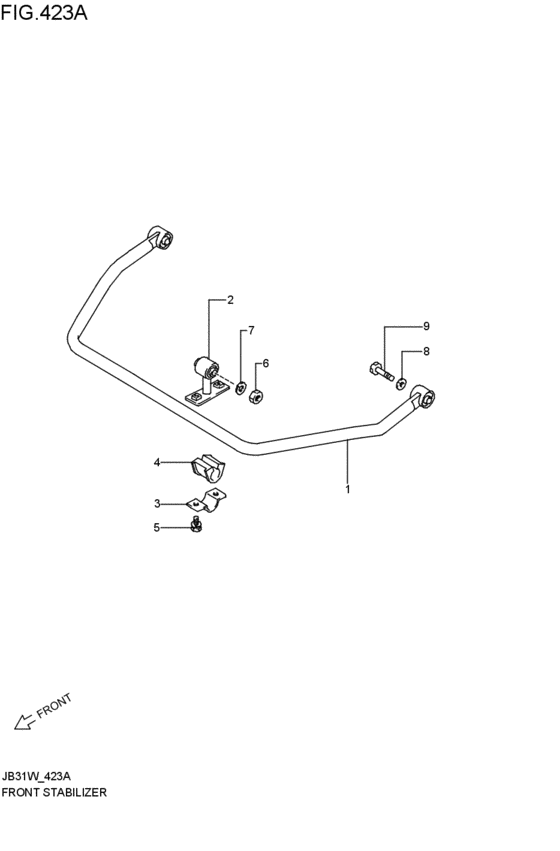

front stabilizer (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42300-70A00-000 STABILIZER ASSY,FRNHK; 1993-05-01~1995-09-01 |
42300-70A00-000 |
US $142.42 |
||
|
2
|
2
42400-83001-000 ROD ASSY,FR STABILIZER1993-05-01~1995-09-01 |
42400-83001-000 |
US $46.37 |
||
|
3
|
3
42415-83000-000
ブラケット,スタビライザバーマウント
1993-05-01~1995-09-01 |
42415-83000-000 |
— | ||
| replacement | |||||
|
3
|
3
42415-66D00-000 BRACKET,STABILIZER BAR MOUNT1993-05-01~1995-09-01 |
42415-66D00-000 |
from US $7.52 |
||
|
4
|
4
42412-70A00-000
ブッシング,スタビライザバーマウント
1993-05-01~1995-09-01 |
42412-70A00-000 |
— | ||
| replacement | |||||
|
4
|
4
42412-65D00-000 BUSHING,STAB BAR MOUNT1993-05-01~1995-09-01 |
42412-65D00-000 |
from US $7.52 |
||
|
5
|
5
01570-08253-000
Bolt, upper
1993-05-01~1995-09-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
5
|
5
01570-0825B-000 Bolt1993-05-01~1995-09-01 |
01570-0825B-000 |
from US $1.28 |
||
|
5
|
5
01570-0825A-000 Bolt1993-05-01~1995-09-01 |
01570-0825A-000 |
from US $1.06 |
||
|
6
|
6
08310-00103-000
Nut
1993-05-01~1995-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0010B-000 NUT1993-05-01~1995-09-01 |
08310-0010B-000 |
from US $0.83 |
||
|
6
|
6
08310-0010A-000 NUT1993-05-01~1995-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
7
|
7
08321-01103-000
Washer
1993-05-01~1995-09-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1993-05-01~1995-09-01 |
08321-0110B-000 |
from US $0.96 |
||
|
7
|
7
08321-0110A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0110A-000 |
from US $0.96 |
||
|
8
|
8
08321-01123-000
Washer
1993-05-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
09103-12501-000 BOLT(12X55)12X55; 1993-05-01~1995-09-01 |
09103-12501-000 |
from US $2.56 |
||
