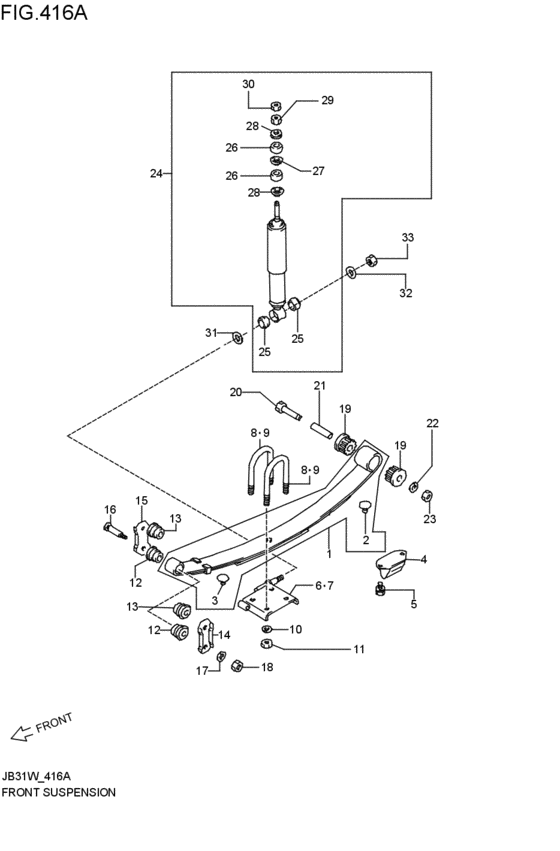

front suspension (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41110-70A00-000 SPRING ASSY,FRONTNHK; 1993-05-01~1995-09-01 |
41110-70A00-000 |
from US $153.63 |
||
|
2
|
2
41117-70A10-000 SILENCER,SPRINGNHK; 1993-05-01~1995-09-01 |
41117-70A10-000 |
from US $4.64 |
||
|
3
|
3
41117-70A10-000 SILENCER,SPRINGNHK; 1993-05-01~1995-09-01 |
41117-70A10-000 |
from US $4.64 |
||
|
4
|
4
42110-82C00-000 BUMPER,FR SPRING1993-05-01~1995-09-01 |
42110-82C00-000 |
from US $17.48 |
||
|
5
|
5
01570-08163-000
Bolt
1993-05-01~1995-09-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-0816A-000 Bolt1993-05-01~1995-09-01 |
01570-0816A-000 |
from US $1.12 |
||
|
6
|
6
41230-70A00-000 SEAT,FRONT SPRING,R1993-05-01~1995-09-01 |
41230-70A00-000 |
from US $14.72 |
||
|
7
|
7
41240-70A00-000 SEAT,FR SPRING,L1993-05-01~1995-09-01 |
41240-70A00-000 |
from US $20.27 |
||
|
8
|
8
41411-83010-000 U-BOLT,FR SPRING,R1993-05-01~1995-09-01 |
41411-83010-000 |
from US $6.50 |
||
|
9
|
9
41411-83000-000 U-BOLT,FR SPRING,LLH; 1993-05-01~1995-09-01 |
41411-83000-000 |
from US $6.59 |
||
|
10
|
10
08321-01123-000
Washer
1993-05-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0112A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
11
|
11
08310-00123-000
Nut
1993-05-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-0012A-000 NUT1993-05-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
12
|
12
09305-13002-000 BUSH1993-05-01~1995-09-01 |
09305-13002-000 |
from US $1.55 |
||
|
13
|
13
09305-13007-000 BUSH1993-05-01~1995-09-01 |
09305-13007-000 |
US $8.96 |
||
|
14
|
14
41461-77300-000 PLATE,INNER1993-05-01~1995-09-01 |
41461-77300-000 |
from US $3.71 |
||
|
15
|
15
41462-77300-000 PLATE,OUTER1993-05-01~1995-09-01 |
41462-77300-000 |
from US $3.11 |
||
|
16
|
16
41463-82000-000 PIN,SHACKLE1993-05-01~1995-09-01 |
41463-82000-000 |
from US $4.37 |
||
|
17
|
17
08321-01103-000
Washer
1993-05-01~1995-09-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1993-05-01~1995-09-01 |
08321-0110B-000 |
from US $0.96 |
||
|
17
|
17
08321-0110A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0110A-000 |
from US $0.96 |
||
|
18
|
18
08310-00103-000
Nut
1993-05-01~1995-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
18
|
18
08310-0010B-000 NUT1993-05-01~1995-09-01 |
08310-0010B-000 |
from US $0.83 |
||
|
18
|
18
08310-0010A-000 NUT1993-05-01~1995-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
19
|
19
41331-62020-000 BUSH1993-05-01~1995-09-01 |
41331-62020-000 |
from US $17.91 |
||
|
20
|
20
09103-12048-000 BOLT(12X90)1993-05-01~1995-09-01 |
09103-12048-000 |
from US $6.17 |
||
|
21
|
21
09180-12035-000 SPACER(12X16X64.5)1993-05-01~1995-09-01 |
09180-12035-000 |
from US $2.24 |
||
|
22
|
22
08321-01123-000
Washer
1993-05-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0112A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
23
|
23
08310-00123-000
Nut
1993-05-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
23
|
23
08310-0012A-000 NUT1993-05-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
24
|
24
41600-82C01-000 ABSORBER ASSY,FR SHOCK1993-05-01~1995-09-01 |
41600-82C01-000 |
from US $51.50 |
||
|
25
|
25
41781-52010-000 BUSHING,SHOCK ABSORBER NO.11993-05-01~1995-09-01 |
41781-52010-000 |
US $2.24 |
||
|
26
|
26
09320-10024-000 CUSHION1993-05-01~1995-09-01 |
09320-10024-000 |
from US $3.33 |
||
|
27
|
27
09169-15002-000 WASHER1993-05-01~1995-09-01 |
09169-15002-000 |
from US $0.34 |
||
|
28
|
28
09165-10002-000 WASHER1993-05-01~1995-09-01 |
09165-10002-000 |
from US $2.08 |
||
|
29
|
29
08310-00103-000
Nut
1993-05-01~1995-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
29
|
29
08310-0010B-000 NUT1993-05-01~1995-09-01 |
08310-0010B-000 |
from US $0.83 |
||
|
29
|
29
08310-0010A-000 NUT1993-05-01~1995-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
30
|
30
08310-00103-000
Nut
1993-05-01~1995-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
30
|
30
08310-0010B-000 NUT1993-05-01~1995-09-01 |
08310-0010B-000 |
from US $0.83 |
||
|
30
|
30
08310-0010A-000 NUT1993-05-01~1995-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
31
|
31
08322-01163-000
Washer
1993-05-01~1995-09-01 |
08322-01163-000 |
— | ||
| replacement | |||||
|
31
|
31
08322-0116A-000 WASHER1993-05-01~1995-09-01 |
08322-0116A-000 |
from US $0.80 |
||
|
32
|
32
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) 1993-05-01~1995-09-01 |
09160-12073-000 |
from US $0.79 |
||
|
33
|
33
08310-00123-000
Nut
1993-05-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
33
|
33
08310-0012A-000 NUT1993-05-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
