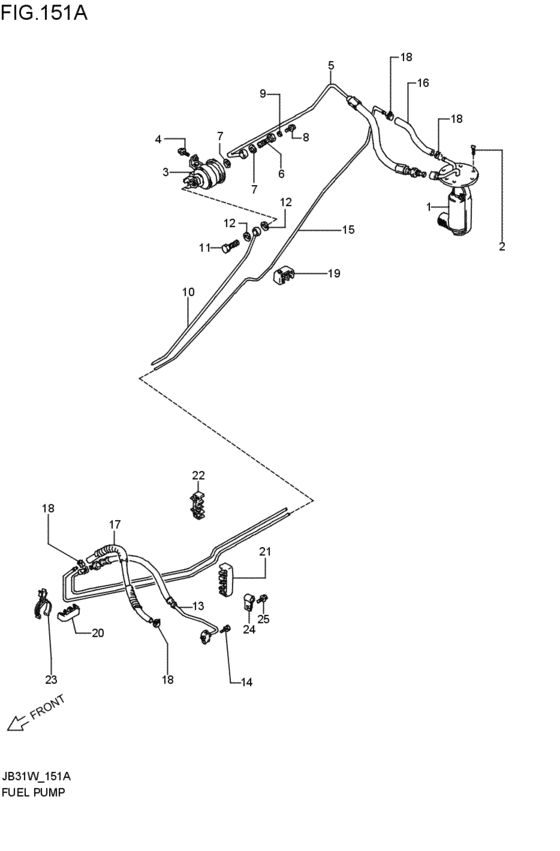

Fuel Pump (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-80C02-000
ポンプアッシ,フューエル
1993-05-01~1995-09-01 |
15100-80C02-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-80C1V-000 PUMP ASSY,FUEL1993-05-01~1995-09-01 |
15100-80C1V-000 |
US $1,481.60 |
||
|
2
|
2
09136-05045-000 SCREW(5X10)1993-05-01~1995-09-01 |
09136-05045-000 |
US $1.12 |
||
|
3
|
3
15410-80C00-000 FILTER,FUEL1993-05-01~1995-09-01 |
15410-80C00-000 |
from US $46.71 |
||
| replacement | |||||
|
3
|
3
15410-80C10-000
FILTER,FUEL
1993-05-01~1995-09-01 |
15410-80C10-000 |
— | ||
|
4
|
4
01550-06123-000
Bolt
1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612B-000 BoltBolt, clamp 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
4
|
4
01550-0612A-000 Bolt1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
15810-80C20-000 HOSE,FUEL FILTER INLET1993-05-01~1995-09-01 |
15810-80C20-000 |
US $202.40 |
||
|
6
|
6
13923-85551-000 BOLT,UNION FUEL FILTERBolt 1993-05-01~1995-09-01 |
13923-85551-000 |
from US $5.36 |
||
|
7
|
7
13925-85553-000 GASKET,UNION BOLTGasket 1993-05-01~1995-09-01 |
13925-85553-000 |
from US $1.10 |
||
|
8
|
8
13924-85550-000
PLUG
1993-05-01~1995-09-01 |
13924-85550-000 |
— | ||
| replacement | |||||
|
8
|
8
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover 1993-05-01~1995-09-01 |
17568-50F00-000 |
from US $2.08 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) 1993-05-01~1995-09-01 |
09168-06023-000 |
from US $1.52 |
||
|
10
|
10
15820-80C20-000 PIPE,FUEL FILTER OUTLET1993-05-01~1995-09-01 |
15820-80C20-000 |
US $79.49 |
||
|
11
|
11
09360-12008-000 UNION1993-05-01~1995-09-01 |
09360-12008-000 |
from US $5.60 |
||
|
12
|
12
13925-85553-000 GASKET,UNION BOLTGasket 1993-05-01~1995-09-01 |
13925-85553-000 |
from US $1.10 |
||
|
13
|
13
15830-80C00-000
ホース,フューエルパイプツーエンジン
パイプツーエンジン; 1993-05-01~1995-09-01 |
15830-80C00-000 |
— | ||
| replacement | |||||
|
13
|
13
15830-80C01-000
HOSE,FUEL PIPE TO ENG
パイプツーエンジン; 1993-05-01~1995-09-01 |
15830-80C01-000 |
— | ||
|
14
|
14
01570-06163-000
Bolt
1993-05-01~1995-09-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01570-0616B-000 Bolt1993-05-01~1995-09-01 |
01570-0616B-000 |
from US $0.80 |
||
|
14
|
14
01570-0616A-000 Bolt1993-05-01~1995-09-01 |
01570-0616A-000 |
from US $0.96 |
||
|
15
|
15
15861-80C21-000
PIPE,FUEL RTN
1993-05-01~1995-09-01 |
15861-80C21-000 |
— | ||
|
16
|
16
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>380; 1993-05-01~1995-09-01 |
09356-58127-600 |
from US $13.64 |
||
|
17
|
17
15870-61A00-000 HOSE,RETURN ENGINE TO PIPE1993-05-01~1995-09-01 |
15870-61A00-000 |
US $38.40 |
||
|
18
|
18
09402-15501-000
Clamp
1993-05-01~1995-09-01 |
09402-15501-000 |
— | ||
| replacement | |||||
|
18
|
18
09402-17511-000 CLAMP1993-05-01~1995-09-01 |
09402-17511-000 |
US $52.60 |
||
|
19
|
19
15892-60A00-000
クランプ,フューエルパイプ
1993-05-01~1995-09-01 |
15892-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
15892-60A11-000 CLAMP,FUEL PIPE1993-05-01~1995-09-01 |
15892-60A11-000 |
US $1.60 |
||
|
20
|
20
15893-60A11-000 CLAMP,FUEL PIPE1993-05-01~1995-09-01 |
15893-60A11-000 |
from US $1.15 |
||
|
21
|
21
15895-80C00-000
CLAMP,FUEL PIPE
1993-05-01~1995-09-01 |
15895-80C00-000 |
— | ||
|
22
|
22
15897-80C00-000
CLAMP,FUEL PIPE
1993-05-01~1995-09-01 |
15897-80C00-000 |
— | ||
|
23
|
23
09408-00063-000 CLAMP1993-05-01~1995-09-01 |
09408-00063-000 |
from US $0.97 |
||
|
24
|
24
09403-08404-000
CLAMP
1993-05-01~1995-09-01 |
09403-08404-000 |
— | ||
| replacement | |||||
|
24
|
24
09403-08417-000 Clamp,rsvr Hose1993-05-01~1995-09-01 |
09403-08417-000 |
from US $3.91 |
||
|
25
|
25
01550-06123-000
Bolt
1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BoltBolt, clamp 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 Bolt1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
