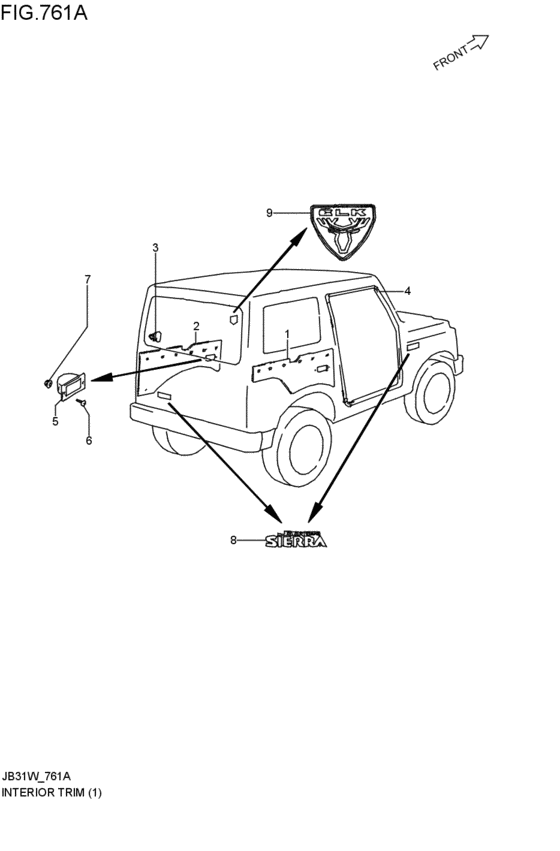

i trim interior (キョウツウヒン(エルクフクム); STD,SA,SB; 1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76110-71X50-5GT
TRIM,SIDE BODY INNER,R
ブラック; (STD,SA,SB):(STD,SA); 1993-05-01~1995-09-01 |
76110-71X50-5GT |
— | ||
|
2
|
2
76120-71A00-5GT
TRIM,SIDE BODY INNER,L
ブラック; (STD,SA,SB):(STD,SA); 1993-05-01~1995-09-01 |
76120-71A00-5GT |
— | ||
|
3
|
3
09409-08303-281
クリップ(ブラック)
ブラック CHKK; STD,SA,SB; 1993-05-01~1995-09-01 |
09409-08303-281 |
— | ||
| replacement | |||||
|
3
|
3
09409-08303-000 CLIPブラック CHKK; STD,SA,SB; 1993-05-01~1995-09-01 |
09409-08303-000 |
from US $0.97 |
||
|
4
|
4
84645-80101-000 TRIM,FR DOOR OPENING(STD,SA,SB):(STD,SA); 1993-05-01~1995-09-01 |
84645-80101-000 |
from US $24.71 |
||
|
5
|
5
86370-58140-5PK
ASH TRAY RR
ブラック; STD,SA,SB; 1993-05-01~1995-09-01 |
86370-58140-5PK |
— | ||
| replacement | |||||
|
5
|
5
86370-58141-5PK ASHTRAY,RR DRブラック; STD,SA,SB; 1993-05-01~1995-09-01 |
86370-58141-5PK |
from US $8.60 |
||
|
6
|
6
02122-04123-000
Screw
STD,SA,SB; 1993-05-01~1995-09-01 |
02122-04123-000 |
— | ||
| replacements | |||||
|
6
|
6
02122-0412B-000 SCREWSTD,SA,SB; 1993-05-01~1995-09-01 |
02122-0412B-000 |
US $12.90 |
||
|
6
|
6
02122-0412A-000 SCREWScrew, cap STD,SA,SB; 1993-05-01~1995-09-01 |
02122-0412A-000 |
from US $0.96 |
||
|
7
|
7
08316-10043-000
Nut
STD,SA,SB; 1993-05-01~1995-09-01 |
08316-10043-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1004B-000 NUTSTD,SA,SB; 1993-05-01~1995-09-01 |
08316-1004B-000 |
from US $4.28 |
||
|
8
|
8
77815-50C00-000
EMBLEM,SIDE&RR
STD,SA,SB; 1993-05-01~1995-09-01 |
77815-50C00-000 |
— | ||
