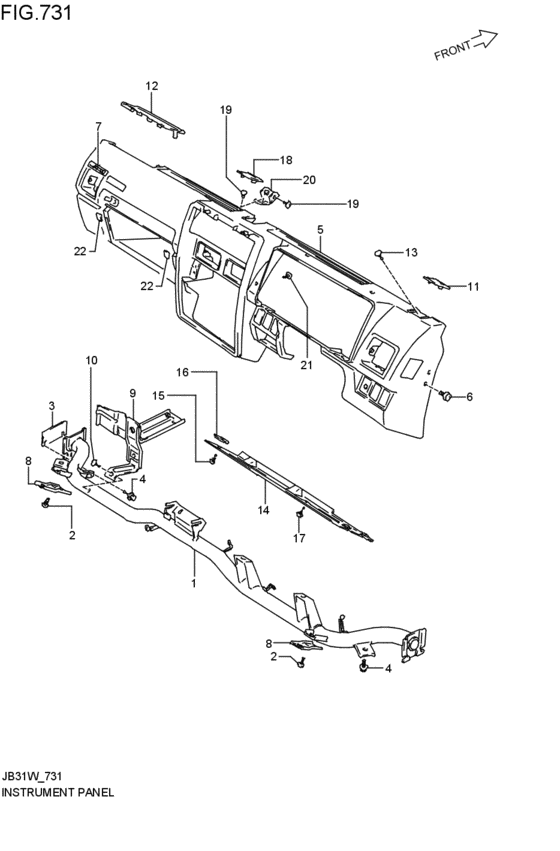

installment panel (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72310-70A01-000 HOLDER,STEERING COLUMN,R1993-05-01~1995-09-01 |
72310-70A01-000 |
US $109.66 |
||
|
2
|
2
01550-08163-000
Bolt, holder
1993-05-01~1995-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0816B-000 Bolt1993-05-01~1995-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
2
|
2
01550-0816A-000 BoltBolt, rear 1993-05-01~1995-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
3
|
3
72321-80002-000
PLATE,STEERING COLUMN HOLDER
1993-05-01~1995-09-01 |
72321-80002-000 |
— | ||
|
4
|
4
02142-06163-000
Screw
1993-05-01~1995-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-0616A-000 SCREW1993-05-01~1995-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
5
|
5
73111-70A02-5ES PANEL,I/Pブラック; 1993-05-01~1995-09-01 |
73111-70A02-5ES |
US $628.80 |
||
|
6
|
6
09136-06062-000
Screw
1993-05-01~1995-09-01 |
09136-06062-000 |
— | ||
| replacement | |||||
|
6
|
6
09136-06017-000 SCREW(6X16)1993-05-01~1995-09-01 |
09136-06017-000 |
from US $0.80 |
||
|
7
|
7
77811-80010-000 EMBLEM,INSTR1993-05-01~1995-09-01 |
77811-80010-000 |
US $32.80 |
||
|
8
|
8
72322-83000-000 STAY,I/P1993-05-01~1995-09-01 |
72322-83000-000 |
US $2.08 |
||
|
9
|
9
73810-83031-000 STAY,HOOD LOCK OPENER1993-05-01~1995-09-01 |
73810-83031-000 |
US $20 |
||
|
10
|
10
03141-06123-000
Screw 6x12
1993-05-01~1995-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0612A-000 SCREW1993-05-01~1995-09-01 |
03141-0612A-000 |
US $0.76 |
||
|
11
|
11
73811-70A00-5ES CAP,INSTPNL,NO.1ブラック; 1993-05-01~1995-09-01 |
73811-70A00-5ES |
US $1.60 |
||
|
12
|
12
73831-70A01-5ES CAP,INSTPNL,NO.2,Lブラック; 1993-05-01~1995-09-01 |
73831-70A01-5ES |
US $13.92 |
||
|
13
|
13
02142-06163-000
Screw
1993-05-01~1995-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-0616A-000 SCREW1993-05-01~1995-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
14
|
14
73813-83000-5ES COVER,INSTPNL,LOWERブラック; 1993-05-01~1995-09-01 |
73813-83000-5ES |
US $19.76 |
||
|
15
|
15
03241-05163-000
Screw, bracket
1993-05-01~1995-09-01 |
03241-05163-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0516A-000 SCREW1993-05-01~1995-09-01 |
03241-0516A-000 |
from US $0.76 |
||
|
16
|
16
09148-05013-000 NUT1993-05-01~1995-09-01 |
09148-05013-000 |
from US $0.91 |
||
|
17
|
17
03141-06123-000
Screw 6x12
1993-05-01~1995-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0612A-000 SCREW1993-05-01~1995-09-01 |
03141-0612A-000 |
US $0.76 |
||
|
18
|
18
73812-70A01-5ES CAP,INSTPNL,NO.3ブラック; 1993-05-01~1995-09-01 |
73812-70A01-5ES |
US $1.60 |
||
|
19
|
19
02142-06123-000
Screw
1993-05-01~1995-09-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02142-0612B-000 SCREW1993-05-01~1995-09-01 |
02142-0612B-000 |
from US $0.76 |
||
|
19
|
19
02142-0612A-000 SCREW1993-05-01~1995-09-01 |
02142-0612A-000 |
from US $0.80 |
||
|
20
|
20
73815-70A00-000 BRACKET,CTR1993-05-01~1995-09-01 |
73815-70A00-000 |
US $7.14 |
||
|
21
|
21
03541-04103-000
Screw
1993-05-01~1995-09-01 |
03541-04103-000 |
— | ||
| replacement | |||||
|
21
|
21
03541-0410A-000 SCREW1993-05-01~1995-09-01 |
03541-0410A-000 |
from US $0.80 |
||
|
22
|
22
73415-70A00-000 PAD1993-05-01~1995-09-01 |
73415-70A00-000 |
from US $1.60 |
||
