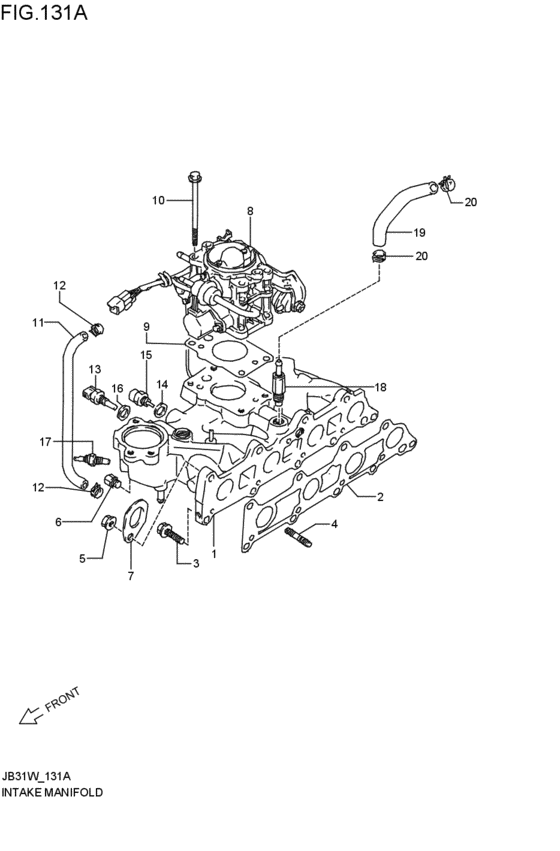

intake manifold (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-80C01-000
MANIFOLD,INTK
1993-05-01~1995-09-01 |
13110-80C01-000 |
— | ||
|
2
|
2
13119-63B00-000
GASKET INTAKE MANIFOLD
1993-05-01~1995-09-01 |
13119-63B00-000 |
— | ||
| replacement | |||||
|
2
|
2
13119-63B11-000 GASKET,INTK MANF1993-05-01~1995-09-01 |
13119-63B11-000 |
from US $10.62 |
||
|
3
|
3
01550-08253-000
Bolt, rear
1993-05-01~1993-10-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 Bolt1993-05-01~1993-10-01 |
01550-0825B-000 |
from US $1.06 |
||
|
3
|
3
01550-0825A-000 Bolt1993-05-01~1993-10-01 |
01550-0825A-000 |
from US $0.47 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
1993-05-01~1993-10-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD1993-05-01~1993-10-01 |
01421-0825A-000 |
from US $1.28 |
||
|
5
|
5
08316-10083-000
Nut
1993-05-01~1993-10-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT1993-05-01~1993-10-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
09246-04005-000 PLUGPlug, cylinder head cover 1993-05-01~1995-09-01 |
09246-04005-000 |
from US $1.44 |
||
|
7
|
7
11851-62B00-000 HOOK1993-05-01~1995-09-01 |
11851-62B00-000 |
from US $1.87 |
||
|
8
|
8
13400-80C20-000
Body assy,throttle
5MT; 1993-05-01~1995-09-01 |
13400-80C20-000 |
— | ||
|
9
|
9
13421-61A00-000 GASKET,THROTTLE BODY1993-05-01~1995-09-01 |
13421-61A00-000 |
US $12.32 |
||
|
10
|
10
09103-08230-000 BOLT(8X100)Bolt (8x100) 1993-05-01~1995-09-01 |
09103-08230-000 |
from US $1.24 |
||
|
11
|
11
09352-70131-600 HOSE(7X13X600)1993-05-01~1995-09-01 |
09352-70131-600 |
US $9.92 |
||
|
12
|
12
09401-12404-000 CLIPClip 1993-05-01~1995-09-01 |
09401-12404-000 |
from US $1.10 |
||
|
13
|
13
13650-56B00-000 SENSOR,INLET AIR TEMPSensor, iat 1993-05-01~1995-09-01 |
13650-56B00-000 |
US $40.80 |
||
|
14
|
14
09168-12016-000 GASKET(12.2X21X0.8)1993-05-01~1995-09-01 |
09168-12016-000 |
from US $1.28 |
||
|
15
|
15
13650-61B00-000 SENSOR,TEMP1993-05-01~1995-09-01 |
13650-61B00-000 |
from US $39.02 |
||
|
16
|
16
09168-12016-000 GASKET(12.2X21X0.8)1993-05-01~1995-09-01 |
09168-12016-000 |
from US $1.28 |
||
|
17
|
17
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature 5MT; 1993-05-01~1995-09-01 |
34850-50A00-000 |
from US $34.79 |
||
|
18
|
18
18118-80010-000 VALVE,PCV1993-05-01~1995-09-01 |
18118-80010-000 |
from US $21.85 |
||
|
19
|
19
09354-70153-600 HOSE(7X15X600)1993-05-01~1995-09-01 |
09354-70153-600 |
US $18.40 |
||
|
20
|
20
09401-13414-000 CLIPClip, pcv hose 1993-05-01~1995-09-01 |
09401-13414-000 |
from US $1.60 |
||
