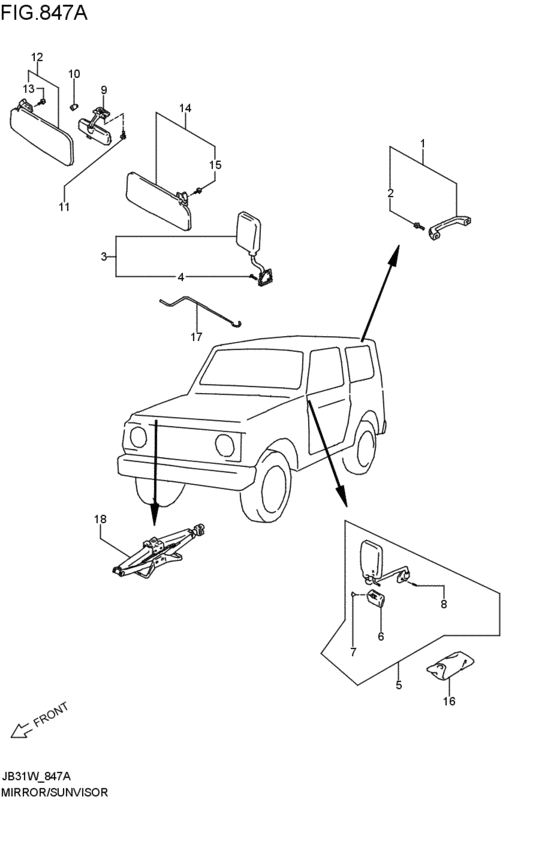

mirror / sun visor (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86200-66813-5ES
グリップセット,アシスタント(ブラック)
ブラック; STD,SA; 1993-05-01~1995-09-01 |
86200-66813-5ES |
— | ||
| replacement | |||||
|
1
|
1
86200-6681V-5ES GRIP SET,ASSISTANTブラック; STD,SA; 1993-05-01~1995-09-01 |
86200-6681V-5ES |
US $12.32 |
||
|
2
|
2
09125-06041-000 SCREW(6X20)1993-05-01~1995-09-01 |
09125-06041-000 |
from US $0.81 |
||
|
3
|
3
84701-80200-5PK MIRROR ASSY,RR VIEW,Rブラック ピラ-ツキ; 1993-05-01~1995-09-01 |
84701-80200-5PK |
US $329.84 |
||
|
4
|
4
09127-05013-000 SCREW(5X12)1993-05-01~1995-09-01 |
09127-05013-000 |
from US $0.96 |
||
|
5
|
5
84702-83C00-5PK MIRROR ASSY,RR VIEW,Lブラック ピラ-ツキ; 1993-05-01~1995-09-01 |
84702-83C00-5PK |
US $445.54 |
||
|
6
|
6
84720-83C00-5PK
ミラー,サイドアンダ(ブラック)
ブラック; 1993-05-01~1995-09-01 |
84720-83C00-5PK |
— | ||
|
7
|
7
84718-83C00-000
スクリュ,サイドアンダミラー
1993-05-01~1995-09-01 |
84718-83C00-000 |
— | ||
|
8
|
8
09127-05013-000 SCREW(5X12)1993-05-01~1995-09-01 |
09127-05013-000 |
from US $0.96 |
||
|
9
|
9
84703-80000-000 MIRROR ASSY INSIDE RR VIEW1993-05-01~1995-09-01 |
84703-80000-000 |
US $109.24 |
||
| replacement | |||||
|
9
|
9
84703-80000-5PK MIRROR ASSY,INS RR VIEW1993-05-01~1995-09-01 |
84703-80000-5PK |
from US $109.24 |
||
|
10
|
10
84781-80000-000 SUPPORT,INSIDE REAR VIEW1993-05-01~1995-09-01 |
84781-80000-000 |
from US $4.25 |
||
|
11
|
11
02142-05163-000
Bolt
1993-05-01~1995-09-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
11
|
11
02142-0516B-000 SCREW1993-05-01~1995-09-01 |
02142-0516B-000 |
from US $0.96 |
||
|
11
|
11
02142-0516A-000 SCREWScrew 1993-05-01~1995-09-01 |
02142-0516A-000 |
from US $0.76 |
||
|
12
|
12
84801-82811-4KJ
サンバイザセット,ライト(ベージュ)
ベ-ジュ; STD,SA; 1993-05-01~1995-09-01 |
84801-82811-4KJ |
— | ||
| replacement | |||||
|
12
|
12
84801-82812-4KJ
サンバイザセット,ライト(ベージュ)
ベ-ジュ; STD,SA; 1993-05-01~1995-09-01 |
84801-82812-4KJ |
— | ||
|
13
|
13
09127-05016-000
スクリュ,5X16
1993-05-01~1995-09-01 |
09127-05016-000 |
— | ||
| replacement | |||||
|
13
|
13
02122-0516B-000 SCREW1993-05-01~1995-09-01 |
02122-0516B-000 |
from US $0.80 |
||
|
14
|
14
84800-80841-4KJ
SUNVISOR SET LH
ベ-ジュ; 1993-05-01~1995-09-01 |
84800-80841-4KJ |
— | ||
| replacement | |||||
|
14
|
14
84800-80842-4KJ SUNVISOR SET,Lベ-ジュ; 1993-05-01~1995-09-01 |
84800-80842-4KJ |
from US $32.42 |
||
|
15
|
15
09127-05016-000
スクリュ,5X16
1993-05-01~1995-09-01 |
09127-05016-000 |
— | ||
| replacement | |||||
|
15
|
15
02122-0516B-000 SCREW1993-05-01~1995-09-01 |
02122-0516B-000 |
from US $0.80 |
||
|
16
|
16
09800-40024-000 TOOL ASSYSpanner, wheel wrench, pliers, screwdriver, jack handle; 1993-05-01~1995-09-01 |
09800-40024-000 |
from US $25.54 |
||
|
17
|
17
09824-00017-000 HANDLE,JACK1993-05-01~1995-09-01 |
09824-00017-000 |
from US $5.31 |
||
|
18
|
18
89913-77E10-000
ジャッキアッシ
1993-05-01~1995-09-01 |
89913-77E10-000 |
— | ||
| replacements | |||||
|
18
|
18
89913-77EVV-000 JACK ASSY1993-05-01~1995-09-01 |
89913-77EVV-000 |
from US $50.81 |
||
|
18
|
18
89913-77EV1-000
JACK COMP
1993-05-01~1995-09-01 |
89913-77EV1-000 |
— | ||
