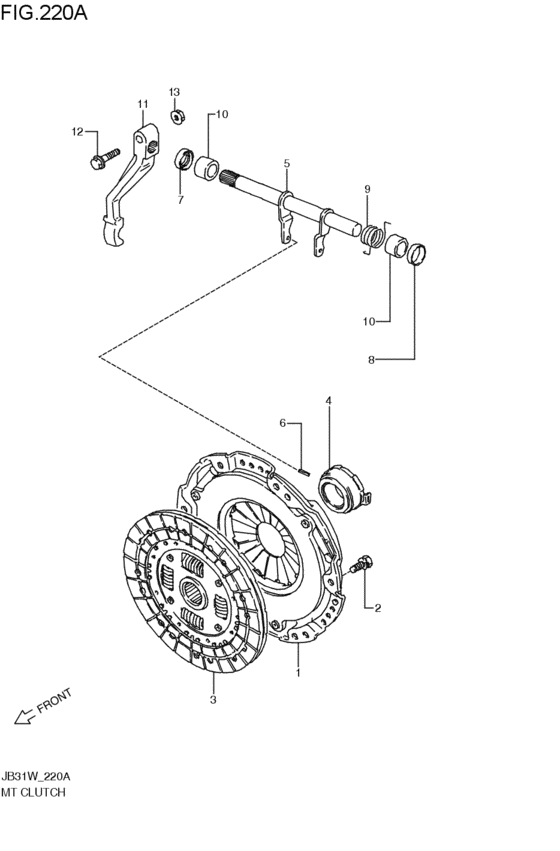

mt - clutch (5MT; 1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-83030-000 COVER CLUTCH5MT; 1993-05-01~1995-09-01 |
22100-83030-000 |
US $148.66 |
||
| replacement | |||||
|
1
|
1
22100-81A01-000 COVER ASSY,CLUTCH5MT; 1993-05-01~1995-09-01 |
22100-81A01-000 |
from US $148.66 |
||
|
2
|
2
01570-08163-000
Bolt
5MT; 1993-05-01~1995-09-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
2
|
2
01570-0816A-000 Bolt5MT; 1993-05-01~1995-09-01 |
01570-0816A-000 |
from US $1.12 |
||
|
3
|
3
22400-83030-000 DISC CLUTCH5MT; 1993-05-01~1995-09-01 |
22400-83030-000 |
US $125.69 |
||
| replacement | |||||
|
3
|
3
22400-83051-000 DISC COMP,CLUTCH5MT; 1993-05-01~1995-09-01 |
22400-83051-000 |
from US $96.80 |
||
|
4
|
4
23265-70C00-000 BEARING,CLUTCH RELEASE5MT; 1993-05-01~1995-09-01 |
23265-70C00-000 |
from US $45.95 |
||
|
5
|
5
23260-83013-000 SHAFT,CLUTCH RELEASE5MT; 1993-05-01~1995-09-01 |
23260-83013-000 |
US $22.57 |
||
| replacement | |||||
|
5
|
5
23260-83014-000 SHAFT,CLUTCH RELEASE5MT; 1993-05-01~1995-09-01 |
23260-83014-000 |
US $116 |
||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock 5MT; 1993-05-01~1995-09-01 |
09205-03019-000 |
from US $0.81 |
||
|
7
|
7
09283-14006-000 SEAL,OIL(14X22X6)5MT; 1993-05-01~1995-09-01 |
09283-14006-000 |
from US $3.87 |
||
|
8
|
8
09241-22003-000 PLUG5MT; 1993-05-01~1995-09-01 |
09241-22003-000 |
from US $1.24 |
||
|
9
|
9
09448-20006-000 SPRING5MT; 1993-05-01~1995-09-01 |
09448-20006-000 |
from US $1.17 |
||
|
10
|
10
09300-14017-000 BUSH(14X22X15)5MT; 1993-05-01~1995-09-01 |
09300-14017-000 |
from US $2.13 |
||
|
11
|
11
23266-83002-000 ARM,CLUTCH RELEASE5MT; 1993-05-01~1995-09-01 |
23266-83002-000 |
from US $26.03 |
||
|
12
|
12
01550-08353-000
Bolt, rear
5MT; 1993-05-01~1995-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0835B-000 Bolt5MT; 1993-05-01~1995-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
12
|
12
01550-0835A-000 Bolt5MT; 1993-05-01~1995-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
08316-10083-000
Nut
5MT; 1993-05-01~1995-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUT5MT; 1993-05-01~1995-09-01 |
08316-1008B-000 |
from US $0.76 |
||
