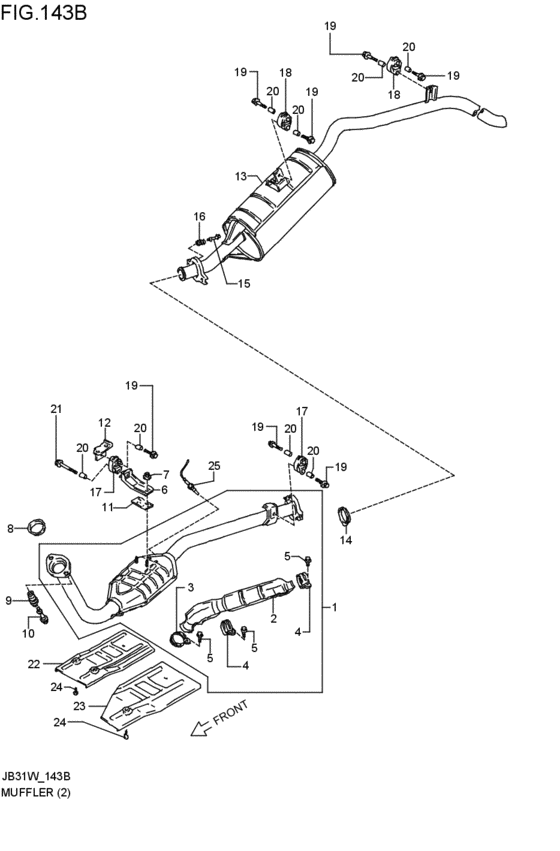

muffler (1993-12-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-80C01-000
パイプ,エキゾースト,センタ
1993-12-01~1995-09-01 |
14150-80C01-000 |
— | ||
| replacement | |||||
|
1
|
1
14150-80CV1-000
PIPE,EXH CENTER
1993-12-01~1995-09-01 |
14150-80CV1-000 |
— | ||
|
2
|
2
14351-83001-000
プロテクタ
1993-12-01~1995-09-01 |
14351-83001-000 |
— | ||
| replacement | |||||
|
2
|
2
14351-8300V-000 PROTECTOR1993-12-01~1995-09-01 |
14351-8300V-000 |
US $50.40 |
||
|
3
|
3
14182-83010-000
クランプ,NO.2
1993-12-01~1995-09-01 |
14182-83010-000 |
— | ||
| replacement | |||||
|
3
|
3
14182-8301V-000 CLAMP,NO.21993-12-01~1995-09-01 |
14182-8301V-000 |
US $15.52 |
||
|
4
|
4
14182-57B10-000
Сlamp
1993-12-01~1995-09-01 |
14182-57B10-000 |
— | ||
| replacement | |||||
|
4
|
4
14182-57B1V-000 CLAMP1993-12-01~1995-09-01 |
14182-57B1V-000 |
US $24 |
||
|
5
|
5
01550-06163-000
Bolt
1993-12-01~1995-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0616B-000 Bolt1993-12-01~1995-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
01550-0616A-000 Bolt1993-12-01~1995-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
6
|
6
14284-83021-000
BRACKET,EXH CENTER PIPE NO.1
1993-12-01~1995-09-01 |
14284-83021-000 |
— | ||
|
7
|
7
08316-10083-000
Nut
1993-12-01~1995-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUT1993-12-01~1995-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
14183-60A11-000
RING SEAL EXHAUST PIPE
1993-12-01~1995-09-01 |
14183-60A11-000 |
— | ||
| replacement | |||||
|
8
|
8
14183-76A00-000 RING,SEAL EXH PIPE1993-12-01~1995-09-01 |
14183-76A00-000 |
from US $12.62 |
||
|
9
|
9
14492-82600-000
Spring
CHKK; 1993-12-01~1995-09-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
9
|
9
14492-67D00-000 SPRING,EXH PIPECHKK; 1993-12-01~1995-09-01 |
14492-67D00-000 |
from US $6.21 |
||
|
10
|
10
09119-10041-000 BOLT(10X65)1993-12-01~1995-09-01 |
09119-10041-000 |
from US $5.18 |
||
|
11
|
11
14283-83001-000 INSULATOR,EXH BRKT NA1993-12-01~1995-09-01 |
14283-83001-000 |
US $2.41 |
||
|
12
|
12
14285-83010-000 BRACKET,EXH CENTER PIPE NO.25MT; 1993-12-01~1995-09-01 |
14285-83010-000 |
US $3.69 |
||
|
13
|
13
14300-83301-000
MUFFLER
1993-12-01~1995-09-01 |
14300-83301-000 |
— | ||
| replacement | |||||
|
13
|
13
14300-833V1-000 MUFFLER1993-12-01~1995-09-01 |
14300-833V1-000 |
US $106 |
||
|
14
|
14
14183-60A11-000
RING SEAL EXHAUST PIPE
1993-12-01~1995-09-01 |
14183-60A11-000 |
— | ||
| replacement | |||||
|
14
|
14
14183-76A00-000 RING,SEAL EXH PIPE1993-12-01~1995-09-01 |
14183-76A00-000 |
from US $12.62 |
||
|
15
|
15
09119-10042-000
ボルト,10X65
1993-12-01~1995-09-01 |
09119-10042-000 |
— | ||
| replacement | |||||
|
15
|
15
09119-10041-000 BOLT(10X65)1993-12-01~1995-09-01 |
09119-10041-000 |
from US $5.18 |
||
|
16
|
16
14492-82600-000
Spring
1993-12-01~1995-09-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
16
|
16
14492-67D00-000 SPRING,EXH PIPE1993-12-01~1995-09-01 |
14492-67D00-000 |
from US $6.21 |
||
|
17
|
17
14281-78010-000
Mounting, muffler
1993-12-01~1995-09-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
17
|
17
14281-60G01-000 MOUNTING,MUF1993-12-01~1995-09-01 |
14281-60G01-000 |
from US $5.96 |
||
|
18
|
18
14281-79010-000
Mounting, muffler
1993-12-01~1995-09-01 |
14281-79010-000 |
— | ||
| replacement | |||||
|
18
|
18
14281-60G11-000 MOUNTING,MUFFLER(HS60)1993-12-01~1995-09-01 |
14281-60G11-000 |
from US $4.59 |
||
|
19
|
19
01550-08353-000
Bolt, rear
1993-12-01~1995-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0835B-000 Bolt1993-12-01~1995-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
19
|
19
01550-0835A-000 Bolt1993-12-01~1995-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
20
|
20
09180-08057-000
Spacer
1993-12-01~1995-09-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
20
|
20
09180-08227-000 SPACER(8.2X12.5X23.5)1993-12-01~1995-09-01 |
09180-08227-000 |
from US $1.04 |
||
|
21
|
21
01550-08353-000
Bolt, rear
1993-12-01~1995-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0835B-000 Bolt1993-12-01~1995-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
21
|
21
01550-0835A-000 Bolt1993-12-01~1995-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
22
|
22
14231-80011-000 PANEL,HEAT PROTECTOR5MT; 1993-12-01~1995-09-01 |
14231-80011-000 |
US $15.84 |
||
|
24
|
24
03141-06123-000
Screw 6x12
5MT; 1993-12-01~1995-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0612A-000 SCREW5MT; 1993-12-01~1995-09-01 |
03141-0612A-000 |
US $0.76 |
||
|
25
|
25
14810-58B01-000
Fuse,thermo
1993-12-01~1995-09-01 |
14810-58B01-000 |
— | ||
| replacement | |||||
|
25
|
25
14810-58B0V-000 FUSE,THERMO1993-12-01~1995-09-01 |
14810-58B0V-000 |
from US $140.67 |
||
