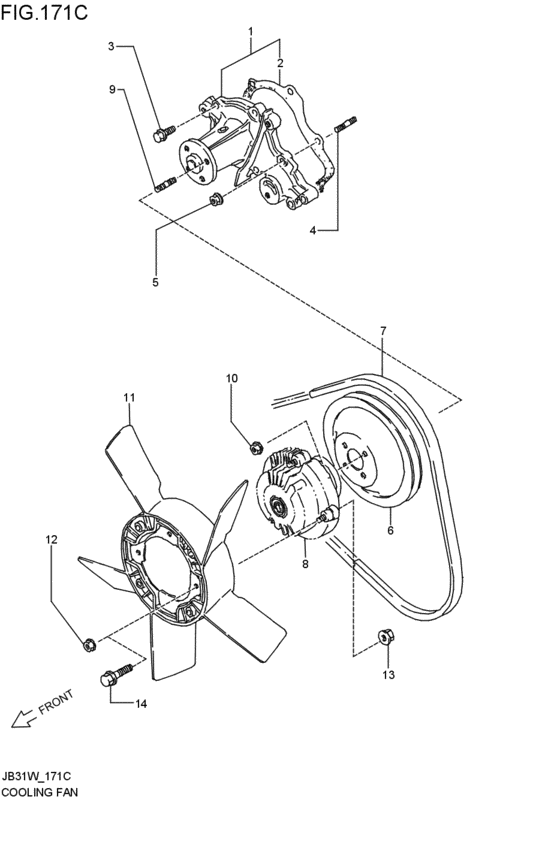

ク - ring fan (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-83814-000
WATER PUMP ASSY
1993-05-01~1995-09-01 |
17400-83814-000 |
— | ||
| replacements | |||||
|
1
|
1
17400-83815-000
PUMP SET,WATER
1993-05-01~1995-09-01 |
17400-83815-000 |
— | ||
|
1
|
1
17400-83816-000 Pump Set,water1993-05-01~1995-09-01 |
17400-83816-000 |
from US $103.75 |
||
|
2
|
2
17431-60A00-000 GASKET,WATER PUMP1993-05-01~1995-09-01 |
17431-60A00-000 |
from US $5.12 |
||
|
3
|
3
09103-06066-000 BOLT(6X23)Bolt (6x23) 1993-05-01~1995-09-01 |
09103-06066-000 |
from US $0.56 |
||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
1993-05-01~1995-09-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUD1993-05-01~1995-09-01 |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
1993-05-01~1995-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT1993-05-01~1995-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
17511-80C00-000 PULLEY,WATER PUMP5MT; 1993-11-01~1995-09-01 |
17511-80C00-000 |
US $24.84 |
||
|
6
|
6
17511-82000-000 PULLEY,WATER PUMP5MT; 1993-05-01~1993-11-01 |
17511-82000-000 |
from US $10.40 |
||
|
7
|
7
17521-80C00-000
ベルト,ウォータポンプ,L:822(FMー32.5)
5MT; 1993-11-01~1995-09-01 |
17521-80C00-000 |
— | ||
| replacement | |||||
|
7
|
7
17521-78000-000 BELT,WATER PUMP L:8255MT; 1993-11-01~1995-09-01 |
17521-78000-000 |
from US $9.77 |
||
|
7
|
7
17521-82020-000
BELT,WATER PUMP L:834
5MT; 1993-05-01~1993-11-01 |
17521-82020-000 |
— | ||
| replacement | |||||
|
7
|
7
17521-82020-CDN
Belt,wtr pump fm-33
5MT; 1993-05-01~1993-11-01 |
17521-82020-CDN |
— | ||
|
8
|
8
17120-60A00-000 CLURCH ASSY1993-05-01~1995-08-01 |
17120-60A00-000 |
US $159.55 |
||
| replacements | |||||
|
8
|
8
17120-60A01-000 CLUTCH ASSY,FAN1993-05-01~1995-08-01 |
17120-60A01-000 |
from US $159.55 |
||
|
8
|
8
01550-0620B-000 BoltBolt, inspection cap 1993-05-01~1995-08-01 |
01550-0620B-000 |
from US $0.76 |
||
|
8
|
8
08316-1006B-000 NUT1993-05-01~1995-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
17120-60A01-000 CLUTCH ASSY,FAN1995-08-01~1995-09-01 |
17120-60A01-000 |
from US $159.55 |
||
|
9
|
9
01411-06203-000
STUD 6X20
1993-05-01~1995-09-01 |
01411-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01411-0620A-000 BOLT,STUD1993-05-01~1995-09-01 |
01411-0620A-000 |
from US $0.79 |
||
|
10
|
10
08361-35063-000
Nut
1993-05-01~1995-09-01 |
08361-35063-000 |
— | ||
| replacement | |||||
|
10
|
10
08361-3506A-000 NUT1993-05-01~1995-09-01 |
08361-3506A-000 |
from US $0.80 |
||
|
11
|
11
17110-60A00-000 FAN,ENG COOLING5MT; 1993-11-01~1995-09-01 |
17110-60A00-000 |
from US $33.23 |
||
|
11
|
11
17110-83000-000 FAN,ENG COOLING5MT; 1993-05-01~1993-11-01 |
17110-83000-000 |
US $42.32 |
||
|
12
|
12
08361-35063-000
Nut
1993-05-01~1995-08-01 |
08361-35063-000 |
— | ||
| replacement | |||||
|
12
|
12
08361-3506A-000 NUT1993-05-01~1995-08-01 |
08361-3506A-000 |
from US $0.80 |
||
|
13
|
13
08316-10063-000
Nut
1995-08-01~1995-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUT1995-08-01~1995-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
01550-06203-000
Bolt
1995-08-01~1995-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0620B-000 BoltBolt, inspection cap 1995-08-01~1995-09-01 |
01550-0620B-000 |
from US $0.76 |
||
