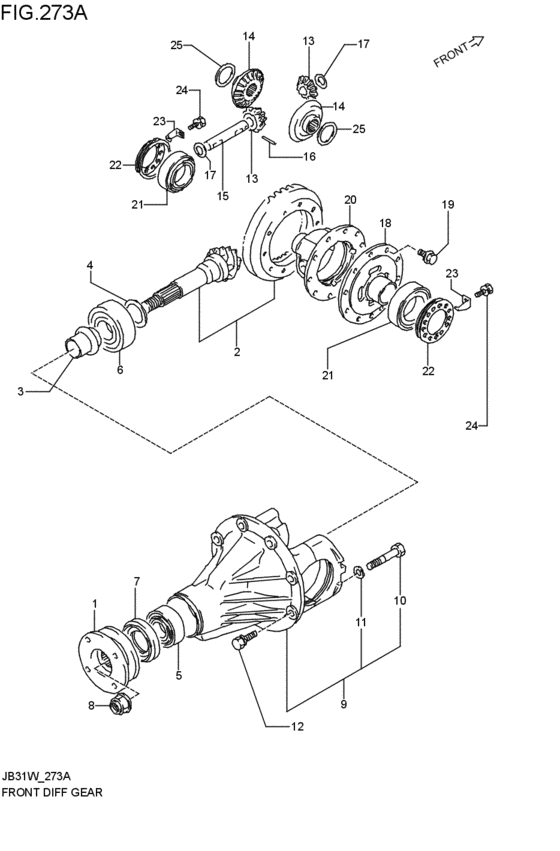

フロントデファレンシャルギヤ (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINT1993-05-01~1995-09-01 |
27110-56B01-000 |
from US $44.03 |
||
|
2
|
2
27300-83832-000 BEVEL PINION&GEAR SET1993-05-01~1995-09-01 |
27300-83832-000 |
from US $461.12 |
||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION1993-05-01~1995-09-01 |
27315-60A01-000 |
from US $16.83 |
||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) T:0.30; 1993-05-01~1995-09-01 |
09181-35101-000 |
from US $1.49 |
||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12)T:1.12; 1993-05-01~1995-09-01 |
09181-35117-000 |
from US $1.44 |
||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18)T:1.18; 1993-05-01~1995-09-01 |
09181-35119-000 |
from US $1.82 |
||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24)T:1.24; 1993-05-01~1995-09-01 |
09181-35122-000 |
from US $1.76 |
||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3)T:1.30; 1993-05-01~1995-09-01 |
09181-35125-000 |
from US $1.76 |
||
|
5
|
5
09265-30010-000 BEARING(30X72X20.75)1993-05-01~1995-09-01 |
09265-30010-000 |
from US $45.60 |
||
|
6
|
6
09265-35002-000
ベアリング,35X80X22.75
1993-05-01~1995-09-01 |
09265-35002-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-35011-000 BEARING(35X80X22.75)1993-05-01~1995-09-01 |
09265-35011-000 |
from US $40 |
||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18)1993-05-01~1995-09-01 |
09283-40027-000 |
from US $7.54 |
||
|
8
|
8
27375-60A00-000 NUT,UNIVERSAL JOINT1993-05-01~1995-09-01 |
27375-60A00-000 |
from US $6.71 |
||
|
9
|
9
27450-60830-000 CARRIER ASSY,DIFF1993-05-01~1995-09-01 |
27450-60830-000 |
from US $183.92 |
||
|
10
|
10
09111-12010-000 BOLT(12X58)1993-05-01~1995-09-01 |
09111-12010-000 |
from US $2.43 |
||
|
11
|
11
08321-01123-000
Washer
1993-05-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-0112A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
12
|
12
01570-08253-000
Bolt, upper
1993-05-01~1995-09-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
12
|
12
01570-0825B-000 Bolt1993-05-01~1995-09-01 |
01570-0825B-000 |
from US $1.28 |
||
|
12
|
12
01570-0825A-000 Bolt1993-05-01~1995-09-01 |
01570-0825A-000 |
from US $1.06 |
||
|
13
|
13
27331-83020-000 PINION,DIFFERENTIAL1993-05-01~1995-09-01 |
27331-83020-000 |
from US $31.59 |
||
| replacements | |||||
|
13
|
13
27331-76A20-000
PINION,DIFFERENTIAL
1993-05-01~1995-09-01 |
27331-76A20-000 |
— | ||
|
13
|
13
27331-76A21-000 Pinion,differential1993-05-01~1995-09-01 |
27331-76A21-000 |
from US $31.91 |
||
|
14
|
14
27341-64B00-000
GEAR DIFFOLD
1993-05-01~1995-09-01 |
27341-64B00-000 |
— | ||
| replacements | |||||
|
14
|
14
27341-76A21-000
GEAR,DIFF
1993-05-01~1995-09-01 |
27341-76A21-000 |
— | ||
|
14
|
14
27341-76A22-000 Gear,diff1993-05-01~1995-09-01 |
27341-76A22-000 |
from US $43.56 |
||
|
15
|
15
27351-64B20-000 SHAFT,DIFF SIDE PINION1993-05-01~1995-09-01 |
27351-64B20-000 |
from US $15.77 |
||
|
16
|
16
09205-05007-000 PIN,SPRING(5X36)1993-05-01~1995-09-01 |
09205-05007-000 |
from US $1.04 |
||
|
17
|
17
09164-15006-000 WASHER1993-05-01~1995-09-01 |
09164-15006-000 |
from US $1.67 |
||
|
18
|
18
27411-60A02-000
CASE DIFF
1993-05-01~1995-09-01 |
27411-60A02-000 |
— | ||
|
19
|
19
09103-10220-000 BOLT(10X23)1993-05-01~1995-09-01 |
09103-10220-000 |
US $22.40 |
||
|
20
|
20
27421-60A02-000
CASE DIFFERENTIAL
1993-05-01~1995-09-01 |
27421-60A02-000 |
— | ||
|
21
|
21
09265-45002-000 BEARING(45.2X80X19.84)1993-05-01~1995-09-01 |
09265-45002-000 |
from US $45.60 |
||
|
22
|
22
27461-83000-000 ADJUSTER,DIFF SIDE BEARING1993-05-01~1995-09-01 |
27461-83000-000 |
from US $7.52 |
||
|
23
|
23
27462-63202-000 PLATE,BEARING LOCK1993-05-01~1995-09-01 |
27462-63202-000 |
from US $2.74 |
||
|
24
|
24
01550-08123-000
Bolt
1993-05-01~1995-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0812B-000 BoltPlug, drain 1993-05-01~1995-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
24
|
24
01550-0812A-000 Bolt1993-05-01~1995-09-01 |
01550-0812A-000 |
from US $0.91 |
||
|
25
|
25
09160-35002-000 WASHER(35X46X1)1993-05-01~1995-09-01 |
09160-35002-000 |
from US $1.53 |
||
|
25
|
25
09160-35003-000 WASHER(35X46X1.1)1993-05-01~1995-09-01 |
09160-35003-000 |
from US $1.89 |
||
|
25
|
25
09160-35004-000 WASHER(35X46X1.2)1993-05-01~1995-09-01 |
09160-35004-000 |
from US $1.94 |
||
|
25
|
25
09160-35006-000 WASHER(35X46X0.9)1993-05-01~1995-09-01 |
09160-35006-000 |
from US $1.73 |
||
