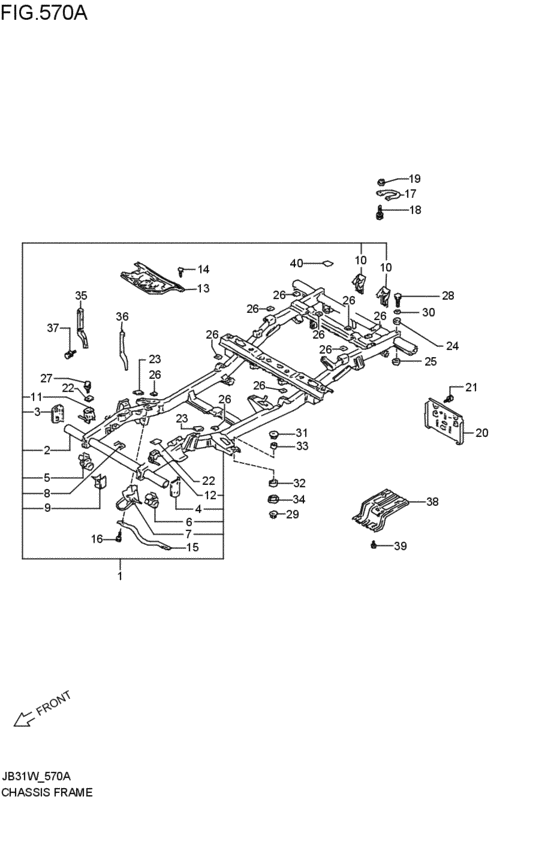

シャシフレ - ム (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-82C10-000
フレームアッシ
5MT; 1993-05-01~1995-09-01 |
57000-82C10-000 |
— | ||
|
2
|
2
57211-80000-000 CROSSMEMBER,1ST1993-05-01~1995-09-01 |
57211-80000-000 |
US $163.20 |
||
|
3
|
3
57461-80001-000 BRACKET,FR BUMPER,R1993-05-01~1995-09-01 |
57461-80001-000 |
US $13.44 |
||
|
4
|
4
57471-80001-000 BRACKET,FR BUMPER,L1993-05-01~1995-09-01 |
57471-80001-000 |
US $8.02 |
||
|
5
|
5
57710-83301-000 HANGER,SPRING NO.1,R1993-05-01~1995-09-01 |
57710-83301-000 |
US $34.59 |
||
|
6
|
6
57720-83301-000 HANGER,SPRING NO.1,L1993-05-01~1995-09-01 |
57720-83301-000 |
US $34.59 |
||
|
7
|
7
57270-83011-000
BRACKET,FARST CROSSMEMBER
5MT; 1993-05-01~1995-09-01 |
57270-83011-000 |
— | ||
|
8
|
8
57551-83000-000 BRACKET,ENG SPLASH PNL FR1993-05-01~1995-09-01 |
57551-83000-000 |
US $2.94 |
||
|
9
|
9
57680-83001-000 BRACKET,STABILIZER5MT; 1993-05-01~1995-09-01 |
57680-83001-000 |
US $79.49 |
||
|
10
|
10
57280-80020-000 BRACKET,RR LICENSE1993-05-01~1995-09-01 |
57280-80020-000 |
US $14.88 |
||
|
11
|
11
57310-83000-000 BRACKET,1ST MOUNTING,R1993-05-01~1995-09-01 |
57310-83000-000 |
US $25.21 |
||
|
12
|
12
57320-83000-000 BRACKET,1ST MOUNTING,L1993-05-01~1995-09-01 |
57320-83000-000 |
US $25.21 |
||
|
13
|
13
71411-83002-000 PANEL,ENGINE SPLASH1993-05-01~1995-09-01 |
71411-83002-000 |
US $38.77 |
||
|
14
|
14
03241-06103-000
New Genuine Part
1993-05-01~1995-09-01 |
03241-06103-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0610A-000 SCREW1993-05-01~1995-09-01 |
03241-0610A-000 |
US $0.76 |
||
|
15
|
15
71441-83002-000
メンバ,サブ
5MT; 1993-05-01~1995-09-01 |
71441-83002-000 |
— | ||
| replacement | |||||
|
15
|
15
71441-50C00-000 MEMBER,SUB5MT; 1993-05-01~1995-09-01 |
71441-50C00-000 |
US $26.31 |
||
|
16
|
16
01570-10203-000
ボルト
5MT; 1993-05-01~1995-09-01 |
01570-10203-000 |
— | ||
| replacement | |||||
|
16
|
16
01570-1020A-000 Bolt5MT; 1993-05-01~1995-09-01 |
01570-1020A-000 |
US $0.96 |
||
|
17
|
17
71471-83300-000 HOOK,RR1993-05-01~1995-09-01 |
71471-83300-000 |
US $15.36 |
||
|
18
|
18
01570-12353-000
ボルト
1993-05-01~1995-09-01 |
01570-12353-000 |
— | ||
| replacement | |||||
|
18
|
18
01570-1235A-000 Bolt1993-05-01~1995-09-01 |
01570-1235A-000 |
US $21.70 |
||
|
19
|
19
08316-10123-000
Nut
1993-05-01~1995-09-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1012A-000 NUT1993-05-01~1995-09-01 |
08316-1012A-000 |
from US $0.96 |
||
|
20
|
20
57151-73003-000 BRACKET,RR LICENSE PLATE1993-05-01~1995-09-01 |
57151-73003-000 |
from US $18.24 |
||
|
21
|
21
02112-36123-000
Screw
1993-05-01~1994-02-01 |
02112-36123-000 |
— | ||
| replacements | |||||
|
21
|
21
02112-3612B-000 SCREW1993-05-01~1994-02-01 |
02112-3612B-000 |
US $13.60 |
||
|
21
|
21
02112-3612A-000 SCREW1993-05-01~1994-02-01 |
02112-3612A-000 |
from US $0.96 |
||
|
22
|
22
71491-80002-000 PAD,BODY MOUNTING NO.11993-05-01~1995-09-01 |
71491-80002-000 |
from US $2.90 |
||
|
23
|
23
71493-83001-000 PAD,BODY MOUNTING NO.31993-05-01~1995-09-01 |
71493-83001-000 |
from US $1.80 |
||
|
24
|
24
71494-80001-000 PAD,BODY MOUNTING NO.41993-05-01~1995-09-01 |
71494-80001-000 |
US $1.60 |
||
|
25
|
25
71494-80202-000 PAD,BODY MOUNTING NO.41993-05-01~1995-09-01 |
71494-80202-000 |
US $11.52 |
||
|
26
|
26
57321-52001-000 PAD,BODY MOUNTING NO.21993-05-01~1995-09-01 |
57321-52001-000 |
US $2.24 |
||
|
26
|
26
71492-80011-000 PAD,BODY MOUNTING NO.21993-05-01~1995-09-01 |
71492-80011-000 |
US $8.64 |
||
|
27
|
27
09118-10041-000 BOLT(10X40)1993-05-01~1995-09-01 |
09118-10041-000 |
US $20.20 |
||
|
28
|
28
09100-10168-000 BOLT(10X37)1993-05-01~1995-09-01 |
09100-10168-000 |
from US $0.63 |
||
|
29
|
29
09159-10060-000 NUT1993-05-01~1995-09-01 |
09159-10060-000 |
from US $1.28 |
||
|
30
|
30
09160-10094-000 WASHER(10.5X30X3.2)1993-05-01~1995-09-01 |
09160-10094-000 |
from US $1.12 |
||
|
31
|
31
71610-83000-000 CUSHION,BODY MTG UPPER1993-05-01~1995-09-01 |
71610-83000-000 |
from US $7.25 |
||
|
32
|
32
71620-83000-000 CUSHION,BODY MTG,LOWER1993-05-01~1995-09-01 |
71620-83000-000 |
from US $6.41 |
||
|
33
|
33
71631-83000-000
カラー,ボディマウンチング
1993-05-01~1995-09-01 |
71631-83000-000 |
— | ||
| replacement | |||||
|
33
|
33
71631-83001-000 COLLAR,BODY MOUNTING1993-05-01~1995-09-01 |
71631-83001-000 |
US $1.60 |
||
|
34
|
34
71632-83010-000
BOTTOM BODY MOUNTING
1993-05-01~1995-09-01 |
71632-83010-000 |
— | ||
| replacement | |||||
|
34
|
34
71632-83011-000 BOTTOM,BODY MOUNTING1993-05-01~1995-09-01 |
71632-83011-000 |
from US $2.24 |
||
|
35
|
35
71421-82C10-000
STAY,RADIATOR,R
1993-05-01~1995-09-01 |
71421-82C10-000 |
— | ||
|
36
|
36
71431-82C11-000
Stay,radiator,l
1993-05-01~1995-09-01 |
71431-82C11-000 |
— | ||
|
37
|
37
01570-08203-000
Bolt
1993-05-01~1995-09-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
37
|
37
01570-0820B-000 Bolt1993-05-01~1995-09-01 |
01570-0820B-000 |
US $17.30 |
||
|
37
|
37
01570-0820A-000 Bolt1993-05-01~1995-09-01 |
01570-0820A-000 |
from US $0.96 |
||
|
38
|
38
75411-83001-000 PANEL,HEAT PROTECTOR1993-05-01~1995-09-01 |
75411-83001-000 |
US $84.80 |
||
|
39
|
39
03141-06163-000
Screw 6x16
1993-05-01~1995-09-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
39
|
39
03141-0616A-000 SCREW1993-05-01~1995-09-01 |
03141-0616A-000 |
from US $0.76 |
||
|
40
|
40
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 1993-05-01~1995-09-01 |
84761-50X50-000 |
from US $6.72 |
||
