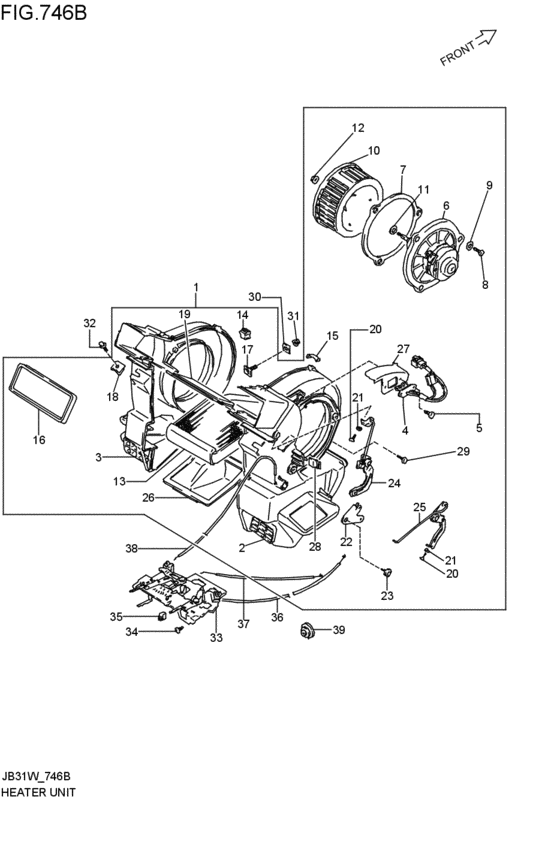

ヒ - タユニット (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-70A02-000
Heater unit
1993-05-01~1995-09-01 |
74100-70A02-000 |
— | ||
|
2
|
2
74111-83004-000 CASE,HEATER,R1993-05-01~1995-09-01 |
74111-83004-000 |
US $60.35 |
||
|
3
|
3
74112-83004-000 CASE,HEATER,L1993-05-01~1995-09-01 |
74112-83004-000 |
US $55.94 |
||
|
4
|
4
74120-83000-000 REGISTER1993-05-01~1995-09-01 |
74120-83000-000 |
US $32 |
||
|
5
|
5
03141-04103-000
スクリュ
1993-05-01~1995-09-01 |
03141-04103-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0410A-000 SCREW1993-05-01~1995-09-01 |
03141-0410A-000 |
US $0.80 |
||
|
6
|
6
74140-83000-000 MOTOR ASSY,HEATER1993-05-01~1995-09-01 |
74140-83000-000 |
from US $190.89 |
||
|
7
|
7
88153-80070-000
パッキング
1993-05-01~1995-09-01 |
88153-80070-000 |
— | ||
| replacement | |||||
|
7
|
7
74261-86000-000 PACKING,MOTOR1993-05-01~1995-09-01 |
74261-86000-000 |
US $9.64 |
||
|
8
|
8
03212-05163-000
Screw
1993-05-01~1995-09-01 |
03212-05163-000 |
— | ||
| replacements | |||||
|
8
|
8
03212-0516B-000
SCREW
1993-05-01~1995-09-01 |
03212-0516B-000 |
— | ||
|
8
|
8
13765-48GV0-000 Screw1993-05-01~1995-09-01 |
13765-48GV0-000 |
from US $3.55 |
||
|
9
|
9
08322-01057-000 WASHERWasher, front hook holder 1993-05-01~1995-09-01 |
08322-01057-000 |
from US $0.80 |
||
|
10
|
10
88140-80070-000
ファン,ブロア
1993-05-01~1995-09-01 |
88140-80070-000 |
— | ||
| replacement | |||||
|
10
|
10
74141-50A00-000 FAN,BLOWER1993-05-01~1995-09-01 |
74141-50A00-000 |
US $31.20 |
||
|
11
|
11
74131-82000-000
ワッシャ,ファン
1993-05-01~1995-09-01 |
74131-82000-000 |
— | ||
| replacement | |||||
|
11
|
11
17112-82000-000 WASHER,FAN1993-05-01~1995-09-01 |
17112-82000-000 |
from US $0.34 |
||
|
12
|
12
08316-20053-000
Nut
1993-05-01~1995-09-01 |
08316-20053-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2005A-000 NUT1993-05-01~1995-09-01 |
08316-2005A-000 |
from US $0.80 |
||
|
13
|
13
74130-83000-000 UNIT,HEATER1993-05-01~1995-09-01 |
74130-83000-000 |
US $382.72 |
||
|
14
|
14
74175-80000-000
Bush,heater
1993-05-01~1995-09-01 |
74175-80000-000 |
— | ||
|
15
|
15
74133-82000-000 CLAMP,CASE1993-05-01~1995-09-01 |
74133-82000-000 |
US $1.60 |
||
|
16
|
16
74165-83000-000 PACKING1993-05-01~1995-09-01 |
74165-83000-000 |
US $6.40 |
||
|
17
|
17
74180-80000-000 BRACKET1993-05-01~1995-09-01 |
74180-80000-000 |
US $4.05 |
||
|
18
|
18
74171-80000-000 HOLDER,HEATER UNIT1993-05-01~1995-09-01 |
74171-80000-000 |
US $4.86 |
||
|
19
|
19
74113-83000-000
ダンパ
1993-05-01~1995-09-01 |
74113-83000-000 |
— | ||
| replacement | |||||
|
19
|
19
74170-70A01-000 LEVER ASSY,VENT1993-05-01~1995-09-01 |
74170-70A01-000 |
US $24.66 |
||
|
20
|
20
02112-03083-000
Screw
1993-05-01~1995-09-01 |
02112-03083-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-0308A-000 SCREW1993-05-01~1995-09-01 |
02112-0308A-000 |
from US $0.96 |
||
|
21
|
21
08321-21033-000
Washer lock
1993-05-01~1995-09-01 |
08321-21033-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-2103B-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-2103B-000 |
from US $7.70 |
||
|
22
|
22
74163-70A00-000
レバー
1993-05-01~1995-09-01 |
74163-70A00-000 |
— | ||
| replacement | |||||
|
22
|
22
74170-70A01-000 LEVER ASSY,VENT1993-05-01~1995-09-01 |
74170-70A01-000 |
US $24.66 |
||
|
23
|
23
74183-82005-000 SCREW,LINK1993-05-01~1995-09-01 |
74183-82005-000 |
US $1.73 |
||
|
24
|
24
74170-70A01-000 LEVER ASSY,VENT1993-05-01~1995-09-01 |
74170-70A01-000 |
US $24.66 |
||
|
25
|
25
74180-70A01-000
LEVER ASSY,HEAT
1993-05-01~1995-09-01 |
74180-70A01-000 |
— | ||
|
26
|
26
74114-83002-000 DAMPER1993-05-01~1995-09-01 |
74114-83002-000 |
US $12.64 |
||
|
27
|
27
74119-83000-000
PLATE
1993-05-01~1995-09-01 |
74119-83000-000 |
— | ||
|
28
|
28
74151-85000-000 CLAMP,LOCK1993-05-01~1995-09-01 |
74151-85000-000 |
US $3.72 |
||
|
29
|
29
03511-05163-000
Screw
1993-05-01~1995-09-01 |
03511-05163-000 |
— | ||
| replacement | |||||
|
29
|
29
03511-0516A-000 SCREW1993-05-01~1995-09-01 |
03511-0516A-000 |
from US $0.76 |
||
|
30
|
30
74172-80000-000
パッド
1993-05-01~1995-09-01 |
74172-80000-000 |
— | ||
| replacement | |||||
|
30
|
30
61544-94500-000 PAD1993-05-01~1995-09-01 |
61544-94500-000 |
from US $1.60 |
||
|
31
|
31
08316-10083-000
Nut
1993-05-01~1995-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
31
|
31
08316-1008B-000 NUT1993-05-01~1995-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
32
|
32
01550-06163-000
Bolt
1993-05-01~1995-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0616B-000 Bolt1993-05-01~1995-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
32
|
32
01550-0616A-000 Bolt1993-05-01~1995-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
33
|
33
74400-70A00-000 LEVER ASSY,HTR CONT1993-05-01~1995-09-01 |
74400-70A00-000 |
from US $59.74 |
||
|
34
|
34
03241-05123-000
Screw
1993-05-01~1995-09-01 |
03241-05123-000 |
— | ||
| replacement | |||||
|
34
|
34
03241-0512A-000 SCREW1993-05-01~1995-09-01 |
03241-0512A-000 |
from US $0.68 |
||
|
35
|
35
74417-60A00-000 KNOB,CONTROL LEVER1993-05-01~1995-09-01 |
74417-60A00-000 |
from US $1.60 |
||
|
36
|
36
74512-83000-000 WIRE,WATER VALVE CONTROL1993-05-01~1995-09-01 |
74512-83000-000 |
US $10.88 |
||
|
37
|
37
74513-83000-000 WIRE,CIRC/FRESH CONTROL(L:775)1993-05-01~1995-09-01 |
74513-83000-000 |
US $2.13 |
||
|
38
|
38
74514-83000-000 WIRE,ROOM&DEF CONTROL L:5211993-05-01~1995-09-01 |
74514-83000-000 |
US $2.13 |
||
|
39
|
39
82191-50E00-000 GROMMET,LATCH RELEASE CABLE1993-05-01~1995-09-01 |
82191-50E00-000 |
from US $2.16 |
||
