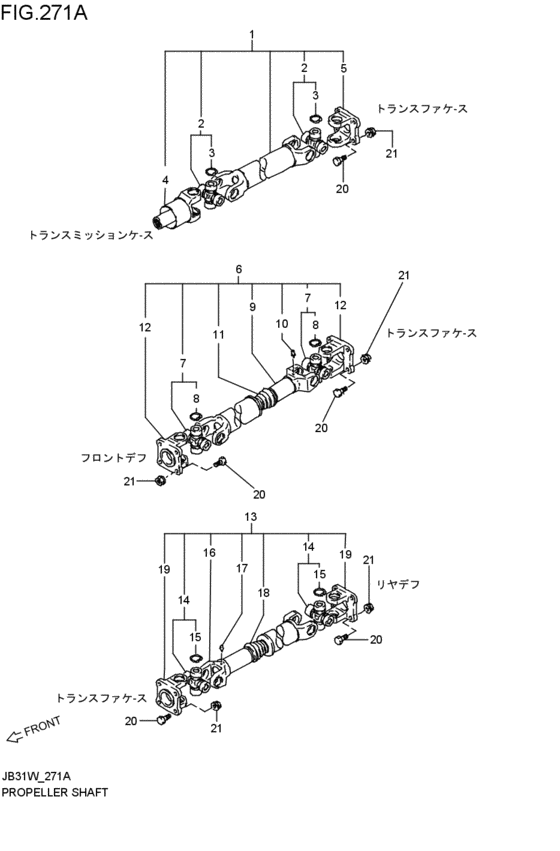

propeller shaft (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-83101-000 SHAFT ASSY,PROPELLER NO.15MT; 1993-05-01~1995-09-01 |
27101-83101-000 |
from US $265.66 |
||
|
2
|
2
27200-83812-000
JOINT SET,UNIVERSAL
1993-05-01~1995-09-01 |
27200-83812-000 |
— | ||
| replacement | |||||
|
2
|
2
27200-83813-000 Joint Set,universal1993-05-01~1995-09-01 |
27200-83813-000 |
from US $56.36 |
||
|
3
|
3
51118-36213-000 RING,SNAP1993-05-01~1995-09-01 |
51118-36213-000 |
from US $1.31 |
||
|
4
|
4
27140-83001-000 YOKE,SLIDING5MT; 1993-05-01~1995-09-01 |
27140-83001-000 |
from US $64.71 |
||
|
5
|
5
27131-56B00-000 YOKE,CROSS JOINT FLANGE1993-05-01~1995-09-01 |
27131-56B00-000 |
from US $47.18 |
||
|
6
|
6
27102-83101-000 SHAFT ASSY,PROPELLER NO.25MT; 1993-05-01~1995-09-01 |
27102-83101-000 |
from US $303.08 |
||
|
7
|
7
27200-83812-000
JOINT SET,UNIVERSAL
1993-05-01~1995-09-01 |
27200-83812-000 |
— | ||
| replacement | |||||
|
7
|
7
27200-83813-000 Joint Set,universal1993-05-01~1995-09-01 |
27200-83813-000 |
from US $56.36 |
||
|
8
|
8
51118-36213-000 RING,SNAP1993-05-01~1995-09-01 |
51118-36213-000 |
from US $1.31 |
||
|
9
|
9
27180-83001-000 YOKE,SLIDING1993-05-01~1995-09-01 |
27180-83001-000 |
from US $60.10 |
||
|
10
|
10
08351-21008-000
Grease nipple
1993-05-01~1995-09-01 |
08351-21008-000 |
— | ||
| replacement | |||||
|
10
|
10
08351-2100A-000 NIPPLE1993-05-01~1995-09-01 |
08351-2100A-000 |
from US $2.40 |
||
|
11
|
11
27153-83001-000
BOOT,PROPELLER SHAFT
1993-05-01~1995-09-01 |
27153-83001-000 |
— | ||
| replacement | |||||
|
11
|
11
27153-77R00-000 Boot,propeller Shaft1993-05-01~1995-09-01 |
27153-77R00-000 |
from US $8.28 |
||
|
12
|
12
27131-56B00-000 YOKE,CROSS JOINT FLANGE1993-05-01~1995-09-01 |
27131-56B00-000 |
from US $47.18 |
||
|
13
|
13
27103-83101-000 SHAFT ASSY,PROPELLER NO.35MT; 1993-05-01~1995-09-01 |
27103-83101-000 |
US $329.76 |
||
|
14
|
14
27200-83812-000
JOINT SET,UNIVERSAL
1993-05-01~1995-09-01 |
27200-83812-000 |
— | ||
| replacement | |||||
|
14
|
14
27200-83813-000 Joint Set,universal1993-05-01~1995-09-01 |
27200-83813-000 |
from US $56.36 |
||
|
15
|
15
51118-36213-000 RING,SNAP1993-05-01~1995-09-01 |
51118-36213-000 |
from US $1.31 |
||
|
16
|
16
27180-83001-000 YOKE,SLIDING1993-05-01~1995-09-01 |
27180-83001-000 |
from US $60.10 |
||
|
17
|
17
08351-21008-000
Grease nipple
1993-05-01~1995-09-01 |
08351-21008-000 |
— | ||
| replacement | |||||
|
17
|
17
08351-2100A-000 NIPPLE1993-05-01~1995-09-01 |
08351-2100A-000 |
from US $2.40 |
||
|
18
|
18
27153-83001-000
BOOT,PROPELLER SHAFT
1993-05-01~1995-09-01 |
27153-83001-000 |
— | ||
| replacement | |||||
|
18
|
18
27153-77R00-000 Boot,propeller Shaft1993-05-01~1995-09-01 |
27153-77R00-000 |
from US $8.28 |
||
|
19
|
19
27131-56B00-000 YOKE,CROSS JOINT FLANGE1993-05-01~1995-09-01 |
27131-56B00-000 |
from US $47.18 |
||
|
20
|
20
01500-10303-000
Bolt
1993-05-01~1995-09-01 |
01500-10303-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-1030A-000 Bolt1993-05-01~1995-09-01 |
01500-1030A-000 |
from US $0.96 |
||
|
21
|
21
09159-10091-000 NUT1993-05-01~1995-09-01 |
09159-10091-000 |
from US $2.09 |
||
