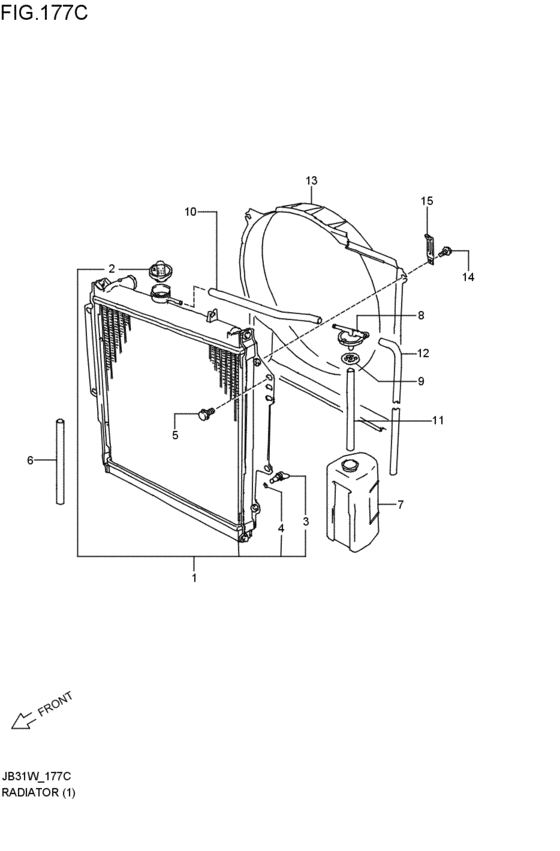

radiator (5MT; 1993-05-01~1993-11-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-83102-000 RADIATOR ASSY5MT; 1993-05-01~1993-11-01 |
17700-83102-000 |
from US $353.32 |
||
|
2
|
2
17920-83101-000 CAP ASSY,RADIATOR 0.95MT; 1993-05-01~1993-11-01 |
17920-83101-000 |
from US $28.40 |
||
|
3
|
3
17751-83100-000 PLUG,DRAIN5MT; 1993-05-01~1993-11-01 |
17751-83100-000 |
from US $4.01 |
||
|
4
|
4
17759-83100-000 GASKET,DRAIN PLUG5MT; 1993-05-01~1993-11-01 |
17759-83100-000 |
from US $2.24 |
||
|
5
|
5
01550-06103-000
Bolt, front
5MT; 1993-05-01~1993-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0610B-000 BoltBolt 5MT; 1993-05-01~1993-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
5
|
5
01550-0610A-000 Bolt5MT; 1993-05-01~1993-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
6
|
6
09351-75111-600 HOSE(7.5X11.5X600)L:600>180; 5MT; 1993-05-01~1993-11-01 |
09351-75111-600 |
from US $2.70 |
||
|
7
|
7
17931-80001-000 TANK,WATER RESERVE5MT; 1993-05-01~1993-11-01 |
17931-80001-000 |
from US $14.81 |
||
|
8
|
8
17932-82001-000 CAP,WATER RESERVOIR TANKCap, water reservoir tank 5MT; 1993-05-01~1993-11-01 |
17932-82001-000 |
from US $9.12 |
||
|
9
|
9
17933-82002-000 RUBBER,WTR RSV TANK CAP5MT; 1993-05-01~1993-11-01 |
17933-82002-000 |
from US $2.13 |
||
|
10
|
10
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>530; 5MT; 1993-05-01~1993-11-01 |
09352-70121-600 |
from US $5.93 |
||
|
11
|
11
09352-70111-600 HOSE(7X11X600)L:600>170; 5MT; 1993-05-01~1993-11-01 |
09352-70111-600 |
from US $6.84 |
||
|
12
|
12
17934-80C00-000 HOSE,WATER RESERVE TANK CAP5MT; 1993-05-01~1993-11-01 |
17934-80C00-000 |
from US $8.46 |
||
|
13
|
13
17761-83101-000
SHROUD,FAN
5MT; 1993-05-01~1993-11-01 |
17761-83101-000 |
— | ||
|
14
|
14
01550-06103-000
Bolt, front
5MT; 1993-05-01~1993-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610B-000 BoltBolt 5MT; 1993-05-01~1993-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
14
|
14
01550-0610A-000 Bolt5MT; 1993-05-01~1993-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
15
|
15
09404-06413-000
Clamp throttle
5MT; 1993-05-01~1993-11-01 |
09404-06413-000 |
— | ||
| replacements | |||||
|
15
|
15
09404-06432-000
CLAMP(L:65)
5MT; 1993-05-01~1993-11-01 |
09404-06432-000 |
— | ||
|
15
|
15
09404-06039-000 Clamp(L:65)5MT; 1993-05-01~1993-11-01 |
09404-06039-000 |
from US $1.82 |
||
