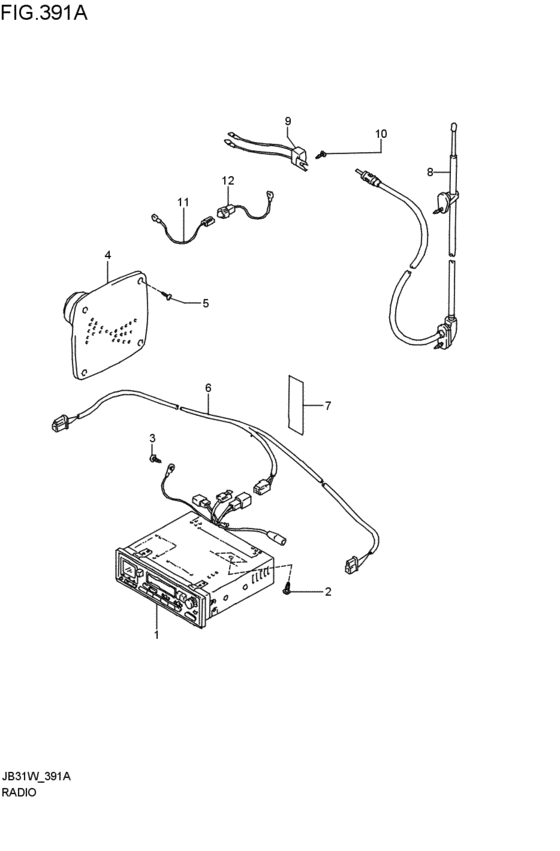

radio (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-51B90-000
チューナアッシ(AM/FM,カセット)
1993-05-01~1995-09-01 |
39101-51B90-000 |
— | ||
|
2
|
2
03241-05163-000
Screw, bracket
1993-05-01~1995-09-01 |
03241-05163-000 |
— | ||
| replacement | |||||
|
2
|
2
03241-0516A-000 SCREW1993-05-01~1995-09-01 |
03241-0516A-000 |
from US $0.76 |
||
|
3
|
3
03111-06123-000
スクリュ
1993-05-01~1995-09-01 |
03111-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
03111-0612A-000 SCREW1993-05-01~1995-09-01 |
03111-0612A-000 |
US $0.80 |
||
|
4
|
4
39102-82C00-000
スピーカアッシ
CLARION; 1993-05-01~1995-09-01 |
39102-82C00-000 |
— | ||
|
5
|
5
03141-04163-000
Screw, upper
1993-05-01~1995-09-01 |
03141-04163-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0416A-000 SCREW1993-05-01~1995-09-01 |
03141-0416A-000 |
from US $0.96 |
||
|
6
|
6
36855-60A20-000
Wire,speaker
1993-05-01~1995-09-01 |
36855-60A20-000 |
— | ||
|
7
|
7
36930-82010-000 COVER,HARNESSCover, roof wire 1993-05-01~1995-09-01 |
36930-82010-000 |
from US $1.51 |
||
|
8
|
8
39250-80C00-000
ANTENNA ASSY
CLARION; 1993-05-01~1995-09-01 |
39250-80C00-000 |
— | ||
| replacement | |||||
|
8
|
8
39250-80C10-000 ANTENNA ASSYCLARION; 1993-05-01~1995-09-01 |
39250-80C10-000 |
from US $43.20 |
||
|
9
|
9
33551-60A10-000 CONDENSER,NOISE SUPPR1993-05-01~1995-09-01 |
33551-60A10-000 |
from US $6.23 |
||
|
10
|
10
03141-06123-000
Screw 6x12
1993-05-01~1995-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0612A-000 SCREW1993-05-01~1995-09-01 |
03141-0612A-000 |
US $0.76 |
||
|
11
|
11
39312-60B20-000 WIRE,NOISE SUPPR NO.11993-05-01~1995-09-01 |
39312-60B20-000 |
US $2.72 |
||
|
12
|
12
39312-60B11-000
WIRENOISE SUPPRNO1
1993-05-01~1995-09-01 |
39312-60B11-000 |
— | ||
| replacement | |||||
|
12
|
12
39312-60G00-000 WIRE,NOISE SUPPR1993-05-01~1995-09-01 |
39312-60G00-000 |
from US $3.44 |
||
