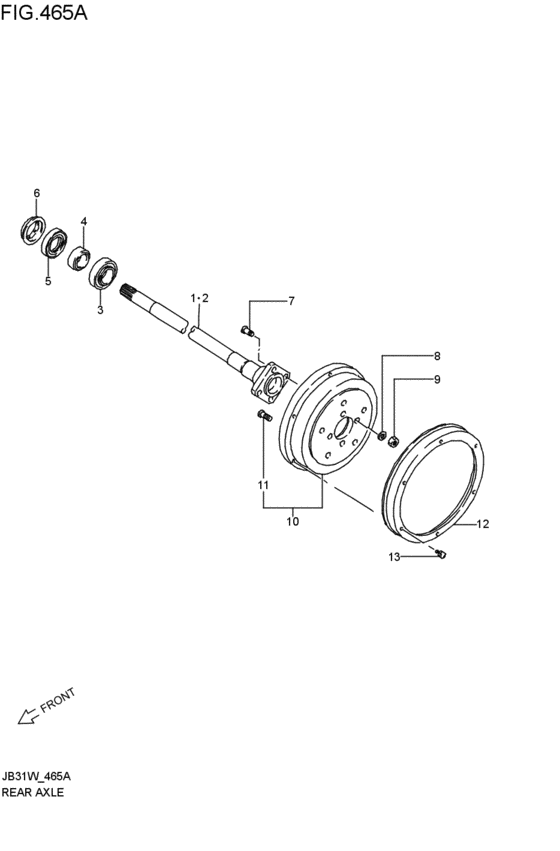

rear axle (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44211-70A00-000
SHAFT REAR AXLE RH
1993-05-01~1995-09-01 |
44211-70A00-000 |
— | ||
| replacement | |||||
|
1
|
1
44210-70AV0-000 SHAFT ASSY,REAR AXLE,R1993-05-01~1995-09-01 |
44210-70AV0-000 |
from US $153.05 |
||
|
2
|
2
44221-70A00-000
SHAFT ASSY REAR AXLE LH
1993-05-01~1995-09-01 |
44221-70A00-000 |
— | ||
| replacement | |||||
|
2
|
2
44220-70AV0-000 SHAFT ASSY,REAR AXLE,L1993-05-01~1995-09-01 |
44220-70AV0-000 |
from US $202.40 |
||
|
3
|
3
09269-35009-000 BEARING(35X72X22)1993-05-01~1995-09-01 |
09269-35009-000 |
from US $40 |
||
|
4
|
4
43485-73000-000 RING,RR WHEEL BRG RETAINER1993-05-01~1995-09-01 |
43485-73000-000 |
from US $8.51 |
||
|
5
|
5
09283-48007-000 SEAL,OIL(48X62X9)1993-05-01~1995-09-01 |
09283-48007-000 |
from US $3.65 |
||
|
6
|
6
43588-73000-000 PROTECTOR,OIL SEAL1993-05-01~1995-09-01 |
43588-73000-000 |
from US $1.52 |
||
|
7
|
7
09119-12007-000 Bolt1993-05-01~1994-04-01 |
09119-12007-000 |
from US $1.44 |
||
|
7
|
7
09119-12012-000 BOLT(12X38)1994-04-01~1995-09-01 |
09119-12012-000 |
from US $1.13 |
||
|
8
|
8
08321-01123-000
Washer
1993-05-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK1993-05-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
08310-00123-000
Nut
1993-05-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT1993-05-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
43500-83810-000
Drum set,rear brake
1993-05-01~1995-09-01 |
43500-83810-000 |
— | ||
| replacement | |||||
|
10
|
10
43500-83811-000 DRUM SET,RR BRAKE1993-05-01~1995-09-01 |
43500-83811-000 |
from US $139.14 |
||
|
11
|
11
09119-12007-000 Bolt1993-05-01~1995-09-01 |
09119-12007-000 |
from US $1.44 |
||
|
12
|
12
43521-83003-000 COVER,BRAKE DRUM DUST1993-05-01~1995-09-01 |
43521-83003-000 |
US $50.40 |
||
|
13
|
13
02112-36103-000
Screw
1993-05-01~1995-09-01 |
02112-36103-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-3610A-000 SCREW1993-05-01~1995-09-01 |
02112-3610A-000 |
US $0.76 |
||
