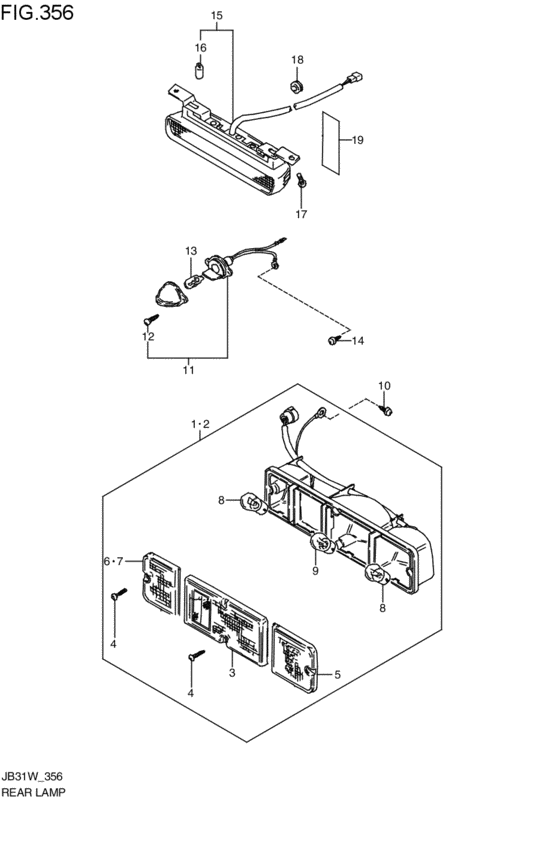

rear lamp (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-80013-000 LAMP ASSY,RR COMB,R1993-05-01~1995-09-01 |
35603-80013-000 |
US $115.55 |
||
|
2
|
2
35604-80013-000 LAMP ASSY,RR COMB,L1993-05-01~1995-09-01 |
35604-80013-000 |
US $115.55 |
||
|
3
|
3
35712-80011-000 LENS,TAIL/STOP1993-05-01~1995-09-01 |
35712-80011-000 |
US $20.24 |
||
|
4
|
4
03112-05253-000
スクリュ
1993-05-01~1995-09-01 |
03112-05253-000 |
— | ||
| replacement | |||||
|
4
|
4
03112-0525B-000 SCREW1993-05-01~1995-09-01 |
03112-0525B-000 |
US $0.96 |
||
|
5
|
5
35662-80000-000 LENS,TURN SIGNAL[AMBER] 1993-05-01~1995-09-01 |
35662-80000-000 |
from US $9.25 |
||
|
6
|
6
36252-80000-000 LENS,BACKUP,RH[CLEAR] 1993-05-01~1995-09-01 |
36252-80000-000 |
from US $10.22 |
||
|
7
|
7
36272-80000-000 LENS,BACKUP,LH[CLEAR] 1993-05-01~1995-09-01 |
36272-80000-000 |
from US $8.21 |
||
|
8
|
8
09471-12045-000 BULB(12V21W)1993-05-01~1995-09-01 |
09471-12045-000 |
from US $3.11 |
||
|
9
|
9
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 1993-05-01~1995-09-01 |
09471-12083-000 |
from US $4.52 |
||
| replacement | |||||
|
9
|
9
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 1993-05-01~1995-09-01 |
09471-12128-000 |
from US $7.20 |
||
|
10
|
10
09139-05028-000 SCREW(5X14)1993-05-01~1995-09-01 |
09139-05028-000 |
from US $0.79 |
||
|
11
|
11
35910-80011-999
LAMP ASSY LICENCE
ブラック; 1993-05-01~1995-09-01 |
35910-80011-999 |
— | ||
| replacement | |||||
|
11
|
11
35910-80011-000 Lamp assy,licenseブラック; 1993-05-01~1995-09-01 |
35910-80011-000 |
from US $25.94 |
||
|
12
|
12
03112-04163-000
Screw
1993-05-01~1995-09-01 |
03112-04163-000 |
— | ||
| replacement | |||||
|
12
|
12
03111-0416A-000 SCREW1993-05-01~1995-09-01 |
03111-0416A-000 |
US $0.80 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1993-05-01~1995-09-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1993-05-01~1995-09-01 |
09471-12216-000 |
from US $3.02 |
||
|
14
|
14
09139-05028-000 SCREW(5X14)1993-05-01~1995-09-01 |
09139-05028-000 |
from US $0.79 |
||
|
15
|
15
35810-80C00-000
ランプアッシ,ハイマウントストップ
1993-05-01~1995-09-01 |
35810-80C00-000 |
— | ||
|
16
|
16
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1993-05-01~1995-09-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
16
|
16
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1993-05-01~1995-09-01 |
09471-12216-000 |
from US $3.02 |
||
|
17
|
17
09129-06002-000 SCREW(6X12)1993-05-01~1995-09-01 |
09129-06002-000 |
from US $0.16 |
||
|
18
|
18
09308-06003-000 GROMMET1993-05-01~1995-09-01 |
09308-06003-000 |
US $16.20 |
||
|
19
|
19
36930-82010-000 COVER,HARNESSCover, roof wire 1993-05-01~1995-09-01 |
36930-82010-000 |
from US $1.51 |
||
