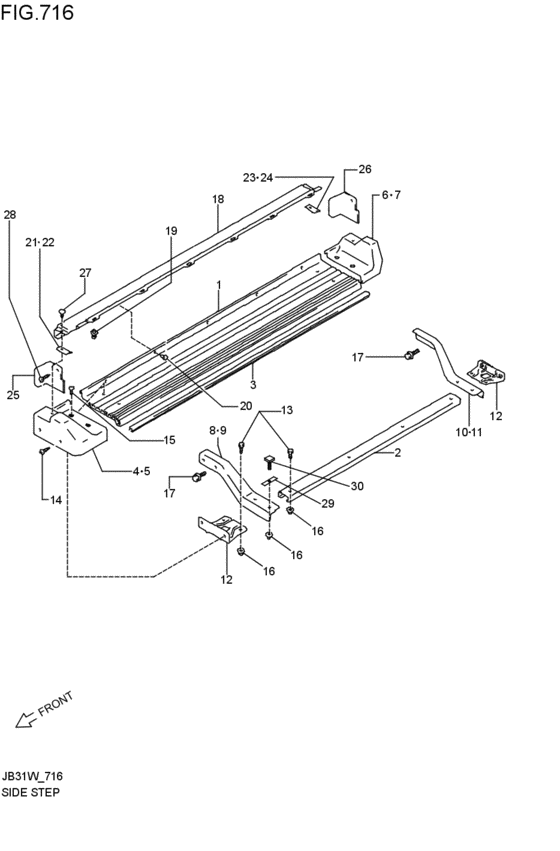

side step (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71671-82C00-000
ステップ,サイド
1993-05-01~1993-11-01 |
71671-82C00-000 |
— | ||
| replacements | |||||
|
1
|
1
01500-0616A-000 Bolt1993-05-01~1993-11-01 |
01500-0616A-000 |
from US $0.76 |
||
|
1
|
1
71671-82C01-000
Step,side
1993-05-01~1993-11-01 |
71671-82C01-000 |
— | ||
|
1
|
1
71673-82C01-000
モールディング,サイドステップ
1993-05-01~1993-11-01 |
71673-82C01-000 |
— | ||
|
1
|
1
01500-06163-000
Bolt
1993-05-01~1993-11-01 |
01500-06163-000 |
— | ||
|
1
|
1
71671-82C01-000
Step,side
1993-11-01~1995-09-01 |
71671-82C01-000 |
— | ||
|
2
|
2
71672-82C00-000
フレーム,サイドステップ
1993-05-01~1995-09-01 |
71672-82C00-000 |
— | ||
|
3
|
3
71673-82C00-000
モールディング,サイドステップ
1993-05-01~1993-11-01 |
71673-82C00-000 |
— | ||
|
3
|
3
71673-82C01-000
モールディング,サイドステップ
1993-11-01~1995-09-01 |
71673-82C01-000 |
— | ||
|
4
|
4
71674-82C00-000
PROTECTOR,SIDE STEP NO.1
RH; 1993-05-01~1995-09-01 |
71674-82C00-000 |
— | ||
|
5
|
5
71675-82C00-000
PROTECTOR,SIDE STEP NO.2
LH; 1993-05-01~1995-09-01 |
71675-82C00-000 |
— | ||
|
6
|
6
71675-82C00-000
PROTECTOR,SIDE STEP NO.2
RH; 1993-05-01~1995-09-01 |
71675-82C00-000 |
— | ||
|
7
|
7
71674-82C00-000
PROTECTOR,SIDE STEP NO.1
LH; 1993-05-01~1995-09-01 |
71674-82C00-000 |
— | ||
|
8
|
8
71676-82C00-000
ステー,サイドステップフロント,ライト
1993-05-01~1995-09-01 |
71676-82C00-000 |
— | ||
|
9
|
9
71686-82C00-000
ステー,サイドステップフロント,レフト
1993-05-01~1995-09-01 |
71686-82C00-000 |
— | ||
|
10
|
10
71677-82C00-000
ステー,サイドステップリヤ,ライト
1993-05-01~1995-09-01 |
71677-82C00-000 |
— | ||
|
11
|
11
71687-82C00-000
ステー,サイドステップリヤ,レフト
1993-05-01~1995-09-01 |
71687-82C00-000 |
— | ||
|
12
|
12
71678-82C00-000
ステー,サイドステッププロテクタ
1993-05-01~1995-09-01 |
71678-82C00-000 |
— | ||
|
13
|
13
01570-06163-000
Bolt
1993-05-01~1995-09-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0616B-000 Bolt1993-05-01~1995-09-01 |
01570-0616B-000 |
from US $0.80 |
||
|
13
|
13
01570-0616A-000 Bolt1993-05-01~1995-09-01 |
01570-0616A-000 |
from US $0.96 |
||
|
14
|
14
02142-06163-000
Screw
1993-05-01~1995-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0616A-000 SCREW1993-05-01~1995-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
15
|
15
03141-06123-000
Screw 6x12
1993-05-01~1995-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
15
|
15
03141-0612A-000 SCREW1993-05-01~1995-09-01 |
03141-0612A-000 |
US $0.76 |
||
|
16
|
16
08316-10063-000
Nut
1993-05-01~1995-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1006B-000 NUT1993-05-01~1995-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
01550-08123-000
Bolt
1993-05-01~1995-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0812B-000 BoltPlug, drain 1993-05-01~1995-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
17
|
17
01550-0812A-000 Bolt1993-05-01~1995-09-01 |
01550-0812A-000 |
from US $0.91 |
||
|
18
|
18
77612-82C01-000
Protector,side sill lower
1993-05-01~1995-09-01 |
77612-82C01-000 |
— | ||
|
19
|
19
09409-07303-5ES CLIP(BLACK)ブラック; 1993-05-01~1995-09-01 |
09409-07303-5ES |
from US $1.52 |
||
|
20
|
20
09409-05311-000
CLIP
1993-05-01~1995-09-01 |
09409-05311-000 |
— | ||
|
21
|
21
71695-82C00-000
パッド,プロテクタ,NO.1
RH; 1993-05-01~1994-01-01 |
71695-82C00-000 |
— | ||
|
22
|
22
71696-82C00-000
パッド,プロテクタ,NO.2
LH; 1993-05-01~1994-01-01 |
71696-82C00-000 |
— | ||
|
23
|
23
71696-82C00-000
パッド,プロテクタ,NO.2
RH; 1993-05-01~1994-01-01 |
71696-82C00-000 |
— | ||
|
24
|
24
71695-82C00-000
パッド,プロテクタ,NO.1
LH; 1993-05-01~1994-01-01 |
71695-82C00-000 |
— | ||
|
25
|
25
71697-82C00-000
フラップ,サイドステップ,フロント
1993-05-01~1994-01-01 |
71697-82C00-000 |
— | ||
|
26
|
26
71698-82C00-000
フラップ,サイドステップ,リヤ
1993-05-01~1994-01-01 |
71698-82C00-000 |
— | ||
|
27
|
27
09409-10303-5ES CLIP(BLACK)ブラック; 1993-05-01~1995-09-01 |
09409-10303-5ES |
US $14.40 |
||
|
28
|
28
09136-06116-000
スクリュ,6X16
1993-05-01~1994-01-01 |
09136-06116-000 |
— | ||
| replacement | |||||
|
28
|
28
09136-06116-XC0
SCREW(6X16)
1993-05-01~1994-01-01 |
09136-06116-XC0 |
— | ||
|
29
|
29
71679-82C00-000 PLATE1993-05-01~1995-09-01 |
71679-82C00-000 |
US $3.72 |
||
|
30
|
30
09105-06007-000 BOLT(6X12)1993-05-01~1993-11-01 |
09105-06007-000 |
US $16.90 |
||
|
30
|
30
01500-06163-000
Bolt
1993-11-01~1995-09-01 |
01500-06163-000 |
— | ||
