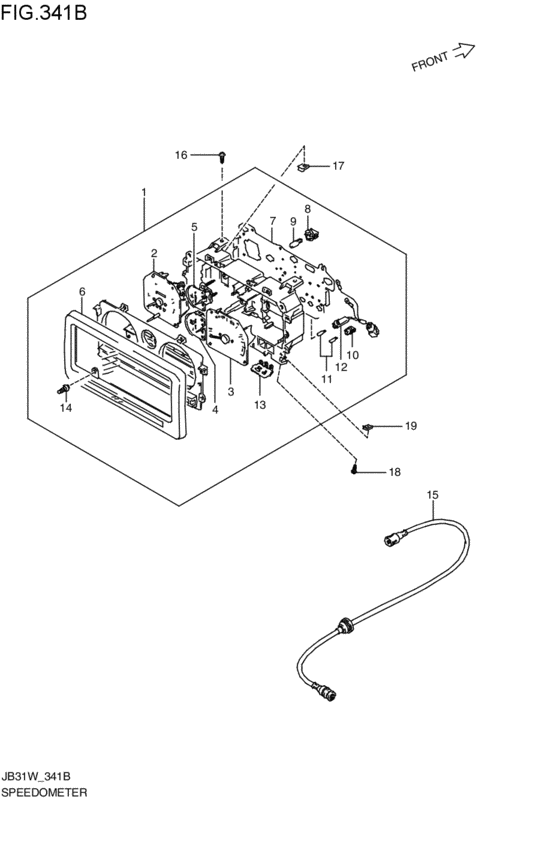

speed meter (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-81C71-000
スピードメータアッシ,コンビネーション
5MT; 1993-05-01~1995-09-01 |
34100-81C71-000 |
— | ||
|
2
|
2
34120-82C62-000
ボディアッシ,スピードメータ
1993-05-01~1995-09-01 |
34120-82C62-000 |
— | ||
|
3
|
3
34220-70A00-000
BODY ASSY,TACHOMETER
1993-05-01~1995-09-01 |
34220-70A00-000 |
— | ||
|
4
|
4
34320-70A00-000 BODY ASSY,FUEL METER1993-05-01~1995-09-01 |
34320-70A00-000 |
from US $9.16 |
||
|
5
|
5
34420-70A00-000 BODY ASSY,TEMP METER5MT; 1993-05-01~1995-09-01 |
34420-70A00-000 |
from US $39.20 |
||
|
6
|
6
34113-70A01-000 GLASS,FR1993-05-01~1995-09-01 |
34113-70A01-000 |
US $110.96 |
||
|
7
|
7
34152-82C60-000
プレート,プリンテッド
1993-05-01~1995-09-01 |
34152-82C60-000 |
— | ||
|
8
|
8
34172-50E10-000 SOCKET1993-05-01~1995-09-01 |
34172-50E10-000 |
from US $1.60 |
||
|
9
|
9
09471-12028-000 BULB(12V3.4W,T10)STANLEY,WB125; 1993-05-01~1995-09-01 |
09471-12028-000 |
from US $1.98 |
||
|
10
|
10
34175-78900-000 SOCKETブラック; 1993-05-01~1995-09-01 |
34175-78900-000 |
from US $1.52 |
||
|
11
|
11
09471-12055-000 BULB(14V1.4W,T5)1993-05-01~1995-09-01 |
09471-12055-000 |
from US $2.12 |
||
|
12
|
12
34165-82C60-000
ワイヤ
1993-05-01~1995-09-01 |
34165-82C60-000 |
— | ||
|
13
|
13
34155-82C60-000
プレート,ヒートウォーニング
1993-05-01~1995-09-01 |
34155-82C60-000 |
— | ||
|
14
|
14
34145-80200-000 COVER,TRIP METER NOB1993-05-01~1995-09-01 |
34145-80200-000 |
from US $2.24 |
||
|
15
|
15
34910-80C21-000 CABLE ASSY,SPEEDOMETER1993-05-01~1995-09-01 |
34910-80C21-000 |
from US $31.16 |
||
|
16
|
16
03121-05163-000
Screw
1993-05-01~1995-09-01 |
03121-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03121-0516A-000 SCREW1993-05-01~1995-09-01 |
03121-0516A-000 |
from US $0.96 |
||
|
17
|
17
09148-05005-000 NUT1993-05-01~1995-09-01 |
09148-05005-000 |
US $1.28 |
||
|
18
|
18
03141-05163-000
Screw
1993-05-01~1995-09-01 |
03141-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0516A-000 SCREW1993-05-01~1995-09-01 |
03141-0516A-000 |
from US $0.80 |
||
|
19
|
19
09148-05013-000 NUT1993-05-01~1995-09-01 |
09148-05013-000 |
from US $0.36 |
||
